Model No. DCS4630

Engine Chain Saw

Power Tool 04 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
115	MK181160660 Available to backorder	Starter Assy Blue	£112.96 £94.13
117	MK980115500 Available to backorder	Label Dcs4630	£7.96 £6.63
124	MK181163020 Available to backorder	Rewind Spring In Housing	£8.62 £7.18
126	MK913455204 Available to backorder	H.L.Tapping Screw 5.5x20	£0.54 £0.45
127	MK181118120 Available to backorder	Air Guide Plate	£8.20 £6.83
128	MK181143212 Available to backorder	Ignition Coil Complete	£138.14 £115.12
128	MK181143213 Available to backorder	Ignition Coil Complete (Alt.)	£108.04 £90.03
128	MK181143210 Available to backorder	Ignition Coil Complete	£134.32 £111.93
128	MK181143214 Available to backorder	Ignition Coil Complete (Alt.)	£102.10 £85.08
129	MK181147050 Available to backorder	Ignition Cable	£5.60 £4.67
130	MK195143031 Available to backorder	Isolation Washer	£1.10 £0.92
130	MK451462-9 Available to backorder	Isolating Washer (Alt.)	£1.10 £0.92
131	MK970502110 Available to backorder	Insulating Tube 6 L 1M	£5.18 £4.32
131	MK970502120 Available to backorder	Insulating Tube (Alt.)	£7.52 £6.27
132	MK957604260 Available to backorder	Plug Cap Complete	£2.06 £1.72
133	2134 In stock	Spark Plug (Bpmr7A)	£2.26 £1.88
134	MK266472-1 Available to backorder	Torx Socket Head Bolt M5x20	£1.44 £1.20
135	MK264107-8 Available to backorder	Hexagonal Nut M8 (Alt.)	£0.48 £0.40
136	MK926208001 Available to backorder	Spring Washer 8	£0.48 £0.40
137	MK181141104 Available to backorder	Flywheel Assy.	£197.21 £164.34
140	MK181245251 Available to backorder	Oil Pump Cpl.	£108.38 £90.32
143	MK181245120 Available to backorder	Oil Line	£12.98 £10.82
143	MK424178-9 Available to backorder	Oil Tube (Alt.)	£8.06 £6.72
145	MK144274-4 Available to backorder	Tube Complete	£13.74 £11.45
146	MK231975-4 Available to backorder	Spring	£0.48 £0.40
147	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
149	MK266484-4 Available to backorder	H.L Socket Head Bolt M5x12	£0.48 £0.40
149	MK908705125 Available to backorder	H.L. Socket Head Bolt M5x12	£1.78 £1.48
150	MK450956-1 Available to backorder	Pump Drive (Alt.)	£11.56 £9.63
151	MK267389-1 Available to backorder	Flat Washer 12	£1.02 £0.85
152	MK127443-2 Available to backorder	Clutch Assembly (Alt.)	£10.52 £8.77
152	MK181180300 Available to backorder	Clutch Assy	£31.26 £26.05

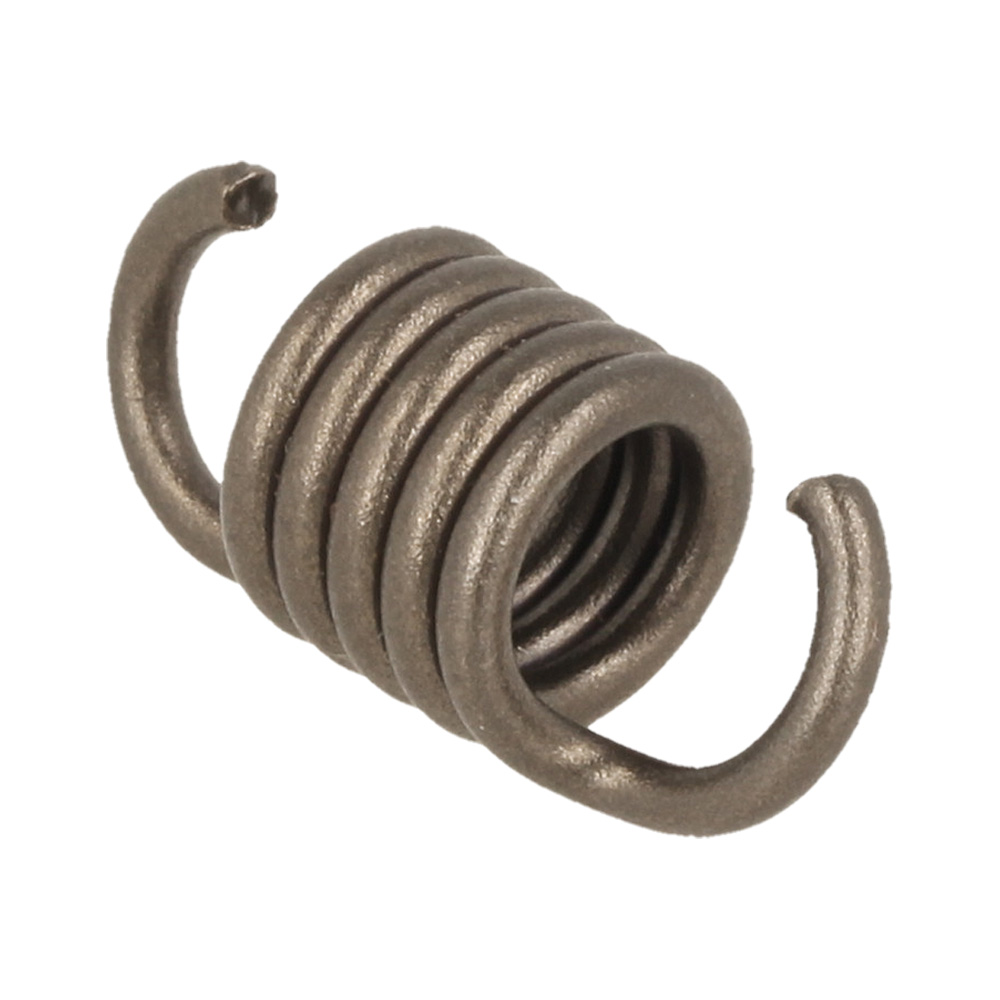

153	MK232352-3 Available to backorder	Tension Spring 6	£0.86 £0.72
154	MK181224090 Available to backorder	Flat Washer 10	£0.54 £0.45
155	MK181213011 Available to backorder	Brake Band	£4.52 £3.77
156	MK144765-5 Available to backorder	Clutch Drum Complete (Alt.)	£54.02 £45.02
157	MK212082-2 Available to backorder	Needle Bearing 1012 (Alt.)	£7.92 £6.60
158	MK026224010 Available to backorder	Rim Sprocket 3/8" Sm7-7	£6.56 £5.47
158	MK181224040 Available to backorder	Rim Sprocket .325" Sm7-7	£11.34 £9.45
159	MK267820-7 Available to backorder	Washer 29 (Alt.)	£1.16 £0.97
160	MK259045-7 Available to backorder	Stop Ring E-8 (Alt.)	£0.48 £0.40
161	MK257934-0 Available to backorder	Stop Ring E-4 (Alt.)	£0.48 £0.40
162	MK185213100 Available to backorder	Break Link Plate Complete	£8.08 £6.73
163	MK231870-8 Available to backorder	Tension Spring 10 (Alt.)	£1.32 £1.10
164	MK450926-0 Available to backorder	Stopper Case (Alt.)	£1.10 £0.92
164	MK181213170 Available to backorder	Handguard Guide Cpl.	£13.26 £11.05
165	MK181213371 Available to backorder	Foam Sponge	£4.10 £3.42
167	MK181213161 Available to backorder	Hand Guard Cpl.	£18.84 £15.70
168	MK810449-4 Available to backorder	Caution Label	£0.48 £0.40
169	MK181213310 Available to backorder	Spacer	£2.18 £1.82
170	MK325604-0 Available to backorder	Bush (Alt.)	£1.32 £1.10
174	MK181213400 Available to backorder	Foam Sponge	£3.70 £3.08
175	MK957213600 Available to backorder	Sprocket Guard	£19.26 £16.05
176	MK252145-2 Available to backorder	Collared Hex Nut M8 (Alt.)	£0.74 £0.62
177	MK957213220 Available to backorder	Chip Guide	£5.74 £4.78
178	MK181213191 Available to backorder	Cover	£10.92 £9.10
179	MK266477-1 Available to backorder	H.L. C.S. Head Screw M5x12 (Alt.)	£0.48 £0.40
182	MK181160670 Available to backorder	Starter Assy. Blue	£109.90 £91.58
183	MK181112660 Available to backorder	Starter Housing Blue	£34.82 £29.02
184	MK456685-4 Available to backorder	Air Guide Plate (Alt.)	£3.96 £3.30
185	MK181164010 Available to backorder	Starter Grip	£5.04 £4.20
186	MK266942-0 Available to backorder	H.L. Socket Head Bolt M5x20	£0.54 £0.45
187	MK140587-1 In stock	Rewind Spring Complete	£13.55 £11.29
188	MK452224-8 Available to backorder	Cable Drum (Alt.)	£23.68 £19.73
189	MK234193-3 Available to backorder	Spring Easy Start	£7.57 £6.31
190	MK181163090 Available to backorder	Starter Wheel	£3.82 £3.18
190	MK452227-2 Available to backorder	Driver Easy Start (Alt.)	£7.38 £6.15
191	MK266616-3 Available to backorder	Screw (Alt.)	£1.74 £1.45
194	MK143331-5 Available to backorder	Flywheel Complete	£36.56 £30.47
195	MK181166100 Available to backorder	Starter Ratchet Cp (2Pcs Each)	£8.96 £7.47
200	MK181153100 Available to backorder	Carburetor	£209.56 £174.63
204	MK181153040 Available to backorder	Diaphragm Cover	£6.28 £5.23
205	MKZJ00000014 Available to backorder	Screw (With Serration)	£0.48 £0.40
206	MK181153020 Available to backorder	Set Diaphragm/Gaskets	£23.90 £19.92
207	MK181153050 Available to backorder	Pump Diaphragm Teflon	£5.60 £4.67
208	MK038153210 Available to backorder	Locking Ball	£2.34 £1.95
209	MK181153070 Available to backorder	Idle Stop Screw	£9.24 £7.70
210	MK036153040 Available to backorder	Screen	£3.42 £2.85
211	MK957153090 Available to backorder	Kit Throttle Shaft	£29.36 £24.47
212	MK957153080 Available to backorder	Kit Choke Shaft	£35.98 £29.98
213	MK957153070 Available to backorder	Control Parts	£26.20 £21.83
215	MK181153180 Available to backorder	Idle Adjustment Screw	£19.26 £16.05
216	MK181153190 Available to backorder	Main Adjustment Screw	£19.26 £16.05
217	MK181153220 Available to backorder	Washer	£3.76 £3.13
224	MK181153110 Available to backorder	Spring	£2.34 £1.95
225	MK181153160 Available to backorder	Spring	£3.96 £3.30
226	MK181153210 Available to backorder	Plug-Welch	£2.46 £2.05
230	MK038155012 Available to backorder	Retaining Clip	£1.92 £1.60
231	MK965402995 Available to backorder	Gasket	£1.92 £1.60
250	MK181153301 Available to backorder	Carburettor	£209.56 £174.63
251	MK181153261 Available to backorder	Idle Adjustment Screw L (Dd)	£4.36 £3.63
252	MK181153271 Available to backorder	Main Adjustment Screw H (Dd)	£4.36 £3.63
255	MK181153031 Available to backorder	Pump Cover	£22.66 £18.88
256	MK181153021 Available to backorder	Diaphragm & Gaskets	£18.72 £15.60
257	MK181153560 Available to backorder	Rebuild Kit	£29.36 £24.47
258	MK181153570 Available to backorder	Kit Throttle Shaft	£18.72 £15.60
259	MK181153580 Available to backorder	Kit Choke Shaft	£25.12 £20.93
263	MK234358-7 Available to backorder	Terminal Spring (Alt.)	£0.48 £0.40
