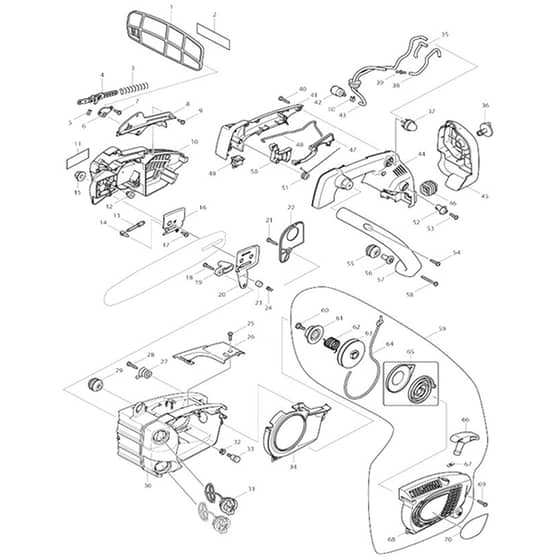

Makita DCS232T - Engine Chain Saw 250mm - Power Tool 01 Diagram

Description

Model No. DCS232T

Engine Chain Saw 250mm

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK154650-4 Available to backorder	Front Hand Guard Complete (INC. 2)	£6.12 £5.10
2	MK810075-9 Available to backorder	Caution Label	£1.66 £1.38
3	MK233175-2 Available to backorder	Compression Spring 9	£1.03 £0.86
4	MK163448-8 Available to backorder	Link Plate Complete	£4.80 £4.00
5	MK231298-0 Available to backorder	Compression Spring 6	£0.48 £0.40
6	MK418715-9 Available to backorder	Hand Guard Cover	£1.39 £1.16
7	MK266020-6 Available to backorder	Binding Head Tapping Screw 4x12 (Refs 009 \| 017)	£0.48 £0.40
8	MK418736-1 Available to backorder	Spring Cover	£2.38 £1.98
12	MK226590-7 Available to backorder	Helical Gear 17	£12.84 £10.70
13	MK226534-7 Available to backorder	Helical Gear 8	£11.76 £9.80
14	MK324464-7 Available to backorder	Adjust Pin	£0.89 £0.74
15	MK252145-2 Available to backorder	Collared Hex. Nut M8	£0.89 £0.74
16	MK345653-1 Available to backorder	Chain Slider R	£0.89 £0.74
18	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 021 \| 028 \| 040 \| 054 \| 069)	£0.48 £0.40
19	MK418710-9 Available to backorder	Chain Catcher	£1.73 £1.44
20	MK345652-3 Available to backorder	Chain Slider L	£1.03 £0.86
22	MK418707-8 Available to backorder	Oil Pump Cover	£1.39 £1.16
23	MK421877-4 Available to backorder	Sponge 10	£0.48 £0.40
24	MK421298-0 Available to backorder	Check Valve	£3.60 £3.00
25	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
26	MK418734-5 Available to backorder	Top Cover	£1.74 £1.45
27	MK324477-8 Available to backorder	Damper Spring	£1.74 £1.45
29	MK421874-0 Available to backorder	Rubber Vibration Isolator	£1.39 £1.16
30	MK153918-5 Available to backorder	Housing Complete	£38.88 £32.40
31	MK168399-0 Available to backorder	Tank Cap Complete	£2.83 £2.36
31	MK213355-6 Available to backorder	O-Ring 25 (C10)	£1.63 £1.36
31	MK168508-1 Available to backorder	Tank Cap Complete (Alt.)	£2.83 £2.36
32	MK421875-8 Available to backorder	Grommet	£0.70 £0.58
33	MK168396-6 Available to backorder	Breather	£5.28 £4.40
34	MK418700-2 Available to backorder	Baffle Plate	£2.38 £1.98
35	MK422036-3 Available to backorder	Tube 3-70	£0.70 £0.58
36	MK271422-3 Available to backorder	Knob 28	£1.32 £1.10
37	MK168398-2 In stock	Primer Pump	£7.67 £6.39
41	MK418696-7 Available to backorder	Top Handle Cover	£5.28 £4.40
42	MK163447-0 In stock	Gasoline Filter	£2.64 £2.20
43	MK168491-2 Available to backorder	Tube Complete	£11.40 £9.50
44	MK418695-9 Available to backorder	Top Handle	£10.56 £8.80
45	MK418703-6 Available to backorder	Cleaner Case Cover	£2.38 £1.98
46	MK421872-4 Available to backorder	Air Duct	£0.70 £0.58
47	MK418706-0 Available to backorder	Lock Off Lever	£1.74 £1.45
48	MK324468-9 Available to backorder	Rod	£0.70 £0.58
49	MK651525-3 Available to backorder	Switch Sle6A2-Gg-31	£3.60 £3.00
50	MK419362-9 Available to backorder	Throttle Lever	£1.73 £1.44
51	MK231672-2 Available to backorder	Torsion Spring 11	£0.70 £0.58
52	MK418708-6 Available to backorder	Choke Lever	£1.03 £0.86
56	MK418709-4 Available to backorder	Buffer Cap	£1.39 £1.16
57	MK418704-4 Available to backorder	Side Handle	£10.56 £8.80
58	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.70 £0.58
59	MK125260-4 Available to backorder	Recoil Starter Assembly (INC. 60-68)	£33.96 £28.30
60	MKSG00000005 Available to backorder	Set Screw A60701200080	£1.73 £1.44
61	MKSG00000004 Available to backorder	Cam Plate A54308180700	£2.83 £2.36
62	MKSG00000003 Available to backorder	Damper Spring A52408180700	£5.88 £4.90
63	MKSG00000001 Available to backorder	Reel A54108100300	£3.84 £3.20
64	MKSG00000007 Available to backorder	Starter Rope A57110860000	£1.90 £1.58
65	MKSG00000002 Available to backorder	Spring Ass'y A20403720201	£11.40 £9.50
66	MKSG00000008 Available to backorder	Starter Knob A5720A20000	£3.12 £2.60
67	MKSG00000009 Available to backorder	Rope Stopper A57302611810	£0.70 £0.58
68	MK163450-1 Available to backorder	Starter Case Complete	£8.40 £7.00
