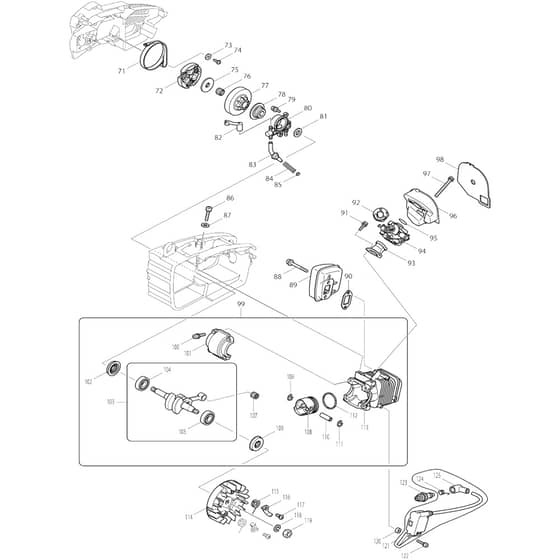

Makita DCS232T - Chainsaw - Clutch Diagram

Name: Makita DCS232T - Chainsaw - Clutch Diagram
SKU: dcs232t_chainsaw_clutch-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DCS232T - Chainsaw - Clutch Diagram

Description

Model No. DCS232T

Chainsaw

Clutch Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
71	MK345454-7 Available to backorder	Brake Band	£7.66 £6.38
72	MK168391-6 Available to backorder	Clutch Complete	£13.58 £11.32
73	MK267195-4 Available to backorder	Flat Washer 4	£1.16 £0.97
74	MK266020-6 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
75	MK267284-5 Available to backorder	Flat Washer 8	£0.58 £0.48
76	MK212077-5 Available to backorder	Needle Cage 101310	£4.67 £3.89
77	MK165393-3 Available to backorder	Clutch Drum Complete	£17.74 £14.78
77	MK165405-2 Available to backorder	Clutch Drum Complete	£21.17 £17.64
78	MK221422-3 Available to backorder	Worm Gear	£5.06 £4.22
79	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
80	MK168393-2 Available to backorder	Oil Pump	£32.80 £27.33
81	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
82	MK421873-2 Available to backorder	Connector	£1.32 £1.10
83	MK421876-6 Available to backorder	Oil Tube	£0.48 £0.40
84	MK231975-4 Available to backorder	Spring	£0.48 £0.40
85	MK416274-7 Available to backorder	Cap	£0.48 £0.40
86	MK922231-0 Available to backorder	Hex. Socket Head Bolt M5x20 W	£0.58 £0.48
87	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
88	MK266354-7 Available to backorder	Hex. Socket Flange Head Bolt M5x40	£1.16 £0.97
89	MK168392-4 Available to backorder	Exhaust Muffler Complete	£14.16 £11.80
90	MK418718-3 Available to backorder	Muffler Gasket	£2.46 £2.05
91	MK922123-3 Available to backorder	Hex. Socket Head Bolt M4x14 Wr	£0.58 £0.48
92	MK418717-5 Available to backorder	Throttle Holder	£1.32 £1.10
95	MK213221-7 Available to backorder	O-Ring 15	£1.32 £1.10
96	MK418702-8 Available to backorder	Cleaner Case	£1.74 £1.45
97	MK911268-2 Available to backorder	Pan Head Screw M5x45 Wr	£0.74 £0.62
98	MK443118-8 Available to backorder	Air Filter	£1.60 £1.33
99	MK125255-7 Available to backorder	Engine Short Block (INC. 100-103 106-113)	£187.46 £156.22
100	MK922233-6 Available to backorder	Hex. Socket Head Bolt M5x20 Wr	£0.86 £0.72
101	MK183944-0 Available to backorder	Cylinder Set (INC. 113)	£148.94 £124.12
102	MK213131-8 Available to backorder	Oil Seal 12	£10.12 £8.43
103	MK153910-1 Available to backorder	Crankshaft Complete (INC. 104 105)	£96.64 £80.53
104	MK210113-1 Available to backorder	Ball Bearing 6001 (Alt.)	£11.56 £9.63
106	MK324529-5 Available to backorder	Piston Clip	£0.74 £0.62
106	MK233976-8 Available to backorder	Clip (Alt.)	£0.48 £0.40
107	MK212955-9 Available to backorder	Needle Cage 8x11x10	£5.36 £4.47
108	MK317811-9 Available to backorder	Piston	£18.78 £15.65
110	MK324467-1 Available to backorder	Piston Pin 8	£1.74 £1.45
112	MK324463-9 Available to backorder	Piston Ring	£4.62 £3.85
114	MK317813-5 Available to backorder	Flywheel	£21.96 £18.30
115	MK231671-4 Available to backorder	Torsion Spring 15	£0.58 £0.48
116	MK345453-9 Available to backorder	Ratchet	£0.56 £0.47
117	MK266342-4 Available to backorder	Hex. Socket Button Head Bolt M5x12	£0.58 £0.48
118	MK942201-3 Available to backorder	Spring Washer 8	£0.48 £0.40
119	MK931403-6 Available to backorder	Hex. Nut M8	£0.58 £0.48
120	MK418714-1 Available to backorder	Spacer	£0.86 £0.72
121	MK125278-5 Available to backorder	Ignition Coil Assembly (INC. 124 125)	£32.80 £27.33
122	MK266359-7 Available to backorder	Hex. Socket Flange Head Bolt M4	£1.16 £0.97
122	MK266437-3 Available to backorder	Hex. Socket Head Bolt M4x16 S	£1.02 £0.85
123	MK168401-9 Available to backorder	Spark Plug (Alt.)	£6.54 £5.45
124	MK324465-5 Available to backorder	Plug Cap Spring	£0.58 £0.48
124	MKPK00000001 Available to backorder	Plug Cap Spring (Alt.)	£2.18 £1.82
125	MKPK00000002 Available to backorder	Plug Cap (Alt.)	£3.70 £3.08
125	MK421878-2 Available to backorder	Plug Cap	£0.86 £0.72
