Makita DCL180 - Cordless Cleaner - Power Tool Diagram

Description

Model No. DCL180

Cordless Cleaner

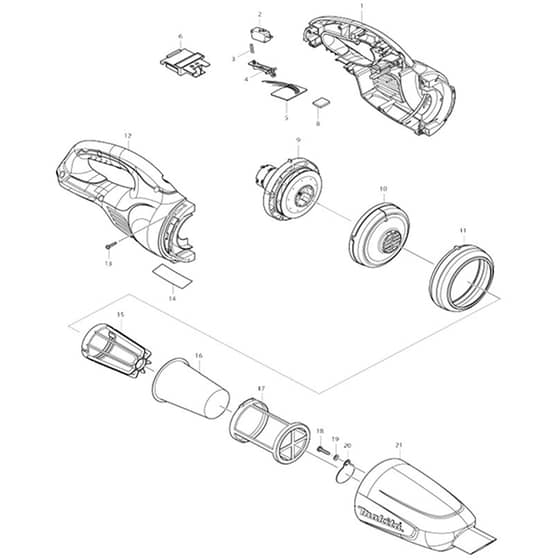

Power Tool Parts Diagrams

	Part No.	Details
1	MK187458-1 Available to backorder	Housing Set (Refs 001 \| 012 \| 012B)	£19.44 £16.20
1	MK183E54-3 Available to backorder	Housing Set	£15.48 £12.90
2	MK650744-8 Available to backorder	Switch D3V-16-3C26 (Alt.)	£2.21 £1.84
2	MK651891-8 Available to backorder	Switch V-15-3A6	£3.48 £2.90
3	MK231473-8 Available to backorder	Compression Spring 4	£0.48 £0.40
4	MK654199-9 Available to backorder	Receptacle (C30)	£0.48 £0.40
4	MK654208-4 Available to backorder	Receptacle (Alt.) (C31)	£0.70 £0.58
4	MK654086-2 Available to backorder	Receptacle 42486-2 (C20)	£2.38 £1.98
4	MK451227-9 Available to backorder	Switch Lever	£0.89 £0.74
5	MK638935-1 Available to backorder	Controller Unit	£17.76 £14.80
5	MK632F98-1 Available to backorder	Controller Unit <	£17.88 £14.90
6	MK643860-3 Available to backorder	Terminal	£5.28 £4.40
8	MK424248-4 Available to backorder	Sponge Sheet 15-25	£0.70 £0.58
9	MK452455-9 Available to backorder	Base (C10)	£1.74 £1.45
9	MK125867-6 Available to backorder	Motor Assembly	£18.48 £15.40
9	MK240102-2 Available to backorder	Fan 82 (C30)	£4.80 £4.00
9	MK265199-0 Available to backorder	Pan Head Screw M3x8 (C20)	£0.70 £0.58
10	MK416030-5 Available to backorder	Fan Cover	£1.22 £1.02
11	MK424320-2 Available to backorder	Rubber Ring	£2.05 £1.71
13	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
13	MK266429-2 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
14	MK815F73-4 Available to backorder	Name Plate Dcl180	£1.90 £1.58
15	MK458467-0 Available to backorder	Stay <	£1.03 £0.86
16	MK443060-3 In stock	Filter	£1.03 £0.86
17	MK451208-3 Available to backorder	Pre-Filter	£3.12 £2.60
18	MK251530-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
18	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
19	MK941051-3 Available to backorder	Flat Washer 4	£0.48 £0.40
20	MK424208-6 Available to backorder	Valve	£0.70 £0.58
21	MK451235-0 Available to backorder	Capsule	£7.80 £6.50
21	MK456196-9 Available to backorder	Capsule	£7.92 £6.60
22	MK424308-2 Available to backorder	Sponge Sheet 50-36	£0.89 £0.74
23	MK632H18-7 Available to backorder	Fuse Unit	£2.05 £1.71
24	MK422268-2 Available to backorder	Sponge Sheet 57	£0.48 £0.40
901	MK123539-7 Available to backorder	Nozzle Assembly (A01-1C)	£14.28 £11.90
901	MK422963-4 Available to backorder	Wiper (Alt.) (C31)	£0.55 £0.46
901	MK123488-8 Available to backorder	Nozzle Assembly < (A01-1B)	£16.80 £14.00
901	MK268208-4 Available to backorder	Pin 3 (C20)	£0.48 £0.40
901	MK424096-1 Available to backorder	Wiper (C30)	£0.58 £0.48
901	MK451410-8 Available to backorder	Roller (C10)	£1.49 £1.24
902	MK413809-5 Available to backorder	Sash Nozzle (Alt.) (A02-1C)	£6.72 £5.60
902	MK191496-7 Available to backorder	Flexible Hose Set (F02)	£7.44 £6.20
902	MK456586-6 Available to backorder	Corner Nozzle (A02C)	£7.56 £6.30
903	MK456587-4 Available to backorder	Pipe (A03C)	£3.48 £2.90
903	MK451244-9 Available to backorder	Pipe (A03B)	£3.72 £3.10
904	MK424209-4 Available to backorder	Sponge Sheet 50-50 (C10)	£0.89 £0.74
904	MK451245-7 Available to backorder	Sash Nozzle Holder (A04B)	£0.50 £0.42
916	MK198537-0 Available to backorder	Shelf Brush Set (F16)	£6.36 £5.30
918	MK198538-8 Available to backorder	Shelf Brush Set (F18)	£8.28 £6.90
925	MK198547-7 Available to backorder	Flexible Hose Set (F25)	£16.92 £14.10
927	MK198552-4 Available to backorder	Round Brush Set (F27)	£9.24 £7.70
932	MK198560-5 Available to backorder	Telescopic Pipe Assembly Set (Alt.) (F32-1)	£31.44 £26.20
937	MK198868-7 Available to backorder	Flexible Hose Set (F37)	£12.24 £10.20
939	MK198873-4 Available to backorder	Shelf Brush Set (F39)	£7.68 £6.40
941	MK198878-4 Available to backorder	Round Brush Set (F41)	£8.52 £7.10
943	MK198915-4 Available to backorder	Filter Set (F43)	£12.24 £10.20
945	MK199038-1 Available to backorder	Seat Nozzle Set (F45)	£11.64 £9.70
949	MK199041-2 Available to backorder	Seat Nozzle Set (F49)	£9.60 £8.00
951	MK198919-6 Available to backorder	Long Corner Nozzle Set (F51)	£3.84 £3.20
955	MK198990-0 Available to backorder	Long Corner Nozzle Set (F55)	£6.36 £5.30
957	MK198751-8 Available to backorder	Pre-Filter (F57)	£6.72 £5.60
959	MK198753-4 Available to backorder	High Performance Filter Set (F59)	£12.24 £10.20
960	MK199491-1 Available to backorder	Cyclone Attachment Set (F60)	£47.16 £39.30
962	MK199439-3 Available to backorder	Crevice Nozzle 415 Set (F62)	£5.88 £4.90
963	MK191D79-7 Available to backorder	Straight Pipe 320 Set (F63)	£7.08 £5.90
965	MK191D75-5 Available to backorder	Cyclone Attachment Set (F65)	£40.68 £33.90
967	MK191D80-2 Available to backorder	Straight Pipe 320 Set (F67)	£7.08 £5.90
969	MK199971-7 Available to backorder	Holder Set (F69)	£7.56 £6.30
970	MK1910E7-3 Available to backorder	Flexible Hose Set (F70)	£15.96 £13.30
971	MK1910F3-8 Available to backorder	Cyclone Attachment Set (F71)	£52.92 £44.10
989	MK1910D4-2 Available to backorder	Cyclone Unit Set (F89)	£66.84 £55.70
990	MK1910D3-4 Available to backorder	Cyclone Unit Set (F90)	£66.84 £55.70
991	MK1910D5-0 Available to backorder	Cyclone Unit Set (F91)	£66.84 £55.70
992	MK1911L1-0 Available to backorder	Cleaner Stand Set (F92)	£44.40 £37.00
