Makita DC24WA - Charger - Power Tool Diagram

Makita DC24WA - Charger - Power Tool Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

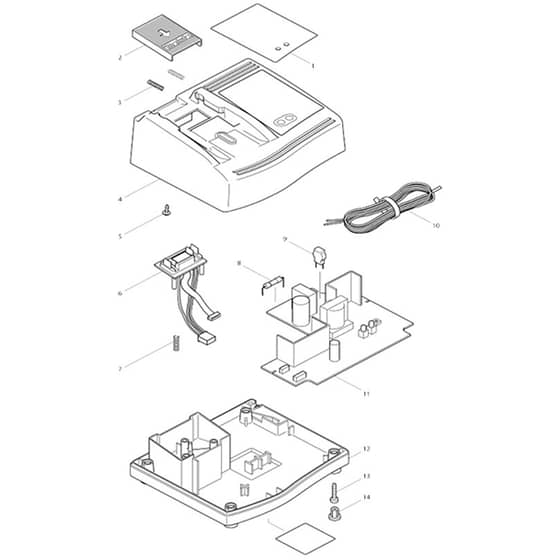

Makita DC24WA - Charger - Power Tool Diagram

Makita DC24WA - Charger - Power Tool Diagram

Description

Model No. DC24WA

Charger

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		MK418181-0 Available to backorder	Terminal Cover (Clear)		£1.16 £0.97
	3		MK231474-6 Available to backorder	Compression Spring 4		£0.48 £0.40
	4		MK183617-5 Available to backorder	Charger Case Set (Blue)		£25.28 £21.07
	5		MK266278-7 Available to backorder	Tapping Screw Flange Bt3x10		£0.74 £0.62
	6		MK638238-3 Available to backorder	Terminal Unit		£25.28 £21.07
	7		MK233194-8 Available to backorder	Compression Spring 4		£0.48 £0.40
	8		MK652747-8 Available to backorder	Fuse 250V 2.5A		£2.32 £1.93
	8		MK652780-0 Available to backorder	Fuse (Alt.)		£2.02 £1.68
	9		MK647306-1 Available to backorder	Varistor		£2.32 £1.93
	10		MK667985-9 Available to backorder	Vinyl Cord 0.75-2-2.0		£4.48 £3.73
	11		MK631547-9 Available to backorder	Charging Circuit		£65.58 £54.65
	13		MK265874-8 Available to backorder	Tapping Screw Bt 4x20		£0.48 £0.40
	13		MK265B01-9 Available to backorder	Tapping Screw Pt 4x20 <		£1.64 £1.37
	13		MK266346-6 Available to backorder	Tapping Screw Bt 4x20 (Alt.)		£1.60 £1.33
	14		MK286255-3 Available to backorder	Cap 13		£0.48 £0.40
