Makita DBO482 - Cordless Finishing Sander - Power Tool Diagram

Description

Model No. DBO482

Cordless Finishing Sander

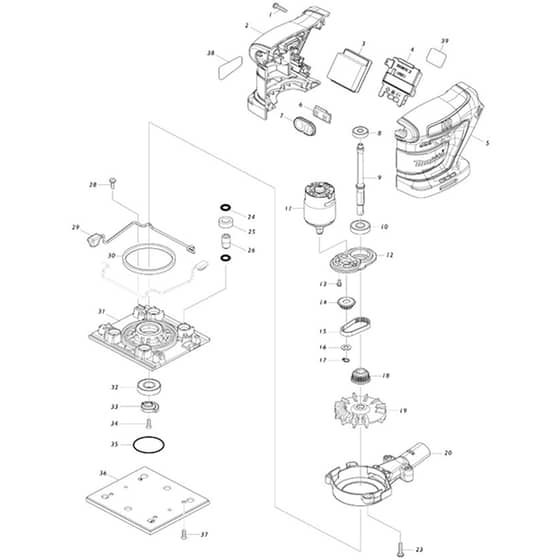

Power Tool Parts Diagrams

	Part No.	Details
1	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
2	MK183U93-9 Available to backorder	Housing Set (INC. 5)	£14.88 £12.40
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
3	MK654086-2 Available to backorder	Receptacle (C20)	£2.38 £1.98
3	MK632S79-3 Available to backorder	Controller Unit	£57.00 £47.50
3	MK688164-6 Available to backorder	Line Filter (C10)	£0.89 £0.74
4	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
6	MK632K92-3 Available to backorder	Switch Unit	£8.28 £6.90
7	MK141B15-1 Available to backorder	Switch Plate Complete	£1.79 £1.49
8	MK210143-2 Available to backorder	Ball Bearing 626Zz	£1.74 £1.45
9	MK327807-2 Available to backorder	Spindle	£4.44 £3.70
10	MK211491-2 Available to backorder	Ball Bearing 609Ddw	£2.83 £2.36
11	MK629B07-5 Available to backorder	Dc Motor	£19.32 £16.10
12	MK413619-0 Available to backorder	Motor Bracket	£0.84 £0.70
13	MK265173-8 Available to backorder	Pan Head Screw M3x8	£0.70 £0.58
14	MK222200-4 Available to backorder	Pulley 7.5-15.5	£5.88 £4.90
15	MK225105-7 Available to backorder	Synchro Belt 6-108	£3.72 £3.10
16	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
17	MK961002-0 Available to backorder	Retaining Ring S-6	£0.48 £0.40
18	MK222199-3 Available to backorder	Pulley 7.5-20.3	£8.16 £6.80
19	MK240224-8 Available to backorder	Fan 63	£7.20 £6.00
20	MK122B40-1 Available to backorder	Fan Guide Assembly	£3.96 £3.30
24	MK213983-7 Available to backorder	O Ring 4 (Alt.)	£0.70 £0.58
25	MK424023-8 Available to backorder	Sponge Sleeve 9	£0.48 £0.40
26	MK318151-8 Available to backorder	Foot	£0.70 £0.58
28	MK266398-7 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
30	MK424684-4 Available to backorder	Sponge 7x87x3	£0.48 £0.40
32	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
33	MK313141-6 Available to backorder	Balancer	£0.89 £0.74
34	MK912117-6 Available to backorder	Countersunk Head Screw M4x12	£0.48 £0.40
35	MK213513-4 Available to backorder	O Ring 39 (Alt.)	£0.89 £0.74
36	MK191Y25-6 Available to backorder	Pad Complete Set	£5.88 £4.90
901	MK191Y22-2 Available to backorder	Triangle Plate Complete Set (F01)	£10.56 £8.80
902	MK191Y23-0 Available to backorder	Rectangle Plate Complete Set (F02)	£8.76 £7.30
902	MK194746-9 Available to backorder	Paper Dust Bag Set (A02)	£8.28 £6.90
903	MK191Y24-8 Available to backorder	Pad Complete Set (F03)	£7.44 £6.20
905	MK135246-0 Available to backorder	Dust Box Assembly (A05)	£9.36 £7.80
906	MK450066-4 Available to backorder	Punch Plate (A06)	£1.90 £1.58
909	MK821550-0 Available to backorder	Connector Plastic Case (A09)	£56.16 £46.80
909	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
910	MK8351G2-0 Available to backorder	Inner Tray (A10)	£10.92 £9.10
