Makita DAS180 - Cordless Dust Blower - Power Tool Diagram

Name: Makita DAS180 - Cordless Dust Blower - Power Tool Diagram
SKU: das180_cordless_dust_blower_power_tool-group
Price: 0.4 GBP
Availability: InStock

Part No. das180_cordless_dust_blower_power_tool-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DAS180 - Cordless Dust Blower - Power Tool Diagram

Description

Model No. DAS180

Cordless Dust Blower

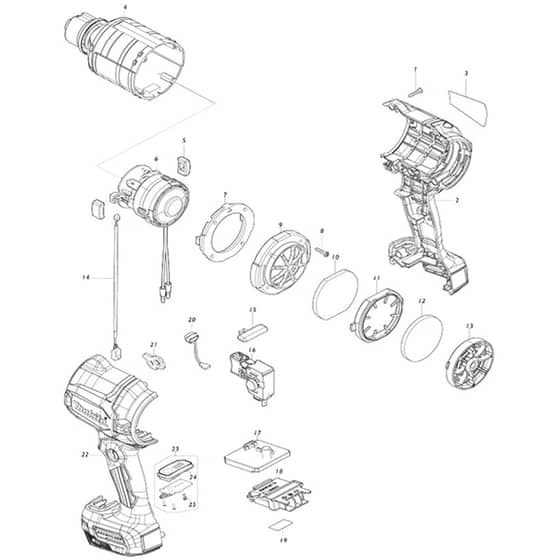

Power Tool Parts Diagrams

	Part No.	Details
1	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
2	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
2	MK183Y77-1 Available to backorder	Housing Set	£18.84 £15.70
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
4	MK141K56-1 Available to backorder	Motor Housing Complete	£5.52 £4.60
5	MK422816-7 Available to backorder	Motor Cover Seal	£0.48 £0.40
6	MK629B99-4 Available to backorder	Motor Assembly	£123.48 £102.90
7	MK422817-5 Available to backorder	Motor Cover	£1.49 £1.24
9	MK413C47-7 Available to backorder	Rear Cover	£1.66 £1.38
10	MK422824-8 Available to backorder	Filter A	£0.70 £0.58
11	MK413C49-3 Available to backorder	Filter Holder	£1.15 £0.96
12	MK422825-6 Available to backorder	Filter B	£0.48 £0.40
13	MK141G57-5 Available to backorder	Dust Cap Complete	£1.32 £1.10
13	MK263032-0 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
14	MK638A30-3 Available to backorder	Lead Unit	£1.63 £1.36
15	MK412697-7 Available to backorder	Lock Off Button	£1.66 £1.38
16	MK650019-5 Available to backorder	Switch C3Jw-4B-L	£24.72 £20.60
17	MK620L90-5 Available to backorder	Controller	£67.08 £55.90
18	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
20	MK620521-2 Available to backorder	Led Circuit	£9.00 £7.50
21	MK347914-5 Available to backorder	Strap Ring	£1.15 £0.96
23	MK620L89-0 Available to backorder	Indication Circuit Complete	£16.56 £13.80
25	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
901	MK191X19-5 Available to backorder	Wide Range Nozzle Set (A01)	£6.24 £5.20
902	MK191X11-1 Available to backorder	Nozzle 3 Set (A02)	£2.66 £2.22
903	MK191X13-7 Available to backorder	Nozzle 7 Set (A03)	£2.66 £2.22
904	MK191X15-3 Available to backorder	Nozzle 13 Set (A04)	£2.66 £2.22
905	MK191X17-9 Available to backorder	Pinch Valve Nozzle Set (A05)	£3.84 £3.20
906	MK831304-7 Available to backorder	Accessory Bag (A06)	£3.01 £2.51
908	MK197280-8 In stock	Battery Bl1850B Set (A08)	£76.24 £63.53
909	MK832074-1 Available to backorder	Tool Bag (A09)	£18.24 £15.20
