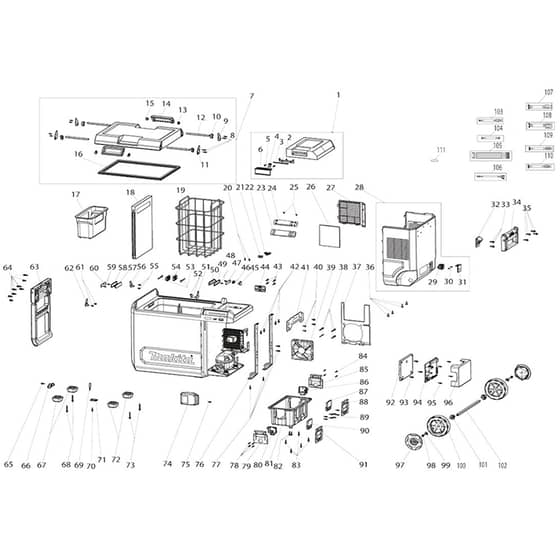

Makita CW004G - Cordless Cooler & Warmer Box - Power Tool Diagram

Description

Model No. CW004G

Cordless Cooler & Warmer Box

Power Tool Parts Diagrams

	Part No.	Details
1	MKCE00000094 Available to backorder	Battery Cover (INC. 2-6)	£7.68 £6.40
17	MKCE00000009 Available to backorder	Tray	£6.84 £5.70
18	MKCE00000093 Available to backorder	Partition	£19.68 £16.40
19	MKCE00000008 Available to backorder	Basket	£17.52 £14.60
20	MKCE00000061 Available to backorder	Tapping Screws St2.9x9.5 (Refs 025 \| 048 \| 059 \| 078 \| 084 \| 089 \| 095)	£0.48 £0.40
21	MKCE00000078 Available to backorder	Usb Cover	£0.48 £0.40
22	MKCE00000049 Available to backorder	Usb Pcb	£7.08 £5.90
23	MKCE00000027 Available to backorder	Display Panel	£19.32 £16.10
24	MKCE00000048 Available to backorder	Display Control Panel	£24.60 £20.50
26	MKCE00000035 Available to backorder	Filter	£0.48 £0.40
30	MKCE00000062 Available to backorder	Tapping Screws St2.9x10	£0.48 £0.40
32	MKCE00000012 Available to backorder	Bottle Opener	£4.44 £3.70
33	MKCE00000068 Available to backorder	Pan Head Screw M5x14	£0.48 £0.40
34	MKCE00000095 Available to backorder	Short Handle Assembly	£9.72 £8.10
35	MKCE00000070 Available to backorder	Pan Head Screw M5x14	£0.48 £0.40
36	MKCE00000065 Available to backorder	Pan Head Screw St4x16	£0.48 £0.40
37	MKCE00000099 Available to backorder	Separator	£2.83 £2.36
38	MKCE00000066 Available to backorder	Pan Head Screw M5x35	£0.48 £0.40
39	MKCE00000054 Available to backorder	Dc Fan	£14.04 £11.70
40	MKCE00000067 Available to backorder	Screw M4x35	£0.48 £0.40
41	MKCE00000011 Available to backorder	Hadle Plate	£5.04 £4.20
42	MKCE00000060 Available to backorder	Tapping Screws St4.2x16	£0.48 £0.40
43	MKCE00000059 Available to backorder	Tapping Screws St4.2x16	£0.48 £0.40
44	MKCE00000088 Available to backorder	Hinge	£8.88 £7.40
45	MKCE00000086 Available to backorder	Shaft Plate A	£1.94 £1.62
46	MKCE00000071 Available to backorder	C.H Tapping Screws 4x8 (Refs 052 \| 055 \| 061)	£0.48 £0.40
47	MKCE00000038 Available to backorder	Led Pcb	£8.04 £6.70
49	MKCE00000076 Available to backorder	Silicon Ring	£0.65 £0.54
50	MKCE00000032 Available to backorder	Led Cover	£0.65 £0.54
51	MKCE00000085 Available to backorder	Shaft Plate B	£2.24 £1.87
53	MKCE00000055 Available to backorder	Thermosensor	£2.56 £2.13
54	MKCE00000033 Available to backorder	Thermosensor Cover	£0.65 £0.54
62	MKCE00000084 Available to backorder	Shaft Plate C	£2.24 £1.87
63	MKCE00000096 Available to backorder	Long Hadle	£22.92 £19.10
65	MKCE00000063 Available to backorder	C.H Tapping Screws 4x16	£0.48 £0.40
66	MKCE00000079 Available to backorder	Drain Plug	£1.32 £1.10
67	MKCE00000077 Available to backorder	Foot	£2.69 £2.24
68	MKCE00000069 Available to backorder	Pan Head Screw M4x30	£0.48 £0.40
69	MKCE00000036 Available to backorder	Magnetic Switch	£3.96 £3.30
74	MKCE00000034 Available to backorder	Compressor Pcb	£72.96 £60.80
75	MKCE00000072 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
76	MKCE00000010 Available to backorder	Compressor Bracket	£8.88 £7.40
79	MKCE00000025 Available to backorder	Terminal Cover	£1.63 £1.36
80	MKCE00000053 Available to backorder	Terminal	£6.24 £5.20
81	MKCE00000024 Available to backorder	Battery Box	£7.20 £6.00
82	MKCE00000057 Available to backorder	Tapping Screws 4.2x16	£0.48 £0.40
87	MKCE00000037 Available to backorder	Terminal	£17.40 £14.50
88	MKCE00000026 Available to backorder	Terminal Cover	£1.63 £1.36
90	MKCE00000052 Available to backorder	Terminal	£17.40 £14.50
92	MKCE00000020 Available to backorder	Control Pcb Holder	£2.38 £1.98
93	MKCE00000064 Available to backorder	Screw Sus304 St4.8x13	£0.48 £0.40
94	MKCE00000127 Available to backorder	Control Pcb	£158.16 £131.80
96	MKCE00000021 Available to backorder	Control Pcb Cover	£3.14 £2.62
97	MKCE00000030 Available to backorder	Wheel Cover	£0.98 £0.82
98	MKCE00000073 Available to backorder	Hex. Lock Nut M6	£0.65 £0.54
99	MKCE00000074 Available to backorder	Flat Washer	£0.48 £0.40
100	MKCE00000029 Available to backorder	Wheel	£9.24 £7.70
101	MKCE00000028 Available to backorder	Shaft Sleeve	£0.98 £0.82
102	MKCE00000087 Available to backorder	Wheel Shaft	£13.80 £11.50
103	MKCE00000047 Available to backorder	Dc Cable	£5.40 £4.50
104	MKCE00000042 Available to backorder	Control Board Connection Cable	£3.24 £2.70
105	MKCE00000041 Available to backorder	Module Connection Cable	£4.20 £3.50
106	MKCE00000040 Available to backorder	Magnetic Cable	£2.56 £2.13
107	MKCE00000043 Available to backorder	18V Dc Connection Cable 1	£6.12 £5.10
108	MKCE00000044 Available to backorder	18V Dc Connection Cable 2	£6.48 £5.40
109	MKCE00000045 Available to backorder	36V Dc Connection Cable 1	£4.44 £3.70
110	MKCE00000046 Available to backorder	36V Dc Connection Cable 2	£4.44 £3.70
