Makita CS002G - Cordless Metal Cutter - Power Tool Diagram

Description

Model No. CS002G

Cordless Metal Cutter

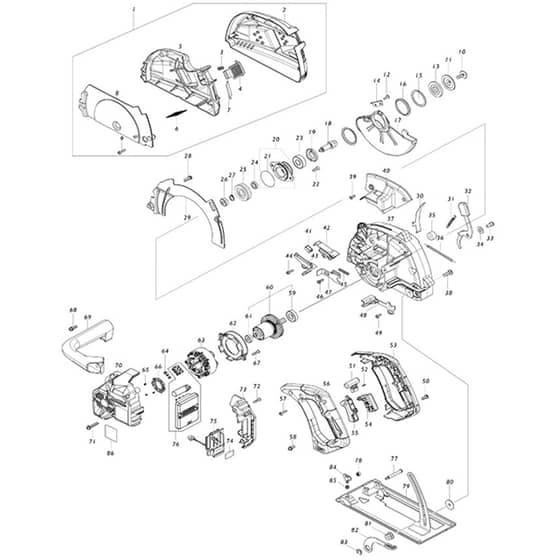

Power Tool Parts Diagrams

	Part No.	Details
1	MK136729-3 Available to backorder	Dust Case Ass'y (INC. 2-9)	£125.04 £104.20
2	MK810055-5 Available to backorder	Caution Label (C20)	£0.89 £0.74
2	MK8012U4-2 Available to backorder	xgt Logo Label (C10)	£0.48 £0.40
2	MK183W40-2 Available to backorder	Dust Case Cover Set	£28.80 £24.00
3	MK233189-1 Available to backorder	Compression Spring 6	£0.70 £0.58
4	MK413E80-1 Available to backorder	Hook	£2.10 £1.75
5	MK312C66-9 Available to backorder	Dust Case	£33.84 £28.20
6	MK347996-7 Available to backorder	Punching Metal Cover	£5.88 £4.90
7	MK431005-3 Available to backorder	Heat Resisting Glass	£14.52 £12.10
8	MK312C67-7 Available to backorder	Dust Plate	£24.60 £20.50
9	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 057 \| 067 \| 072)	£0.48 £0.40
10	MK266458-5 Available to backorder	Hex.Socket Hex.Bolt M6x18	£0.70 £0.58
11	MK224366-6 Available to backorder	Outer Flange 40	£6.84 £5.70
12	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12 (Refs 039 \| 049)	£0.48 £0.40
13	MK224370-5 Available to backorder	Inner Flange 40	£5.28 £4.40
14	MK344944-7 Available to backorder	Sub Plate	£3.12 £2.60
15	MK961186-4 Available to backorder	Retaining Ring Wr-40	£1.74 £1.45
16	MK347964-0 Available to backorder	Spacer	£1.15 £0.96
17	MK312C69-3 Available to backorder	Safety Cover	£38.16 £31.80
18	MK327957-3 Available to backorder	Spindle	£4.08 £3.40
19	MK285802-7 Available to backorder	Bearing Retainer 19-33	£1.58 £1.32
20	MK136703-1 Available to backorder	Bearing Box Ass'y (INC. 21)	£11.64 £9.70
21	MK213565-5 Available to backorder	O Ring 42 (Alt.)	£0.89 £0.74
22	MK265034-2 Available to backorder	+ Countersunk Head Screw M5x16	£0.70 £0.58
23	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
24	MK257011-8 Available to backorder	Ring 12	£0.89 £0.74
25	MK227944-1 Available to backorder	Helical Gear 29	£6.12 £5.10
26	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.48 £2.90
27	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
28	MK911228-4 Available to backorder	Pan Head Screw M5x18	£1.79 £1.49
29	MK312C68-5 Available to backorder	Blade Cover	£22.56 £18.80
30	MK347A66-8 Available to backorder	Protector	£4.92 £4.10
31	MK231823-7 Available to backorder	Tension Spring 4	£1.58 £1.32
32	MK162B55-6 Available to backorder	Lever	£6.48 £5.40
33	MK251267-5 Available to backorder	+ Pan Head Screw M6	£1.39 £1.16
33	MK265506-7 Available to backorder	Shoulder Hex. Bolt M6 S	£2.83 £2.36
34	MK253139-0 Available to backorder	Flat Washer 8 S	£0.48 £0.40
34	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
35	MK262552-1 Available to backorder	Rubber Sleeve 6	£1.22 £1.02
36	MK231845-7 Available to backorder	Tension Spring 4	£0.89 £0.74
37	MK213437-4 Available to backorder	O Ring 28 (Alt.) (C10)	£0.70 £0.58
37	MK263002-9 Available to backorder	Rubber Pin 4 (C20)	£0.48 £0.40
37	MK141H36-9 Available to backorder	Gear Housing Complete	£72.60 £60.50
38	MK266737-1 Available to backorder	Flat Head Sq. Neck Bolt M6x20	£0.48 £0.40
40	MK413E82-7 Available to backorder	Gear Housing Cover	£5.04 £4.20
41	MK620936-3 Available to backorder	Led Circuit	£9.72 £8.10
42	MK413E86-9 Available to backorder	Led Case	£2.69 £2.24
43	MK413E85-1 Available to backorder	Led Cover	£2.56 £2.13
44	MK266034-5 Available to backorder	Tapping Screw Ct 4x16	£0.48 £0.40
45	MK233084-5 Available to backorder	Compression Spring 6	£0.48 £0.40
46	MK251529-1 Available to backorder	+ Pan Head Screw M4x14	£0.48 £0.40
47	MK347963-2 Available to backorder	Shaft Lock	£3.72 £3.10
48	MK413E79-6 Available to backorder	Lead Cover	£2.24 £1.87
50	MK911218-7 In stock	Pan Head Screw M5x14	£0.52 £0.43
51	MK419704-7 Available to backorder	Lock Off Button	£1.58 £1.32
52	MK231433-0 Available to backorder	Compression Spring 4	£0.48 £0.40
53	MK183V81-2 Available to backorder	Handle Set (INC. 56)	£24.60 £20.50
54	MK650008-0 Available to backorder	Switch C3xb-1Lpspm	£29.76 £24.80
54	MK650039-9 Available to backorder	Switch C3xb-1Lpspm <	£34.68 £28.90
55	MK413C24-9 Available to backorder	Switch Lever	£1.15 £0.96
59	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
62	MK413E81-9 Available to backorder	Baffle Plate	£3.14 £2.62
63	MK629A85-9 Available to backorder	Stator	£22.56 £18.80
64	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
65	MK652093-9 Available to backorder	Pan Head Screw M2x5	£0.48 £0.40
65	MK652119-7 Available to backorder	Pan Head Screw M2x6 (Alt.)	£0.48 £0.40
66	MK632R96-7 Available to backorder	Sensor Unit	£34.08 £28.40
69	MK413E78-8 Available to backorder	Grip	£13.32 £11.10
70	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
70	MK141H38-5 Available to backorder	Motor Housing Complete	£24.84 £20.70
71	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.70 £0.58
73	MK141H41-6 Available to backorder	Terminal Housing Complete	£8.16 £6.80
75	MK632P49-4 Available to backorder	Terminal Unit	£11.04 £9.20
76	MK620H98-5 Available to backorder	Controller	£177.00 £147.50
904	MK164095-8 In stock	Guide Rule (A04)	£4.61 £3.84
