Makita CL102D - Cordless Cleaner - Power Tool Diagram

Description

Model No. CL102D

Cordless Cleaner

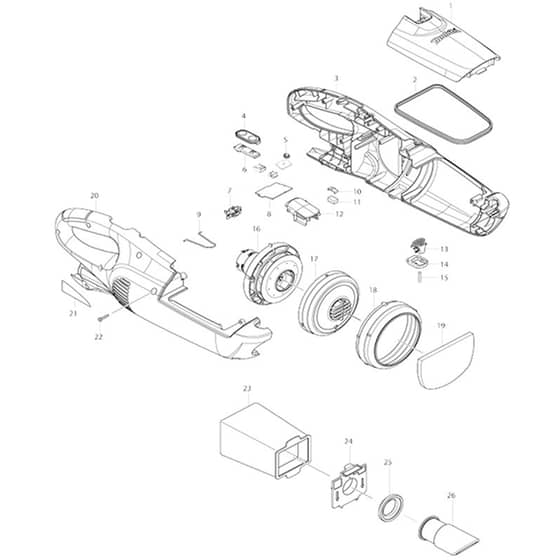

Power Tool Parts Diagrams

	Part No.	Details
2	MK424093-7 Available to backorder	Seal	£1.49 £1.24
4	MK140463-9 Available to backorder	Switch Plate Complete	£1.74 £1.45
4	MK816528-6 Available to backorder	Switch Label (C10)	£1.32 £1.10
5	MK450522-4 Available to backorder	Lens	£0.48 £0.40
6	MK631973-2 Available to backorder	Switch Unit	£10.20 £8.50
7	MK643817-4 Available to backorder	Terminal	£1.73 £1.44
8	MK654086-2 Available to backorder	Receptacle (Alt.) (C21)	£2.38 £1.98
8	MK688164-6 Available to backorder	Line Filter (C10)	£0.89 £0.74
8	MK654069-2 Available to backorder	Receptacle (C20)	£0.48 £0.40
9	MK324885-3 Available to backorder	Hanger	£0.48 £0.40
10	MK232264-0 Available to backorder	Leaf Spring	£0.48 £0.40
11	MK424367-6 Available to backorder	Rubber	£0.48 £0.40
12	MK268271-7 Available to backorder	Pin 3 (C20)	£1.03 £0.86
12	MK233580-3 Available to backorder	Torsion Spring 4 (C10)	£0.48 £0.40
14	MK452352-9 Available to backorder	Stopper	£0.65 £0.54
15	MK233344-5 Available to backorder	Compression Spring 4 <	£0.48 £0.40
16	MK265199-0 Available to backorder	+ Pan Head Screw M3x8 (C20)	£0.70 £0.58
16	MK452455-9 Available to backorder	Base (C30)	£1.74 £1.45
16	MK240102-2 Available to backorder	Fan 82 (C10)	£4.80 £4.00
17	MK416030-5 Available to backorder	Fan Cover	£1.22 £1.02
18	MK424320-2 Available to backorder	Rubber Ring	£2.05 £1.71
19	MK424804-0 Available to backorder	Sponge Sheet 76-110 <	£0.84 £0.70
19	MK423287-1 Available to backorder	Sponge Sheet 70-106	£3.18 £2.65
22	MK266429-2 Available to backorder	Tapping Screw 3x16	£0.48 £0.40
23	MK166084-9 Available to backorder	Dust Bag	£1.66 £1.38
24	MK143677-9 Available to backorder	Valve Stay Complete <	£2.69 £2.24
25	MK424094-5 Available to backorder	Packing	£1.03 £0.86
26	MK451400-1 Available to backorder	Inlet (Blue)	£1.39 £1.16
37	MK422963-4 Available to backorder	Wiper (Alt.) (C31)	£0.55 £0.46
37	MK268208-4 Available to backorder	Pin 3 (C20)	£0.48 £0.40
37	MK424096-1 Available to backorder	Wiper (C30)	£0.58 £0.48
37	MK451410-8 Available to backorder	Roller (C10)	£1.49 £1.24
901	MK122861-9 Available to backorder	Nozzle Ass'y (A01)	£10.32 £8.60
901	MK127825-8 Available to backorder	Nozzle Assembly (A01)	£17.52 £14.60
901	MK123485-4 Available to backorder	Floor T-Nozzle 28 Ivo < (A01-1)	£13.92 £11.60
901	MK123488-8 Available to backorder	Floor T-Nozzle 28 Blu < (A01-1)	£16.80 £14.00
902	MK191496-7 Available to backorder	Flexible Hose Set28(Ivo) (F02)	£7.44 £6.20
902	MK416041-0 Available to backorder	Sash Nozzle 28 Ivo (A02)	£1.27 £1.06
903	MK451244-9 Available to backorder	Pipe (A03)	£3.72 £3.10
903	MK416043-6 Available to backorder	Sash Nozzle Holder (Ivory) (A03)	£0.62 £0.52
904	MK451424-7 Available to backorder	Pipe (A04)	£3.24 £2.70
904	MK451245-7 Available to backorder	Sash Nozzle Holder (A04)	£0.50 £0.42
905	MK198745-3 Available to backorder	Paper Filter Set (Alt.) (A05-1)	£7.08 £5.90
905	MK194566-1 Available to backorder	Paper Filter Set (5Pcs/Set) (A05)	£6.24 £5.20
907	MK194550-6 Available to backorder	Battery Bl1013 Set (A07)	£100.80 £84.00
907	MK196066-7 Available to backorder	Battery Bl1013 Set (Alt.) (A07-1)	£100.44 £83.70
910	MK198537-0 Available to backorder	Shelf Brush Set28 Ivo Eu (F10)	£6.36 £5.30
912	MK198538-8 Available to backorder	Shelf Brush Set28 Blu (F12)	£8.28 £6.90
917	MK198552-4 Available to backorder	Round Brush Set 28 Ivo (F17)	£9.24 £7.70
920	MK198560-5 Available to backorder	Telescopic Pipe Set 28 Eu (Alt.) (F20-1)	£31.44 £26.20
923	MK199038-1 Available to backorder	Seat Nozzle Set 28 Whi (F23)	£11.64 £9.70
927	MK199041-2 Available to backorder	Seat Nozzle Set 28 Blu (F27)	£9.60 £8.00
929	MK198919-6 Available to backorder	Long Sash Nozzle Set 28 Whi (F29)	£3.84 £3.20
933	MK198990-0 Available to backorder	Long Sash Nozzle Set 28 Blu (F33)	£6.36 £5.30
938	MK198747-9 Available to backorder	Dust Bag Set Eu (F38)	£7.08 £5.90
941	MK194565-3 Available to backorder	Paper Filter(10Pcs) (F41)	£9.00 £7.50
942	MK199439-3 Available to backorder	Crevice Nozzle 415 Set (F42)	£5.88 £4.90
944	MK191D80-2 Available to backorder	Straight Pipe Set 320 (F44)	£7.08 £5.90
946	MK199971-7 Available to backorder	Holder Set (F46)	£7.56 £6.30
992	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
992	MK1911L1-0 Available to backorder	Cleaner Stand Set (F92)	£44.40 £37.00
992	MK422714-5 Available to backorder	Sponge Seat (C20)	£0.65 £0.54
992	MK8005T5-8 Available to backorder	xgt Logo Label (C30)	£0.48 £0.40
