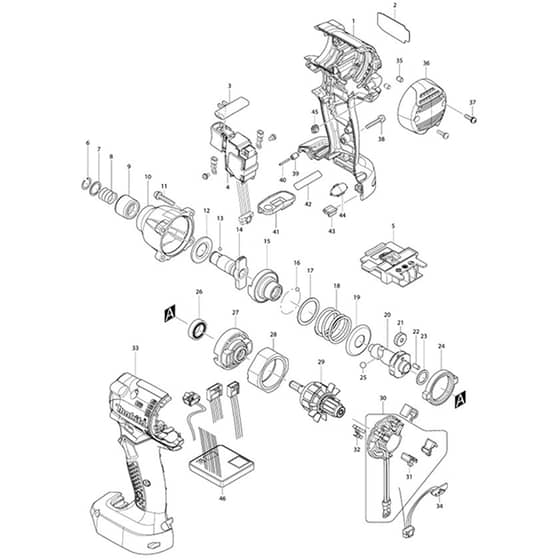

Makita BTD044 - Cordless Impact Driver - Power Tool Diagram

Description

Model No. BTD044

Cordless Impact Driver

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK183X32-7 Available to backorder	Housing Set <	£27.72 £23.10
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
1	MK187646-0 Available to backorder	Housing Set	£47.24 £39.37
1	MK183K96-3 Available to backorder	Housing Set <	£36.86 £30.72
2	MK852R42-6 Available to backorder	Btd044 Name Plate <	£0.70 £0.58
2	MK814J61-2 Available to backorder	Btd044 Name Plate	£0.70 £0.58
3	MK419041-9 Available to backorder	F/R Change Lever	£0.86 £0.72
4	MK651364-1 Available to backorder	Switch Tg573Fsb-5 <	£89.26 £74.38
4	MK650702-4 Available to backorder	Switch Tg573Fsb-5	£73.96 £61.63
5	MK644803-8 Available to backorder	Terminal	£16.46 £13.72
6	MK231951-8 Available to backorder	Ring Spring 11	£0.58 £0.48
7	MK267085-1 Available to backorder	Flat Washer 12	£0.74 £0.62
8	MK233005-7 Available to backorder	Compression Spring 13	£0.48 £0.40
9	MK162257-2 Available to backorder	Sleeve	£20.08 £16.73
10	MK144474-6 Available to backorder	Hammer Case Complete <	£70.94 £59.12
10	MK142055-0 Available to backorder	Hammer Case Complete	£65.58 £54.65
11	MK265145-3 Available to backorder	+ Pan Head Screw M4x22	£0.58 £0.48
12	MK261108-7 Available to backorder	Nylon Washer 14	£0.74 £0.62
13	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
14	MK327003-2 Available to backorder	Anvil M <	£45.06 £37.55
15	MK123898-9 Available to backorder	Hammer Assembly A x	£113.68 £94.73
15	MK326282-9 Available to backorder	Hammer A	£73.04 £60.87
17	MK267175-0 Available to backorder	Flat Washer 24	£0.74 £0.62
18	MK232341-8 Available to backorder	Compression Spring 26 <	£7.38 £6.15
18	MK234294-7 Available to backorder	Compression Spring 26	£22.66 £18.88
19	MK267851-6 Available to backorder	Cup Washer 14	£2.46 £2.05
20	MK326286-1 Available to backorder	Spindle	£14.44 £12.03
21	MK227321-7 Available to backorder	Spur Gear 16	£3.92 £3.27
22	MK268217-3 Available to backorder	Pin 3.5	£0.48 £0.40
23	MK267104-3 Available to backorder	Flat Washer 12	£0.74 £0.62
24	MK221535-0 Available to backorder	Internal Gear 39 <	£5.88 £4.90
24	MK227318-6 Available to backorder	Internal Gear 39	£5.20 £4.33
25	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
26	MK211136-2 Available to backorder	Ball Bearing 6801Llb	£6.06 £5.05
27	MK454414-9 Available to backorder	Internal Gear Case	£6.06 £5.05
28	MK638396-5 Available to backorder	Yoke Unit	£15.46 £12.88
29	MK619326-5 Available to backorder	Armature	£34.66 £28.88
30	MK654037-5 Available to backorder	Insulated Term. Ft1.25-M3 (C20)	£0.58 £0.48
30	MK688161-2 Available to backorder	Line Filter (C10)	£0.58 £0.48
30	MK632A94-9 Available to backorder	Brush Holder Complete	£10.40 £8.67
30	MK632N22-2 Available to backorder	Brush Holder Complete x	£8.74 £7.28
31	MK689181-9 Available to backorder	Spacer	£0.58 £0.48
32	MK198887-3 Available to backorder	Carbon Brush Cb-5 x	£5.48 £4.57
34	MK620212-5 Available to backorder	Led Circuit	£9.54 £7.95
35	MK263032-0 Available to backorder	Rubber Pin 4	£0.48 £0.40
36	MK455357-8 Available to backorder	Rear Cover <	£1.64 £1.37
37	MK266816-5 Available to backorder	Pan Head Screw M3x12	£0.48 £0.40
38	MK265095-2 Available to backorder	Pan Head Screw M3x20	£0.54 £0.45
39	MK263036-2 Available to backorder	Rubber Pin 5	£1.32 £1.10
40	MK268184-2 Available to backorder	Pin 1.5	£0.48 £0.40
41	MK142063-1 Available to backorder	Switch Plate Blue Complete	£20.96 £17.47
42	MK814J63-8 Available to backorder	Btd044 Serial No. Label	£1.74 £1.45
43	MK424517-3 Available to backorder	Cushion	£0.58 £0.48
44	MK454417-3 Available to backorder	Id Plate Blue	£5.88 £4.90
45	MK450522-4 Available to backorder	Lens	£0.48 £0.40
46	MK620462-2 Available to backorder	Controller <	£77.58 £64.65
46	MK620211-7 Available to backorder	Controller	£78.00 £65.00
