Makita BST221 - Cordless Stapler - Power Tool Diagram

Description

Model No. BST221

Cordless Stapler

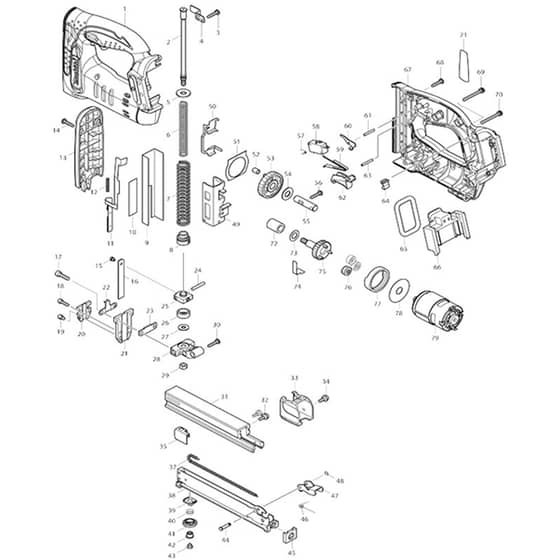

Power Tool Parts Diagrams

	Part No.	Details
1	MK187938-7 Available to backorder	Housing Set x	£73.44 £61.20
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK325635-9 Available to backorder	Guide Bolt S	£13.92 £11.60
2	MK324886-1 Available to backorder	Guide Bolt	£13.92 £11.60
3	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 014 \| 030 \| 056 \| 068)	£0.48 £0.40
4	MK345907-6 Available to backorder	Fix Plate	£2.69 £2.24
5	MK253762-1 Available to backorder	Flat Washer 8	£1.73 £1.44
6	MK234060-2 Available to backorder	Compression Spring 9	£4.80 £4.00
7	MK234061-0 Available to backorder	Compression Spring 13	£8.40 £7.00
7	MK234101-4 Available to backorder	Compression Spring 13 S	£6.72 £5.60
8	MK424135-7 Available to backorder	Spring Holder	£4.68 £3.90
9	MK345978-3 Available to backorder	Guide Plate	£3.84 £3.20
10	MK345906-8 Available to backorder	Upper Plate	£2.38 £1.98
11	MK161468-6 Available to backorder	Safety Lever S	£19.56 £16.30
11	MK165503-2 Available to backorder	Safety Lever	£14.16 £11.80
12	MK234078-3 Available to backorder	Compression Spring 4	£0.89 £0.74
13	MK450539-7 Available to backorder	Front Cover	£4.68 £3.90
16	MK345996-1 Available to backorder	Driver	£14.64 £12.20
17	MK922227-1 Available to backorder	Hex. Socket Head Bolt M5x18	£0.48 £0.40
18	MK266201-2 Available to backorder	Hex.Socket Head Bolt M4x14	£0.70 £0.58
19	MK266199-3 Available to backorder	Hex.Socket Head Bolt M4x6	£0.70 £0.58
20	MK450541-0 Available to backorder	Saefty Lever Guide	£1.90 £1.58
20	MK451801-3 Available to backorder	Saefty Lever Guide S	£4.08 £3.40
20	MK456800-0 Available to backorder	Saefty Lever Guide S	£2.38 £1.98
21	MK158759-4 Available to backorder	Driver Guide Complete	£28.68 £23.90
22	MK345910-7 Available to backorder	Spring Base	£2.53 £2.11
23	MK344670-8 Available to backorder	Set Plate	£1.39 £1.16
24	MK256206-0 Available to backorder	Pin 4	£0.89 £0.74
25	MK313150-5 Available to backorder	Driver Lock	£17.76 £14.80
26	MK424099-5 Available to backorder	Cushion	£1.39 £1.16
27	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
28	MK318267-9 Available to backorder	Holder	£10.44 £8.70
29	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
31	MK813728-9 Available to backorder	Safety Instruction Label (C10)	£0.48 £0.40
31	MK331842-4 Available to backorder	Main Magazine <	£98.28 £81.90
31	MK158762-5 Available to backorder	Main Magazine Complete	£62.76 £52.30

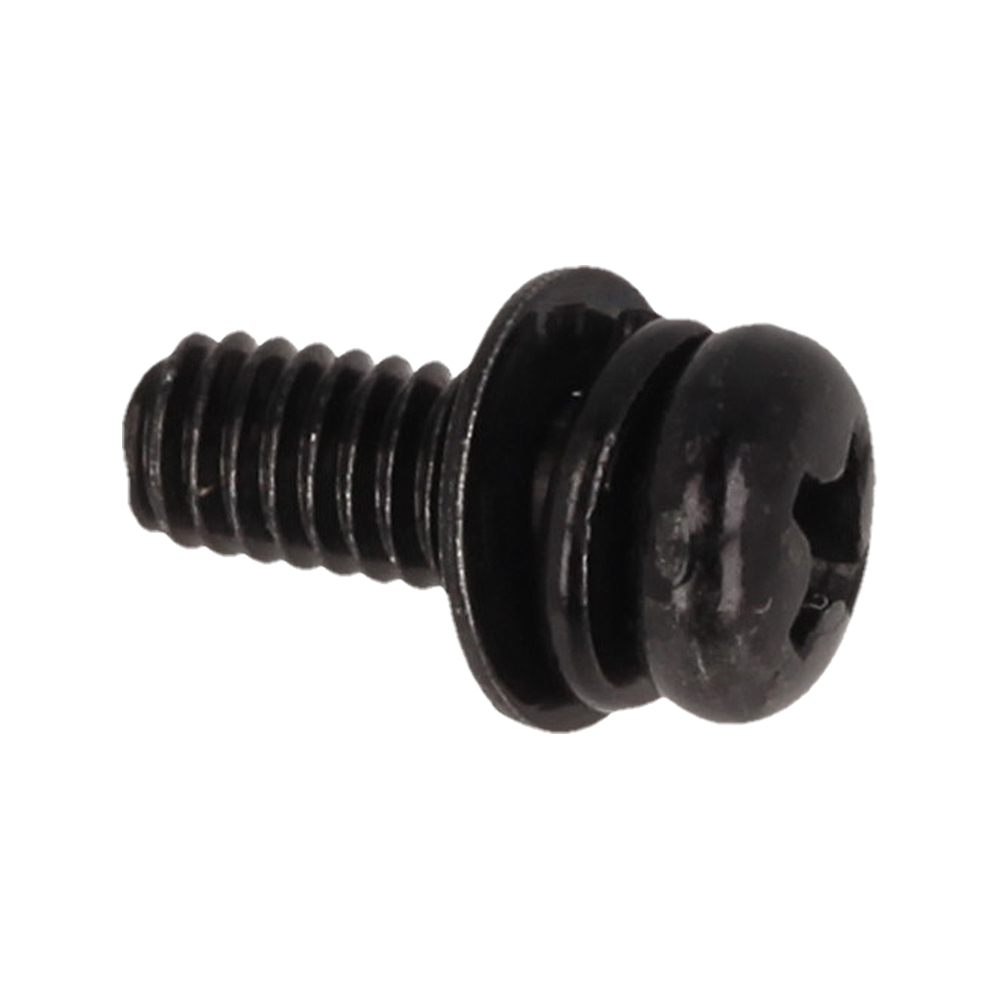

32	MK911113-1 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
33	MK450540-2 Available to backorder	End Cap	£3.60 £3.00
35	MK345997-9 Available to backorder	Pusher	£9.60 £8.00
37	MK231854-6 Available to backorder	Tension Spring 3	£7.44 £6.20
38	MK165532-5 Available to backorder	Sub Magazine	£100.68 £83.90
39	MK450775-5 Available to backorder	Adjuster Base	£1.74 £1.45
40	MK231323-7 Available to backorder	Compression Spring 9	£0.70 £0.58
41	MK450702-2 Available to backorder	Adjuster	£1.73 £1.44
42	MK450774-7 Available to backorder	Lock Sleeve	£1.58 £1.32
43	MK265127-5 Available to backorder	+ Pan Head Screw M4x4	£0.48 £0.40
44	MK268029-4 Available to backorder	Pin 4	£1.73 £1.44
45	MK421637-4 Available to backorder	Magazine End	£2.69 £2.24
46	MK233528-5 Available to backorder	Torsion Spring 5	£1.73 £1.44
47	MK345861-4 Available to backorder	Lever	£7.32 £6.10
48	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
49	MK165506-6 Available to backorder	Hammer	£24.48 £20.40
50	MK345914-9 Available to backorder	Slide Plate	£5.40 £4.50
51	MK343629-2 Available to backorder	Plate	£2.21 £1.84
52	MK257772-0 Available to backorder	Sleeve 5	£4.80 £4.00
53	MK158646-7 Available to backorder	Spur Gear 55 Complete	£19.44 £16.20
54	MK253171-4 Available to backorder	Flat Washer 10	£0.70 £0.58
55	MK324947-7 Available to backorder	Pin 10	£7.92 £6.60
57	MK233531-6 Available to backorder	Torsion Spring 3	£1.74 £1.45
58	MK651891-8 Available to backorder	Switch V-15-3A6	£3.48 £2.90
59	MK232240-4 Available to backorder	Leaf Spring	£6.12 £5.10
60	MK345908-4 Available to backorder	Release Plate	£3.12 £2.60
61	MK256221-4 Available to backorder	Pin 3	£0.48 £0.40
62	MK450536-3 Available to backorder	Trigger	£2.53 £2.11
65	MK424030-1 Available to backorder	Cushion	£1.39 £1.16
66	MK643822-1 Available to backorder	Terminal	£9.72 £8.10
66	MK644812-7 Available to backorder	Terminal x	£19.92 £16.60
66	MK643841-7 Available to backorder	Terminal <	£11.40 £9.50
69	MK911163-6 Available to backorder	Pan Head Screw M4x35	£0.48 £0.40
72	MK214058-5 Available to backorder	Plane Bearing 10	£1.90 £1.58
73	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
74	MK232241-2 Available to backorder	Leaf Spring	£3.48 £2.90
75	MK158647-5 Available to backorder	Spur Gear 7 Complete	£7.32 £6.10
76	MK221961-3 Available to backorder	Spur Gear 27	£3.60 £3.00
77	MK221999-8 Available to backorder	Internal Gear 69	£18.48 £15.40
78	MK267053-4 Available to backorder	Flat Washer 12	£1.03 £0.86
79	MK629125-7 Available to backorder	Dc Motor x	£38.40 £32.00
79	MK629858-4 Available to backorder	Dc Motor	£28.68 £23.90
901	MK195246-2 Available to backorder	Safety Goggle < (A01-1)	£4.32 £3.60
902	MK251314-2 Available to backorder	+ Screw M4x12 (A02)	£0.70 £0.58
903	MK324705-1 Available to backorder	Hook (A03)	£2.05 £1.71
903	MK346317-0 Available to backorder	Hook (Alt.) (A03-1)	£2.00 £1.67
904	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
904	MK419216-0 Available to backorder	Handle (C50)	£1.74 £1.45
904	MK413098-2 Available to backorder	Plate (C20)	£0.70 £0.58
904	MK821550-0 Available to backorder	Connector Plastic Case (A04)	£56.16 £46.80
904	MK419215-2 Available to backorder	Plastic Case Lid (C40)	£6.84 £5.70
904	MK324667-3 Available to backorder	Shaft (C10)	£2.21 £1.84
904	MK417724-5 Available to backorder	Latch (C30)	£0.82 £0.68
904	MK141074-3 Available to backorder	Plastic Carrying Case Complete (A04-1)	£118.20 £98.50
905	MK837640-9 Available to backorder	Inner Tray (A05)	£11.52 £9.60
905	MK807978-6 Available to backorder	Bst221Rfe Plastic Case Label (A05)	£13.68 £11.40
906	MK197600-6 Available to backorder	Battery Bl1830B Set < (A06-4)	£197.76 £164.80
907	MK450128-8 Available to backorder	Battery Cover (A07)	£0.77 £0.64
