Makita BST110 - 14.4V Cordless Stapler - Power Tool Diagram

Description

Model No. BST110

14.4V Cordless Stapler

Power Tool Parts Diagrams

	Part No.	Details
1	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16 (Refs 007 \| 009 \| 020 \| 082)	£0.48 £0.40
2	MK267071-2 Available to backorder	Flat Washer 4	£0.89 £0.74
3	MK187887-8 Available to backorder	Housing Set x	£76.68 £63.90
3	MK188467-3 Available to backorder	Housing Set	£54.96 £45.80
4	MK643811-6 Available to backorder	Terminal	£3.84 £3.20
4	MK643828-9 Available to backorder	Terminal x	£4.68 £3.90
5	MK346317-0 Available to backorder	Hook (Alt.)	£2.00 £1.67
5	MK324705-1 Available to backorder	Hook	£2.05 £1.71
6	MK251314-2 Available to backorder	+ Screw M4x12	£0.70 £0.58
8	MK419450-2 Available to backorder	Front Cover	£6.72 £5.60
10	MK345704-0 Available to backorder	Upper Plate	£1.73 £1.44
11	MK345703-2 Available to backorder	Rail	£26.16 £21.80
12	MK324683-5 Available to backorder	Guide Bolt	£15.48 £12.90
13	MK253762-1 Available to backorder	Flat Washer 8	£1.73 £1.44
14	MK421962-3 Available to backorder	Spring Holder	£6.24 £5.20
15	MK234035-1 Available to backorder	Compression Spring 16	£4.32 £3.60
17	MK345865-6 Available to backorder	Hammer	£12.84 £10.70
18	MK424059-7 Available to backorder	Cushion	£1.03 £0.86
19	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
21	MK318025-3 Available to backorder	Holder	£9.60 £8.00
22	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
23	MK345864-8 Available to backorder	Trigger Plate	£1.39 £1.16
24	MK345857-5 Available to backorder	Driver	£14.52 £12.10
25	MK268189-2 Available to backorder	Pin 4	£4.20 £3.50
26	MK922122-5 Available to backorder	Hex.Socket Head Bolt M4x14	£0.48 £0.40
28	MK158417-2 Available to backorder	Driver Guide Complete	£26.16 £21.80
29	MK345863-0 Available to backorder	Spacer	£2.53 £2.11
30	MK345862-2 Available to backorder	Spacer Plate	£2.53 £2.11
31	MK345860-6 Available to backorder	Set Plate	£1.74 £1.45
32	MK158661-1 Available to backorder	Main Magazine Complete	£48.96 £40.80
32	MK813728-9 Available to backorder	Safety Instruction Label (C10)	£0.48 £0.40
33	MK450224-2 Available to backorder	End Cap	£4.80 £4.00
34	MK911113-1 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
35	MK345858-3 Available to backorder	Pusher	£11.64 £9.70
36	MK165479-3 Available to backorder	Sub Magazine	£67.80 £56.50
37	MK450225-0 Available to backorder	Foot	£2.21 £1.84
38	MK265127-5 Available to backorder	+ Pan Head Screw M4x4	£0.48 £0.40
39	MK268029-4 Available to backorder	Pin 4	£1.73 £1.44
40	MK421637-4 Available to backorder	Magazine End	£2.69 £2.24
41	MK233519-6 Available to backorder	Torsion Spring 5	£1.74 £1.45
42	MK345861-4 Available to backorder	Lever	£7.32 £6.10
43	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
44	MK234036-9 Available to backorder	Compression Spring 5	£6.12 £5.10
45	MK324836-6 Available to backorder	Rod	£2.21 £1.84
46	MK629910-8 Available to backorder	Dc Motor x	£22.68 £18.90
47	MK267053-4 Available to backorder	Flat Washer 12	£1.03 £0.86
48	MK227166-3 Available to backorder	Internal Gear 69	£3.12 £2.60
49	MK232230-7 Available to backorder	Leaf Spring	£4.20 £3.50
50	MK221961-3 Available to backorder	Spur Gear 27	£3.60 £3.00

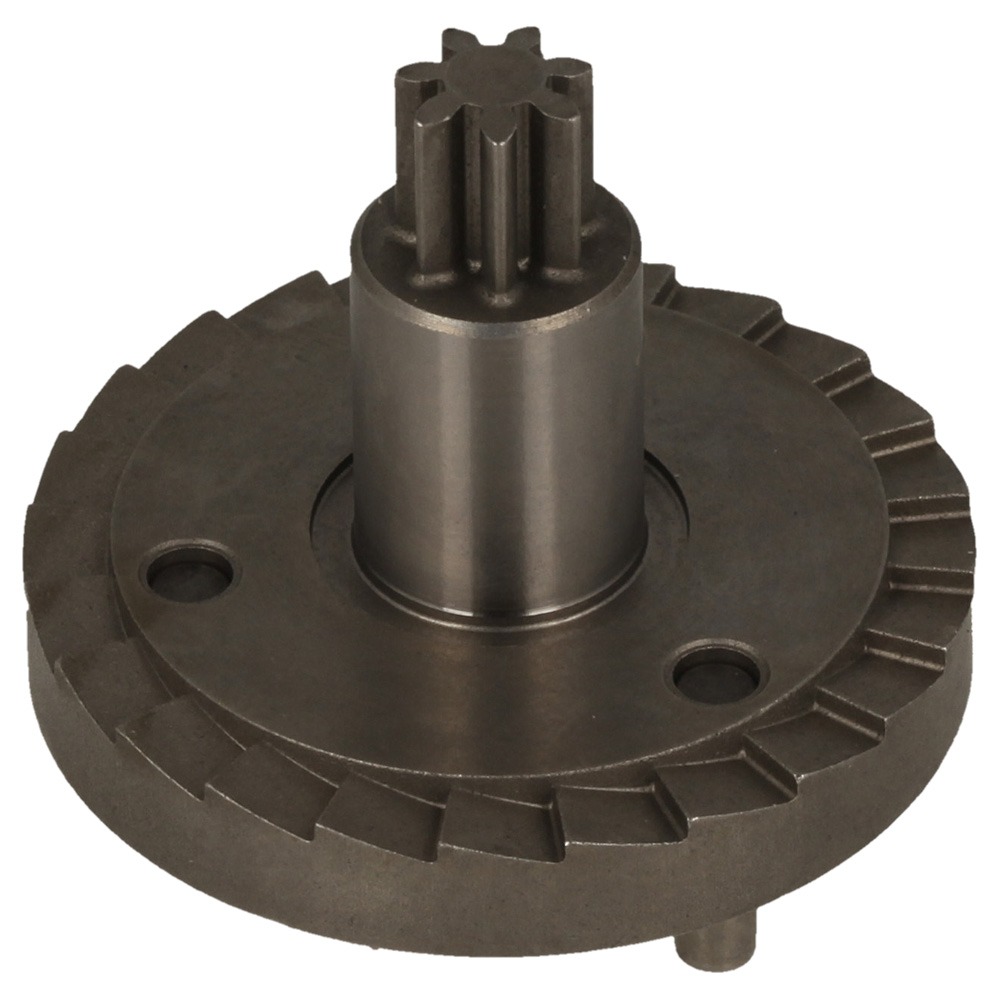

51	MK154973-0 Available to backorder	Spur Gear 7 Complete	£6.48 £5.40
52	MK345773-1 Available to backorder	Anti Back Plate	£3.12 £2.60
53	MK158418-0 Available to backorder	Spur Gear 55 Complete	£37.20 £31.00
54	MK214060-8 Available to backorder	Plane Bearing 10	£1.58 £1.32
55	MK651891-8 Available to backorder	Switch V-15-3A6	£3.48 £2.90
56	MK256299-7 Available to backorder	Pin 3	£0.70 £0.58
57	MK419453-6 Available to backorder	Link Plate	£2.69 £2.24
58	MK231693-4 Available to backorder	Torsion Spring 4	£1.73 £1.44
59	MK419454-4 Available to backorder	Safety Trigger	£3.60 £3.00
61	MK188168-3 Available to backorder	Trigger Set	£14.52 £12.10
62	MK419451-0 Available to backorder	Trigger	£3.48 £2.90
63	MK256771-9 Available to backorder	Pin 2.5	£2.38 £1.98
64	MK257926-9 Available to backorder	Stop Ring E-2.0	£0.48 £0.40
65	MK345707-4 Available to backorder	Swing Arm	£3.60 £3.00
66	MK231694-2 Available to backorder	Torsion Spring 3	£1.58 £1.32
67	MK231695-0 Available to backorder	Torsion Spring 3	£1.58 £1.32
68	MK234037-7 Available to backorder	Compression Spring 5	£0.89 £0.74
69	MK256176-3 Available to backorder	Pin 2.5 (Refs 070 \| 078)	£0.48 £0.40
71	MK345706-6 Available to backorder	Guide Plate	£4.32 £3.60
72	MK231692-6 Available to backorder	Torsion Spring 4	£1.58 £1.32
73	MK168489-9 Available to backorder	Cam Block S	£2.38 £1.98
74	MK233188-3 Available to backorder	Compression Spring 2.4	£0.48 £0.40
75	MK951001-0 Available to backorder	Spring Pin 2-8	£0.48 £0.40
76	MK324923-1 Available to backorder	Push Pin S	£3.48 £2.90
77	MK345708-2 Available to backorder	Switch Arm	£4.32 £3.60
80	MK864861-0 Available to backorder	Bst110 Name Plate	£0.70 £0.58
81	MK911163-6 Available to backorder	Pan Head Screw M4x35	£0.48 £0.40
901	MK194654-4 Available to backorder	Hook Set (F01)	£8.40 £7.00
901	MK195246-2 Available to backorder	Safety Goggle < (A01-1)	£4.32 £3.60
902	MK141074-3 Available to backorder	Plastic Carrying Case Complete (A02-2)	£118.20 £98.50
902	MK821550-0 Available to backorder	Connector Plastic Case (A02)	£56.16 £46.80
902	MK324667-3 Available to backorder	Shaft (C10)	£2.21 £1.84
902	MK417724-5 Available to backorder	Latch (C30)	£0.82 £0.68
902	MK413098-2 Available to backorder	Plate (C20)	£0.70 £0.58
902	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
902	MK194649-7 Available to backorder	Battery Protector (F02)	£18.48 £15.40
902	MK419216-0 Available to backorder	Handle (C50)	£1.74 £1.45
902	MK419215-2 Available to backorder	Plastic Case Lid (C40)	£6.84 £5.70
903	MK837640-9 Available to backorder	Inner Tray (A03)	£11.52 £9.60
904	MK194065-3 Available to backorder	Battery Bl1430 Set (A04)	£177.00 £147.50
906	MK450128-8 Available to backorder	Battery Cover (A06)	£0.77 £0.64
