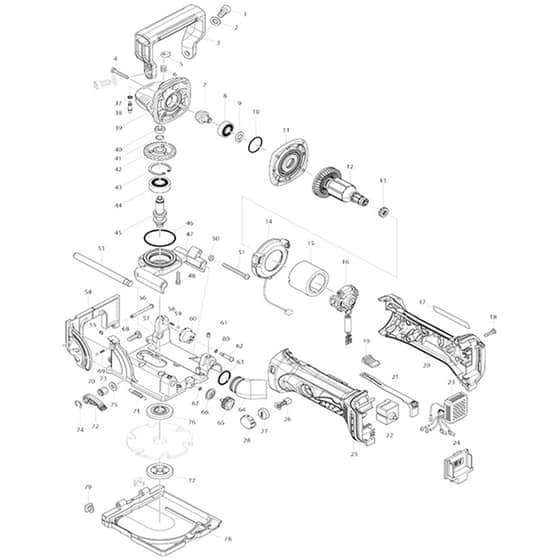

Makita BPJ180 - Cordless Plate Joiner - Power Tool Diagram

Description

Model No. BPJ180

Cordless Plate Joiner

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK922422-3 Available to backorder	Hex. Socket Head Bolt M8x16	£0.58 £0.48
2	MK941202-8 Available to backorder	Flat Washer 8	£0.48 £0.40
3	MK453219-4 Available to backorder	Grip	£3.62 £3.02
4	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
5	MK417771-6 In stock	Pin Cap	£0.48 £0.40
6	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
7	MK227597-6 Available to backorder	Spiral Bevel Gear 11	£9.00 £7.50
8	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.04 £2.53
9	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
10	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
10	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
11	MK317821-6 Available to backorder	Gear Housing Cover	£3.46 £2.88
12	MK619295-0 Available to backorder	Armature (INC. 7-11)	£36.84 £30.70
13	MK421977-0 Available to backorder	Rubber Ring 13	£0.86 £0.72
14	MK631714-6 Available to backorder	Led Circuit	£9.54 £7.95
15	MK638627-2 Available to backorder	Yoke Unit (Alt.)	£26.16 £21.80
16	MK638979-1 Available to backorder	Endbell Complete	£4.36 £3.63
16	MK688165-4 Available to backorder	Line Filter (C10)	£0.86 £0.72
17	MK896980-4 Available to backorder	Bpj180 Name Plate	£0.48 £0.40
18	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
19	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
20	MK188704-5 Available to backorder	Housing Set (INC. 25 *)	£21.08 £17.57
20	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
20	MK187839-9 Available to backorder	Housing Set x (INC. 25)	£19.80 £16.50
21	MK419519-2 Available to backorder	Switch Lever	£1.44 £1.20
22	MK650579-7 Available to backorder	Switch 1246.3223	£9.40 £7.83
23	MK620243-4 Available to backorder	Controller x	£49.98 £41.65
23	MK620072-5 Available to backorder	Controller	£63.34 £52.78
24	MK644808-8 In stock	Terminal x	£3.76 £3.13
26	MK191971-3 In stock	Carbon Brush Cb-430	£5.57 £4.64

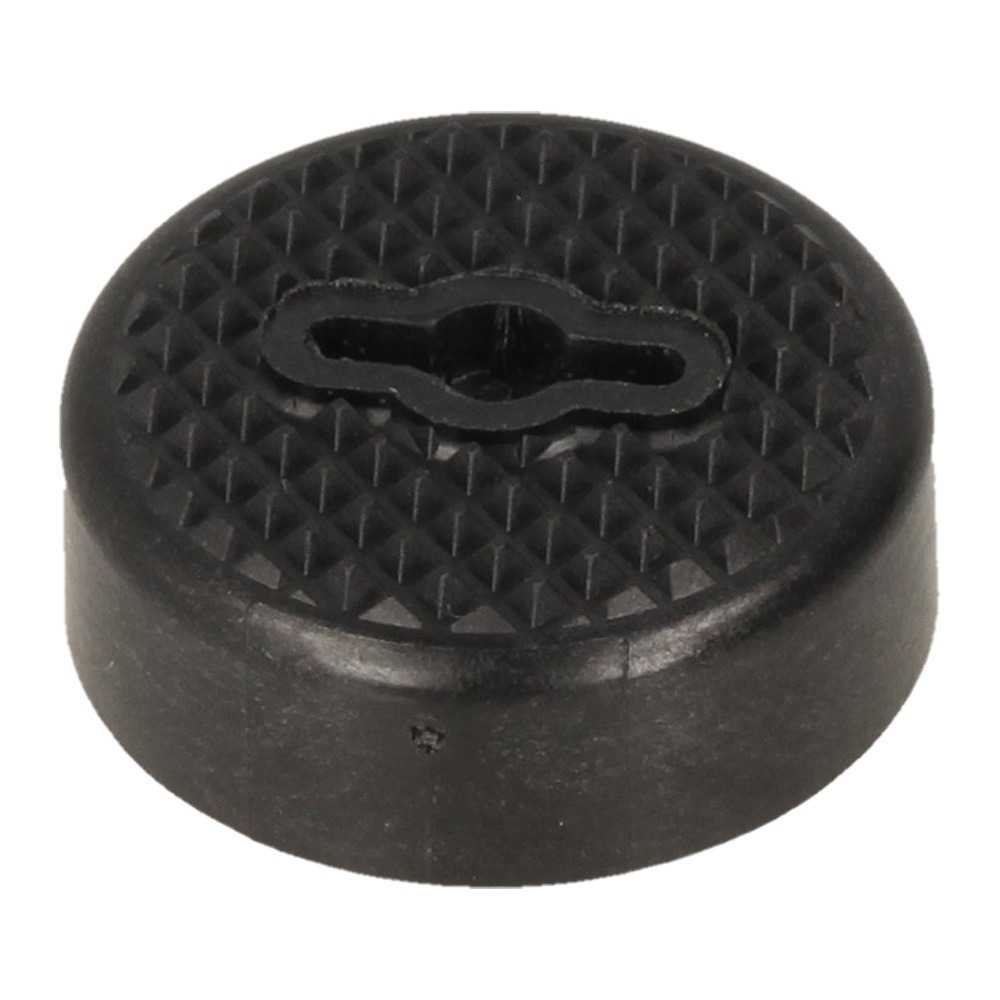

27	MK643954-4 In stock	Brush Holder Cap	£1.16 £0.97
38	MK256496-5 Available to backorder	Shoulder Pin 4	£2.02 £1.68
39	MK141400-6 Available to backorder	Gear Houging Complete	£5.88 £4.90
39	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
40	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.44 £1.20
41	MK233950-6 Available to backorder	Ring Spring 11	£0.86 £0.72
42	MK227598-4 Available to backorder	Spiral Bevel Gear 36	£5.60 £4.67
43	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
44	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
45	MK326120-5 Available to backorder	Spindle	£5.36 £4.47
46	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
47	MK318812-0 Available to backorder	Bearing Box	£27.02 £22.52
48	MK911136-9 Available to backorder	Pan Head Screw M4x20	£0.48 £0.40
50	MK931203-4 Available to backorder	Hex. Nut M5	£0.48 £0.40
51	MK266741-0 Available to backorder	Pan Head Screw M5x50	£0.48 £0.40
53	MK326145-9 Available to backorder	Rod 10	£2.18 £1.82
54	MK141247-8 Available to backorder	Fence Complete	£14.74 £12.28
55	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
56	MK256689-4 Available to backorder	Pin 4	£2.46 £2.05
57	MK318813-8 Available to backorder	Base	£28.60 £23.83
58	MK231282-5 Available to backorder	Compression Spring 2.4	£0.48 £0.40
59	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
60	MK318814-6 Available to backorder	Stopper	£6.52 £5.43
61	MK266264-8 Available to backorder	H.S.Set Screw(Flat Point)M5x	£0.74 £0.62
62	MK266738-9 Available to backorder	+Pan Head Screw M4	£0.58 £0.48
63	MK213008-7 Available to backorder	O Ring 22.4 (Alt.)	£0.74 £0.62
64	MK415252-4 Available to backorder	Dust Nozzle	£2.60 £2.17
65	MK265785-7 Available to backorder	Thumb Screw M5x10	£0.86 £0.72
66	MK232131-9 Available to backorder	Leaf Spring	£2.32 £1.93
67	MK213023-1 Available to backorder	O Ring 4 (Alt.)	£0.48 £0.40
68	MK266737-1 Available to backorder	Flat Head Sq. Neck Bolt M6x20	£0.48 £0.40
71	MK231795-6 Available to backorder	Tension Spring 8	£2.02 £1.68
72	MK272263-0 Available to backorder	Lever 40	£2.76 £2.30
73	MK252159-1 Available to backorder	Hex. Nut M6	£2.18 £1.82
74	MK961014-3 Available to backorder	Stop Ring E-8	£0.48 £0.40
75	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
76	MK224280-6 Available to backorder	Inner Flange 40	£8.54 £7.12
77	MK224505-8 Available to backorder	Lock Nut 10-40	£7.80 £6.50
78	MK318845-5 Available to backorder	Blade Cover	£25.28 £21.07
79	MK424479-5 Available to backorder	Rubber Spike	£0.48 £0.40
901	MK123149-0 Available to backorder	Angle Guide Ass'y (A01)	£27.88 £23.23
902	MK410602-8 Available to backorder	Fastener (C10)	£0.58 £0.48
902	MK123150-5 Available to backorder	Dust Bag Assembly (A02)	£7.12 £5.93
903	MK415579-2 Available to backorder	Set Plate 4 (A03)	£6.06 £5.05
904	MKB-20644 Available to backorder	Cutter 100mmx6T (A04)	£54.18 £45.15
904	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F04-3)	£468.53 £390.44
905	MK196235-0 Available to backorder	Battery Bl1815N Set (Alt.) (F05-2)	£187.42 £156.18
905	MK782401-1 Available to backorder	Lock Nut Wrench 20 (A05)	£4.78 £3.98
907	MK197600-6 Available to backorder	Battery Bl1830B Set < (A07-2)	£197.72 £164.77
908	MK450128-8 Available to backorder	Battery Cover (A08)	£0.64 £0.53
909	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
909	MK453489-5 Available to backorder	Inside Lid (C40)	£6.34 £5.28
909	MK452137-3 Available to backorder	Handle (C20)	£1.88 £1.57
909	MK821551-8 Available to backorder	Connector Plastic Case (A09)	£62.48 £52.07
909	MK162315-4 Available to backorder	Latch (C10)	£2.34 £1.95
909	MK452143-8 Available to backorder	Shaft (C30)	£0.48 £0.40
909	MK141533-7 Available to backorder	Plastic Carrying Case Complete (A09)	£63.22 £52.68
910	MK837648-3 Available to backorder	Inner Tray (A10)	£11.16 £9.30
