Makita BO6050 - 150mm Random Orbit Sander - Power Tool Diagram

Description

Model No. BO6050

150mm Random Orbit Sander

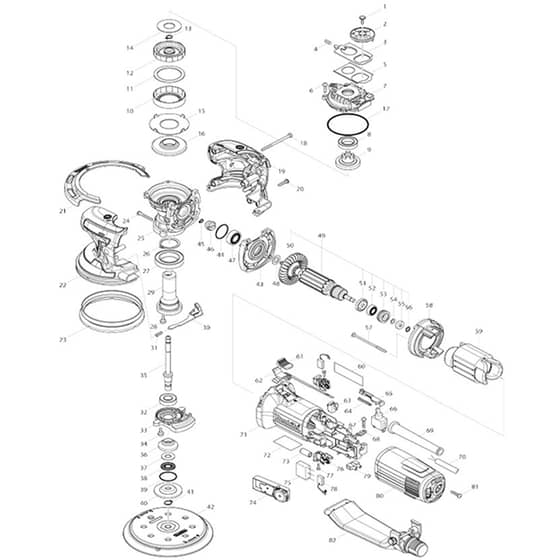

Power Tool Parts Diagrams

	Part No.	Details
1	MK266901-4 Available to backorder	Tapping Screw 4x14	£1.22 £1.02
2	MK456126-0 Available to backorder	Change Knob	£2.38 £1.98
3	MK347150-3 Available to backorder	Change Plate <	£1.73 £1.44
3	MK346914-2 Available to backorder	Change Plate	£1.58 £1.32
4	MK231490-8 Available to backorder	Compression Spring 5	£0.89 £0.74
5	MK346913-4 Available to backorder	Guide Plate	£2.69 £2.24
6	MK266034-5 Available to backorder	Tapping Screw Ct 4x16	£0.48 £0.40
7	MK456117-1 Available to backorder	Top Cover	£4.20 £3.50
8	MK211333-0 Available to backorder	Ball Bearing 6804Llu	£13.56 £11.30
9	MK227386-9 Available to backorder	Spur Gear 31	£41.76 £34.80
10	MK424748-4 Available to backorder	Brake Ring	£4.92 £4.10
11	MK261157-4 Available to backorder	Sponge Washer 40	£1.03 £0.86
12	MK227387-7 Available to backorder	Internal Gear 34	£43.20 £36.00
13	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
14	MK267290-0 Available to backorder	Flat Washer 18	£1.73 £1.44
15	MK346912-6 Available to backorder	Plate	£2.83 £2.36
16	MK227648-5 Available to backorder	Spiral Bevel Gear 43	£39.96 £33.30
17	MK213707-1 Available to backorder	O Ring 65 (Alt.)	£1.58 £1.32
18	MK266060-4 Available to backorder	Tapping Screw 4x65	£1.22 £1.02
19	MK183B68-4 Available to backorder	Head Cover Set (INC. 22)	£23.88 £19.90
20	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 067 \| 081)	£0.48 £0.40
21	MK456127-8 Available to backorder	Pad Protector	£4.44 £3.70
23	MK424747-6 Available to backorder	Rubber Guard	£4.44 £3.70
24	MK266050-7 Available to backorder	Tapping Screw 4x30	£0.70 £0.58
25	MK143324-2 Available to backorder	Gear Housing Complete	£59.28 £49.40
26	MK961110-7 Available to backorder	Retaining Ring S-30	£1.22 £1.02
27	MK211445-9 Available to backorder	Ball Bearing 6906Ddw	£12.72 £10.60
28	MK911119-9 Available to backorder	Pan Head Screw M4x12	£0.48 £0.40
29	MK143325-0 Available to backorder	Outer Spindle Complete	£71.28 £59.40
30	MK143376-3 Available to backorder	Shaft Lock Complete	£4.68 £3.90
31	MK233285-5 Available to backorder	Compression Spring 4	£0.48 £0.40
32	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
33	MK319330-1 Available to backorder	Balancer	£9.00 £7.50
35	MK143375-5 Available to backorder	Inner Spindle Complete	£17.88 £14.90
36	MK326582-7 Available to backorder	Cover	£10.56 £8.80
37	MK253024-7 Available to backorder	Flat Washer 10	£0.89 £0.74
38	MK216413-7 Available to backorder	Thrust Needle Cage 1024	£2.38 £1.98
39	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
40	MK326581-9 Available to backorder	Flange	£15.96 £13.30
41	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
42	MK197314-7 Available to backorder	Pad 150 Set	£69.72 £58.10
43	MK143327-6 Available to backorder	Gear Housing Cover Complete	£29.40 £24.50
45	MK961002-0 Available to backorder	Retaining Ring S-6	£0.48 £0.40
46	MK227647-7 Available to backorder	Spiral Bevel Gear 11	£16.56 £13.80
47	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
48	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
49	MK513443-2 Available to backorder	Armature Ass'y 220-240V (INC. 50-56)	£73.56 £61.30
50	MK240084-8 Available to backorder	Fan 60	£1.39 £1.16
51	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
52	MK210034-7 In stock	Ball Bearing 607Llb	£1.73 £1.44
53	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.39 £1.16
54	MK267756-0 Available to backorder	Wave Washer 6	£0.48 £0.40
55	MK688117-5 Available to backorder	Magnet Sleeve	£2.83 £2.36
56	MK259039-2 Available to backorder	Self Lock 6	£0.48 £0.40
57	MK266049-2 Available to backorder	Tapping Screw 4x75	£1.22 £1.02
58	MK456116-3 Available to backorder	Baffle Plate	£2.83 £2.36
59	MK621773-8 Available to backorder	Field 220-240V	£21.72 £18.10
60	MK851L09-5 Available to backorder	Bo6050 Name Plate	£0.84 £0.70
61	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
62	MK456122-8 Available to backorder	Front Switch Lever	£2.38 £1.98
63	MK456124-4 Available to backorder	Picup Coil Cover	£1.90 £1.58
64	MK233071-4 Available to backorder	Compression Spring 4	£0.48 £0.40
65	MK456123-6 Available to backorder	Rear Switch Lever	£2.21 £1.84
66	MK651423-1 Available to backorder	Switch	£10.92 £9.10
68	MK687682-1 Available to backorder	Strain Relief	£0.70 £0.58
69	MK682566-8 Available to backorder	Cord Guard 10	£1.39 £1.16
70	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.92 £9.10
71	MK456120-2 Available to backorder	Motor Housing	£19.92 £16.60
72	MK807P04-7 Available to backorder	Indication Label	£0.89 £0.74
73	MK688161-2 Available to backorder	Line Filter	£0.70 £0.58
74	MK620465-6 Available to backorder	Controller	£51.60 £43.00
76	MK643770-4 Available to backorder	Brush Holder	£1.74 £1.45
77	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
78	MK194074-2 In stock	Carbon Brush Cb-325	£2.80 £2.33
79	MK654532-5 Available to backorder	Terminal Block 1P	£3.60 £3.00
80	MK456121-0 Available to backorder	Rear Cover	£6.48 £5.40

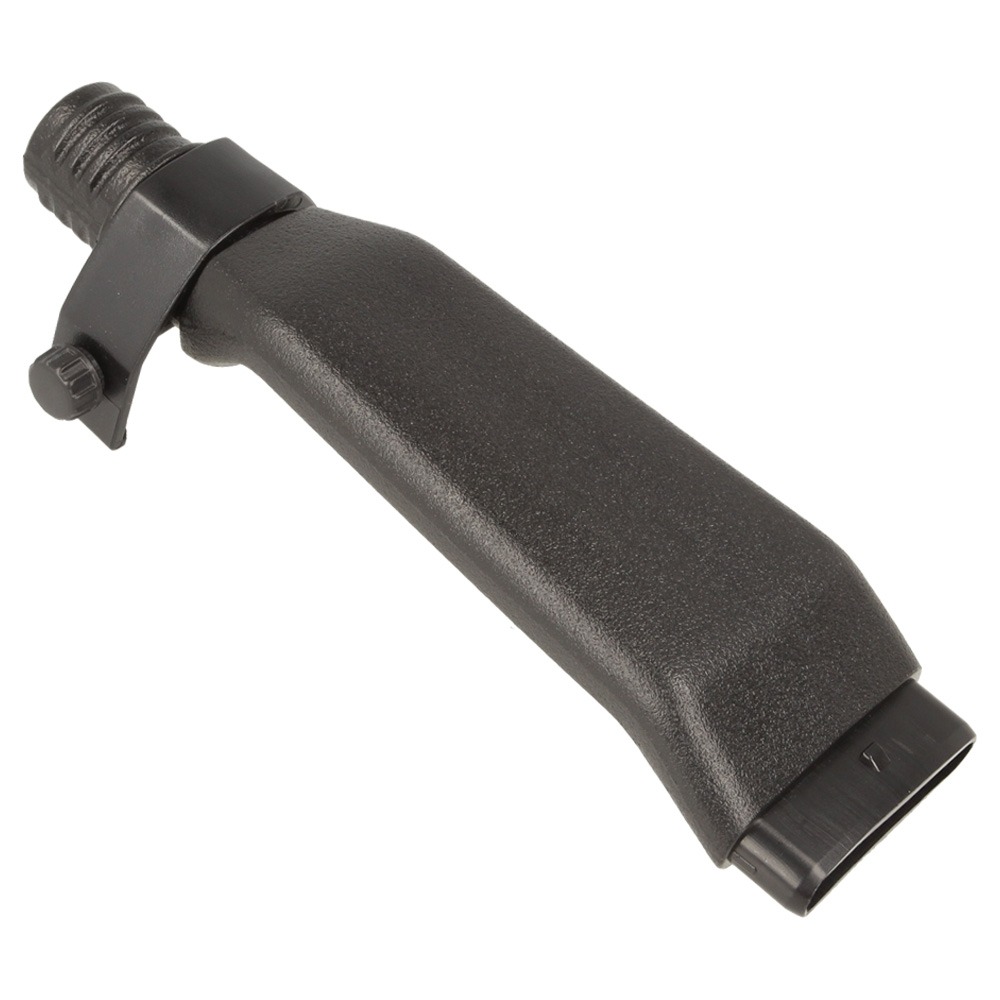

82	MK143326-8 In stock	Nozzle Complete	£15.91 £13.26
901	MK193288-0 Available to backorder	Felt Pad 150 (F01)	£38.40 £32.00
901	MK143328-4 Available to backorder	Grip 36 Complete (A01)	£4.32 £3.60
902	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
902	MK143676-1 Available to backorder	Connector Plastic Case (A02)	£49.92 £41.60
902	MK195546-0 Available to backorder	Front Cuff 24 Set (F02)	£3.48 £2.90
903	MK195547-8 Available to backorder	Front Cuff 22 Set (F03)	£6.24 £5.20
903	MK838246-6 Available to backorder	Inner Tray (A03)	£11.52 £9.60
904	MK807T73-2 Available to backorder	Bo6050J Indication Label (A04)	£9.24 £7.70
905	MK807T74-0 Available to backorder	Bo6050J Plastic Case Label (A05)	£1.73 £1.44
