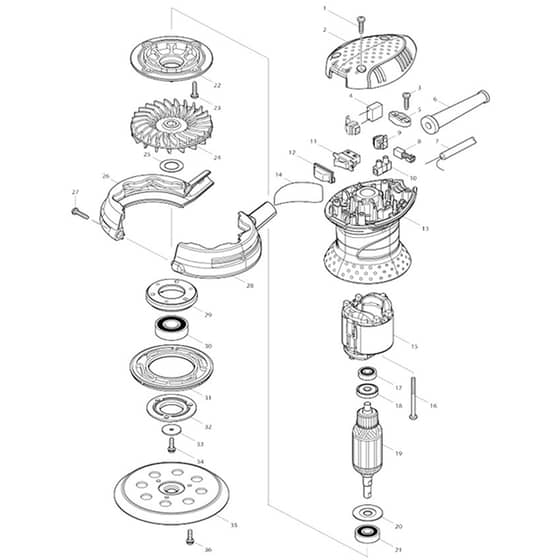

Makita BO5030 - Random Orbit Sander - Power Tool Diagram

Description

Model No. BO5030

Random Orbit Sander

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 003 \| 023 \| 027)	£0.48 £0.40
1	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.) (Refs 003 \| 023 \| 027)	£0.48 £0.40
2	MK450071-1 Available to backorder	Top Cover	£4.62 £3.85
4	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
5	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
6	MK682502-4 Available to backorder	Cord Guard 8-85	£1.32 £1.10
8	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
8	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
9	MK643995-0 Available to backorder	Brush Holder	£1.44 £1.20
10	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
11	MK651527-9 Available to backorder	Switch	£3.34 £2.78
12	MK424039-3 Available to backorder	Switch Cover	£0.74 £0.62
13	MK450671-7 Available to backorder	Motor Housing	£21.96 £18.30
14	MK865589-3 Available to backorder	Bo5030 Name Plate	£0.74 £0.62
15	MK633674-8 Available to backorder	Field 240V	£15.18 £12.65
16	MK266147-2 Available to backorder	Tapping Screw 4x55	£0.74 £0.62
16	MK266415-3 Available to backorder	Tapping Screw 4x55 (Alt.)	£0.48 £0.40
17	MK210017-7 Available to backorder	Ball Bearing 607Ddw	£4.62 £3.85
18	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
19	MK515734-7 Available to backorder	Armature Ass'y 240V	£44.20 £36.83
20	MK267806-1 Available to backorder	Washer 9	£0.58 £0.48
21	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
22	MK450672-5 Available to backorder	Bracket	£2.18 £1.82
24	MK241673-2 Available to backorder	Fan 88	£5.06 £4.22
25	MK267164-5 Available to backorder	Flat Washer 15	£0.58 £0.48
26	MK188579-2 Available to backorder	Skirt L/R Set	£9.98 £8.32
29	MK318304-9 Available to backorder	Bearing Box	£2.32 £1.93
30	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
31	MK424131-5 Available to backorder	Brake Ring	£5.06 £4.22
32	MK318303-1 Available to backorder	Bearing Box Cover	£1.16 £0.97
33	MK253739-6 Available to backorder	Flat Washer 4	£0.86 £0.72
34	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
35	MK743081-8 Available to backorder	Pad 123	£35.62 £29.68
901	MK135246-0 Available to backorder	Dust Box Assembly (A01)	£9.06 £7.55
902	MK192349-3 Available to backorder	Joint 25 (F02)	£8.60 £7.17
906	MK794544-7 Available to backorder	Abrasive Disc 125 #120 (A06)	£15.86 £13.22
907	MK819144-3 Available to backorder	Makita Logo Label (C20)	£0.74 £0.62
907	MK416661-0 Available to backorder	Latch (C10)	£0.88 £0.73
907	MK824562-2 Available to backorder	Plastic Carrying Case (Alt.) (A07-1)	£23.08 £19.23
