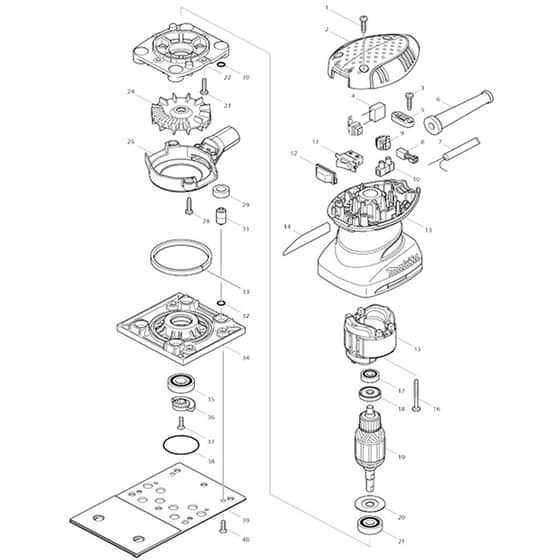

Makita BO4566 - Finishing Sander - Power Tool Diagram

Name: Makita BO4566 - Finishing Sander - Power Tool Diagram
SKU: bo4566_finishing_sander_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita BO4566 - Finishing Sander - Power Tool Diagram

Description

Model No. BO4566

Finishing Sander

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 003 \| 023 \| 028)	£0.48 £0.40
2	MK450071-1 Available to backorder	Top Cover	£4.62 £3.85
4	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
5	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
6	MK682569-2 Available to backorder	Cord Guard 8-85	£0.58 £0.48
8	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
8	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
9	MK643995-0 Available to backorder	Brush Holder	£1.44 £1.20
10	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
11	MK651527-9 Available to backorder	Switch	£3.34 £2.78
12	MK424039-3 Available to backorder	Switch Cover	£0.74 £0.62
13	MK450072-9 Available to backorder	Motor Housing	£11.84 £9.87
15	MK654086-2 Available to backorder	Receptacle (Alt.) (C11)	£2.18 £1.82
15	MK593649-8 Available to backorder	Field Ass'y 240V	£9.98 £8.32
15	MK654069-2 Available to backorder	Receptacle (C10)	£0.48 £0.40
16	MK266048-4 Available to backorder	Tapping Screw 4x40	£0.58 £0.48
17	MK210062-2 Available to backorder	Ball Bearing 607Zz (Alt.)	£1.16 £0.97
17	MK210034-7 In stock	Ball Bearing 607Llb	£1.44 £1.20
18	MK681652-2 Available to backorder	Insulation Washer	£0.58 £0.48
19	MK515708-8 Available to backorder	Armature Ass'y 220-240V	£18.78 £15.65
20	MK267806-1 Available to backorder	Washer 9	£0.58 £0.48
21	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
22	MK450070-3 Available to backorder	Bearing Box	£3.34 £2.78
24	MK241671-6 Available to backorder	Fan 63	£5.06 £4.22
25	MK450069-8 Available to backorder	Fan Guide	£1.44 £1.20
29	MK424023-8 Available to backorder	Sponge Sleeve 9	£0.48 £0.40
30	MK213983-7 Available to backorder	O Ring 4 (Alt.)	£0.58 £0.48
31	MK318151-8 Available to backorder	Foot	£0.58 £0.48
33	MK424684-4 Available to backorder	Sponge 7x87x3 (Alt.)	£0.48 £0.40
35	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
37	MK912117-6 Available to backorder	Countersunk Head Screw M4x12	£0.48 £0.40
38	MK213510-0 Available to backorder	O Ring 36 (Alt.)	£1.44 £1.20
39	MK158326-5 Available to backorder	Plate Complete	£9.98 £8.32
901	MK135246-0 Available to backorder	Dust Box Assembly S (A01-1)	£9.06 £7.55
901	MK193932-9 Available to backorder	Paper Dust Bag Holder Set (A01)	£19.80 £16.50
902	MK194746-9 Available to backorder	Paper Dust Bag Set S (A02-1)	£8.02 £6.68
902	MK193712-3 Available to backorder	Paper Dust Bag Set (A02)	£7.28 £6.07
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK821550-0 Available to backorder	Connector Plastic Case (Typ (A03)	£54.34 £45.28
904	MK838029-4 Available to backorder	Inner Tray (A04)	£11.16 £9.30
