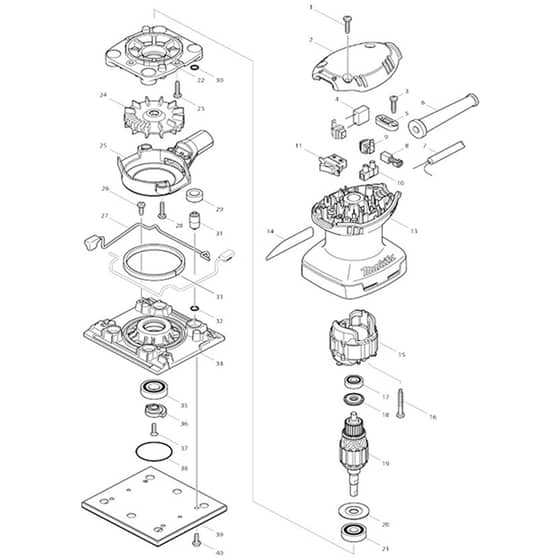

Makita BO4557 - Finishing Sander - Power Tool Diagram

Description

Model No. BO4557

Finishing Sander

Power Tool Parts Diagrams

	Part No.	Details
1	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 003 \| 023 \| 028)	£0.48 £0.40
2	MK419916-2 Available to backorder	Top Cover	£2.38 £1.98
4	MK645185-1 Available to backorder	Noise Suppressor	£0.89 £0.74
5	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
6	MK682569-2 Available to backorder	Cord Guard 8-85	£0.70 £0.58
8	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£5.04 £4.20
8	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.40 £4.50
9	MK643995-0 Available to backorder	Brush Holder	£1.58 £1.32
10	MK654532-5 Available to backorder	Terminal Block 1P	£3.60 £3.00
11	MK651527-9 Available to backorder	Switch	£3.48 £2.90
13	MK450463-4 Available to backorder	Motor Housing	£6.72 £5.60
14	MK864750-9 Available to backorder	Bo4557 Name Plate	£0.89 £0.74
15	MK635099-2 Available to backorder	Field 240V	£9.84 £8.20
16	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
17	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.39 £1.16
18	MK681661-1 Available to backorder	Insulation Washer	£0.89 £0.74
18	MK681675-0 Available to backorder	Insulation Washer (Alt.)	£0.48 £0.40
19	MK510265-1 Available to backorder	Armature Ass'y 240V (Alt.)	£20.28 £16.90
20	MK267130-2 Available to backorder	Flat Washer 9 <	£0.48 £0.40
20	MK267806-1 Available to backorder	Washer 9	£0.70 £0.58
21	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
22	MK450464-2 Available to backorder	Bearing Box	£2.69 £2.24
24	MK241671-6 Available to backorder	Fan 63	£5.28 £4.40
25	MK450069-8 Available to backorder	Fan Guide	£1.58 £1.32
26	MK266020-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
27	MK162259-8 Available to backorder	Lever Complete	£1.74 £1.45
29	MK424023-8 Available to backorder	Sponge Sleeve 9	£0.48 £0.40
30	MK213983-7 Available to backorder	O Ring 4 (Alt.)	£0.70 £0.58
31	MK318151-8 Available to backorder	Foot	£0.70 £0.58
33	MK424684-4 Available to backorder	Sponge 7x87x3 (Alt.)	£0.48 £0.40
34	MK450067-2 Available to backorder	Base	£4.32 £3.60
35	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
36	MK313141-6 Available to backorder	Balancer	£0.89 £0.74
37	MK912117-6 Available to backorder	Countersunk Head Screw M4x12	£0.48 £0.40
38	MK213510-0 Available to backorder	O Ring 36 (Alt.)	£1.73 £1.44
39	MK158324-9 Available to backorder	Pad Complete	£5.52 £4.60
901	MK135246-0 Available to backorder	Dust Box Assembly S (A01-1)	£9.36 £7.80
901	MK193932-9 Available to backorder	Paper Dust Bag Holder Set (A01)	£20.52 £17.10
902	MK194746-9 Available to backorder	Paper Dust Bag Set S (A02-1)	£8.28 £6.90
902	MK193712-3 Available to backorder	Paper Dust Bag Set (A02)	£7.56 £6.30
903	MK450066-4 Available to backorder	Punch Plate (A03)	£1.90 £1.58
905	MK419360-3 Available to backorder	Handle (C20)	£1.39 £1.16
905	MK163455-1 Available to backorder	Latch (C10)	£1.74 £1.45
