Makita BJN160 - 1.6mm Cordless Nibbler - Power Tool Diagram

Description

Model No. BJN160

1.6mm Cordless Nibbler

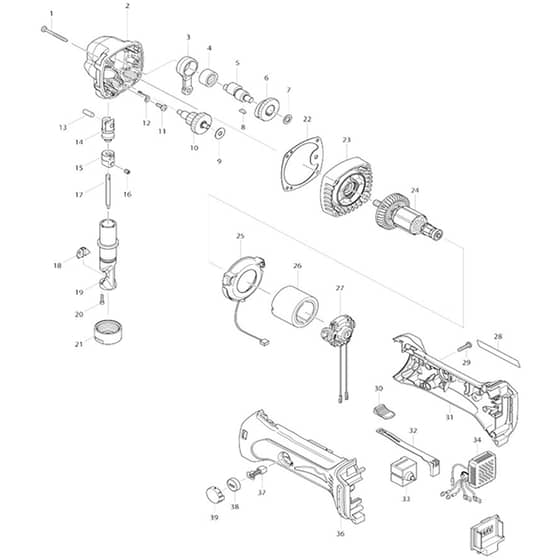

Power Tool Parts Diagrams

	Part No.	Details
1	MK266048-4 Available to backorder	Tapping Screw 4x40	£0.70 £0.58
2	MK800P78-7 Available to backorder	Indication Label (C10)	£0.89 £0.74
2	MK141878-3 Available to backorder	Gear Housing Complete	£80.40 £67.00
3	MK331438-1 Available to backorder	Rod	£16.92 £14.10
4	MK212222-2 Available to backorder	Needle Bearing 1612	£9.48 £7.90
5	MK326249-7 Available to backorder	Crank Shaft	£46.44 £38.70
6	MK227314-4 Available to backorder	Spur Gear 31	£53.16 £44.30
7	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
8	MK254002-0 Available to backorder	Woodruff Key 3	£0.70 £0.58
9	MK267133-6 Available to backorder	Flat Washer 6	£1.03 £0.86
10	MK226158-9 Available to backorder	Gear Complete 16-36	£59.16 £49.30
11	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
12	MK344116-4 Available to backorder	Stopper	£1.73 £1.44
13	MK256111-1 Available to backorder	Pin 6	£1.58 £1.32
14	MK322703-9 Available to backorder	Ram	£12.12 £10.10
15	MK322702-1 Available to backorder	Punch Holder	£27.36 £22.80
16	MK265880-3 Available to backorder	H.S.Set Screw(Cone Point)M5x8	£3.12 £2.60
17	MKA-83951 Available to backorder	Punch	£36.36 £30.30
18	MKA-15051 Available to backorder	Die	£34.32 £28.60
19	MK322701-3 Available to backorder	Die Holder	£140.04 £116.70
20	MK266080-8 Available to backorder	Hex. Socket Head Bolt M3x12	£0.48 £0.40
21	MK322748-7 Available to backorder	Lock Nut	£11.52 £9.60
22	MK442191-5 Available to backorder	Gasket	£2.69 £2.24
23	MK213961-7 Available to backorder	O Ring 22 (Alt.) (C10)	£0.48 £0.40
23	MK141877-5 Available to backorder	Gear Housing Cover Comple	£71.16 £59.30
24	MK619310-0 Available to backorder	Armature	£76.20 £63.50
25	MK631714-6 Available to backorder	Led Circuit	£9.84 £8.20
26	MK638627-2 Available to backorder	Yoke Unit (Alt.)	£27.12 £22.60
27	MK638979-1 Available to backorder	Endbell Complete	£4.56 £3.80
27	MK688165-4 Available to backorder	Line Filter (C10)	£1.03 £0.86
28	MK814B64-8 Available to backorder	Bjn160 Name Plate	£0.70 £0.58
29	MK266326-2 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
29	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
30	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
31	MK187840-4 Available to backorder	Housing Set x (INC. 36)	£18.96 £15.80
31	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
32	MK419519-2 Available to backorder	Switch Lever	£1.73 £1.44
33	MK650579-7 Available to backorder	Switch 1246.3223	£9.72 £8.10
34	MK631712-0 Available to backorder	Controller	£37.20 £31.00
34	MK620242-6 Available to backorder	Controller x	£48.96 £40.80
35	MK643867-9 Available to backorder	Terminal x	£5.88 £4.90
35	MK643811-6 Available to backorder	Terminal	£3.84 £3.20
37	MK191971-3 In stock	Carbon Brush Cb-430	£5.72 £4.77
38	MK643929-3 Available to backorder	Brush Holder Cap	£0.89 £0.74
901	MK781028-4 Available to backorder	Wrench 32 (A01)	£3.24 £2.70
902	MK783208-8 Available to backorder	Hex. Wrench 2.5 (A02)	£0.86 £0.72
903	MK821551-8 Available to backorder	Connector Plastic Case (Typ (A03-1)	£64.68 £53.90
903	MK821550-0 Available to backorder	Connector Plastic Case (Typ (A03)	£56.16 £46.80
903	MK197615-3 Available to backorder	Battery Bl1430B Set (Alt.) (F03-3)	£246.60 £205.50
903	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
905	MK837678-4 Available to backorder	Inner Tray (A05)	£11.52 £9.60
907	MK194065-3 Available to backorder	Battery Bl1430 Set (A07)	£177.00 £147.50
908	MK450128-8 Available to backorder	Battery Cover (A08)	£0.77 £0.64
