Makita BHX2501 - Engine Blower - Power Tool 05 Diagram

Description

Model No. BHX2501

Engine Blower

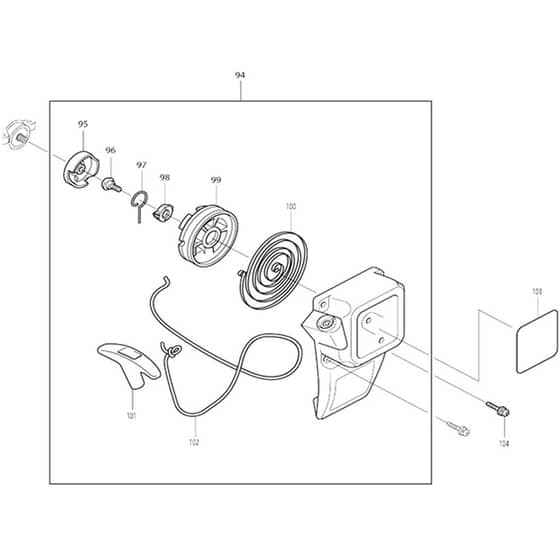

Power Tool 05 Parts Diagrams

	Part No.	Details
94	MK125917-7 Available to backorder	Starter Cover Assy	£19.44 £16.20
95	MK168483-1 Available to backorder	Pulley	£1.73 £1.44
96	MK266585-8 Available to backorder	Tapping Screw 5x12	£1.90 £1.58
97	MK325923-4 Available to backorder	Swing Arm	£1.03 £0.86
99	MK451937-8 Available to backorder	Reel	£5.28 £4.40
100	MK232258-5 Available to backorder	Spiral Spring	£9.60 £8.00
101	MK424319-7 Available to backorder	Starter Knob	£2.38 £1.98
102	MK444019-3 Available to backorder	Starter Rope	£1.58 £1.32
103	MK819L97-8 Available to backorder	Makita Logo Label (Alt.)	£0.48 £0.40

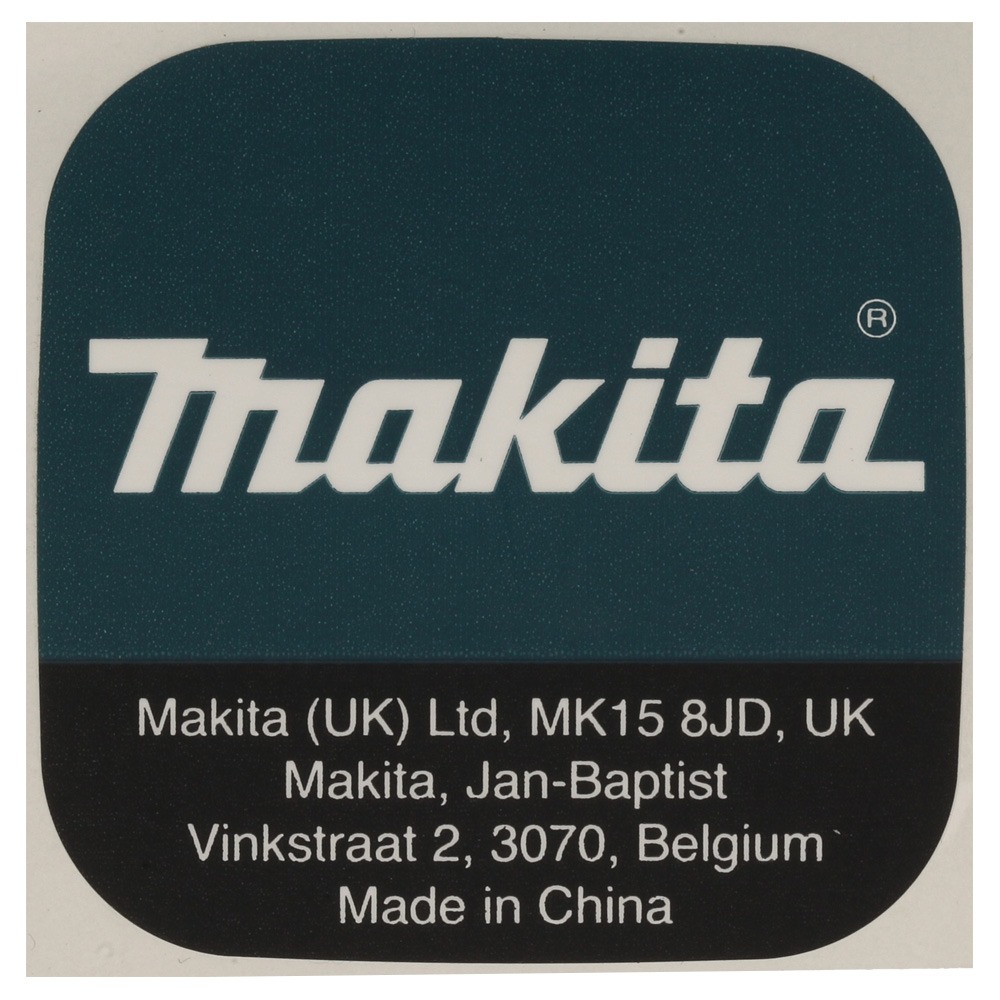

103	MK893304-5 Available to backorder	Makita Logo Label	£3.72 £3.10
104	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
104	MK911526-6 Available to backorder	P.H.Screw M4x16 With Wrm <	£0.70 £0.58
