Makita BHX2501 - Engine Blower - Power Tool 01 Diagram

Description

Model No. BHX2501

Engine Blower

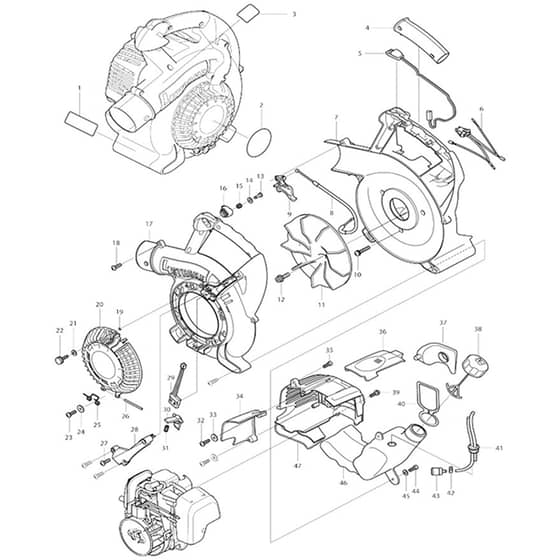

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK892460-8 Available to backorder	Caution Label	£3.76 £3.13
2	MK892426-8 Available to backorder	Model No. Label Bhx2501	£3.46 £2.88
3	MK810450-9 Available to backorder	Caution Label	£1.52 £1.27
4	MK273665-3 Available to backorder	Grip	£5.94 £4.95
5	MK638640-0 Available to backorder	Switch Complete	£5.06 £4.22
6	MK638758-7 Available to backorder	Lead Unit	£10.98 £9.15
7	MK455202-7 Available to backorder	Volute Case R S	£22.24 £18.53
7	MK450958-7 Available to backorder	Volute Case R	£69.62 £58.02
8	MK168518-8 Available to backorder	Control Cable	£5.78 £4.82
9	MK452607-2 Available to backorder	Throttle Lever	£6.16 £5.13
9	MK456960-8 Available to backorder	Throttle Lever S	£3.92 £3.27
10	MK922253-0 Available to backorder	H.S.H.Bolt M5x30 With Wr <	£1.16 £0.97
10	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.58 £0.48
11	MK240113-7 Available to backorder	Fan 180	£15.62 £13.02
12	MK265A06-3 Available to backorder	Hex.Socket Head Bolt M6x20 (Alt.)	£1.78 £1.48
12	MK265584-7 Available to backorder	Hex Socket Head Bolt M6x20	£1.26 £1.05
13	MK265878-0 Available to backorder	Tapping Screw Bt 5x16 (Refs 018 \| 023 \| 027 \| 032 \| 035 \| 044)	£0.48 £0.40
13	MK265995-6 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
13	MK265A48-7 Available to backorder	Tapping Screw 4x18 <	£0.48 £0.40
14	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
15	MK231025-5 Available to backorder	Compression Spring 8	£0.48 £0.40
16	MK452608-0 Available to backorder	Lock Button	£5.48 £4.57
17	MK123708-0 Available to backorder	Volute Case Assembly L (Black) S	£21.96 £18.30
19	MK213022-3 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
20	MK452604-8 Available to backorder	Protector (Black)	£14.44 £12.03
21	MK424180-2 Available to backorder	Gasket	£0.58 £0.48
22	MK265782-3 Available to backorder	Thumb Screw M4	£1.60 £1.33
24	MK267394-8 Available to backorder	Flat Washer 5	£0.58 £0.48
25	MK233536-6 Available to backorder	Torsion Spring 5	£1.44 £1.20
26	MK268230-1 Available to backorder	Rod 4	£0.82 £0.68
28	MK452606-4 Available to backorder	Switch Cover (Black)	£6.52 £5.43
29	MK638759-5 Available to backorder	Switch Unit	£19.64 £16.37
30	MK452609-8 Available to backorder	Switch Lever	£4.20 £3.50
31	MK233133-8 Available to backorder	Compression Spring 4	£0.74 £0.62
33	MK941051-3 Available to backorder	Flat Washer 4	£0.48 £0.40
34	MK452605-6 Available to backorder	Inner Cover	£17.92 £14.93
36	MK450964-2 Available to backorder	Plug Cover	£1.74 £1.45
37	MK424395-1 Available to backorder	Oil Guard	£7.52 £6.27
38	MK125472-9 Available to backorder	Fuel Tank Cap Assembly	£6.94 £5.78
38	MK127108-6 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£9.24 £7.70
39	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
39	MK911526-6 Available to backorder	P.H.Screw M4x16 With Wrm <	£0.58 £0.48
40	MK810455-9 Available to backorder	Caution Plate	£1.16 £0.97
41	MK158911-4 Available to backorder	Tube Complete	£4.78 £3.98
42	MK345920-4 Available to backorder	Hose Clamp	£0.58 £0.48
43	MK163447-0 In stock	Fuel Filter	£2.69 £2.24
46	MK450988-8 Available to backorder	Fuel Tank	£8.96 £7.47
46	MK6653500000 Available to backorder	Fuel Tank (Alt.)	£23.90 £19.92
47	MK452630-7 Available to backorder	Engine Cover	£9.54 £7.95
902	MK688172-7 Available to backorder	Line Filter (E02)	£0.86 £0.72
