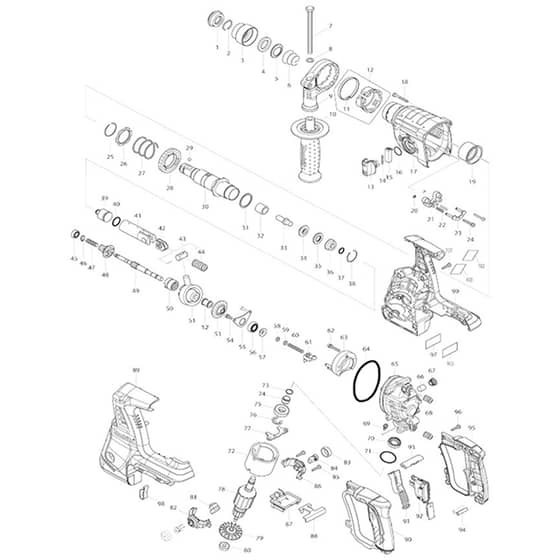

Makita BHR262 - 26mm Crdls Combination Hammer - Power Tool Diagram

Description

Model No. BHR262

26mm Crdls Combination Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
2	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
3	MK417629-9 Available to backorder	Chuck Cover	£0.74 £0.62
4	MK257241-1 Available to backorder	Ring 21	£1.32 £1.10
5	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
6	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.10 £0.92
8	MK345280-4 Available to backorder	Hex. Washer	£0.58 £0.48
9	MK417630-4 Available to backorder	Grip Base	£1.74 £1.45
10	MK158057-6 Available to backorder	Grip 36 Complete	£6.34 £5.28
13	MK450980-4 Available to backorder	Change Lever	£4.48 £3.73
14	MK233279-0 Available to backorder	Compression Spring 4	£0.74 £0.62
15	MK453706-3 Available to backorder	Lock Button	£0.74 £0.62
16	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
17	MK158945-7 Available to backorder	Gear Housing Complete	£14.32 £11.93
17	MK213345-9 Available to backorder	Oil Seal 25 (C10)	£1.74 £1.45
18	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
19	MK153290-5 Available to backorder	Needle Bearing Complete	£4.62 £3.85
20	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
21	MK417796-0 Available to backorder	Guide Base	£0.74 £0.62
22	MK233344-5 Available to backorder	Compression Spring 4	£0.48 £0.40
23	MK163430-7 Available to backorder	Lock Plate Complete	£2.02 £1.68
24	MK266374-1 Available to backorder	Tapping Screw 4x25	£0.48 £0.40
25	MK233929-7 Available to backorder	Ring Spring 29	£0.48 £0.40
26	MK267460-1 Available to backorder	Washer 31	£1.44 £1.20
27	MK233401-9 Available to backorder	Compression Spring 32	£1.60 £1.33
28	MK227109-5 Available to backorder	Spur Gear 51	£11.42 £9.52
29	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
30	MK158574-6 Available to backorder	Tool Holder Complete	£37.56 £31.30
31	MK267229-3 Available to backorder	Flat Washer 28	£0.58 £0.48
32	MK331769-8 Available to backorder	Sleeve 9	£2.18 £1.82
33	MK324669-9 Available to backorder	Impact Bolt	£2.46 £2.05
34	MK324402-9 Available to backorder	Ring 10	£1.32 £1.10
35	MK421955-0 Available to backorder	Cushion Ring 13	£1.74 £1.45
36	MK324216-6 Available to backorder	O Ring Case (Alt.)	£6.06 £5.05
37	MK213073-6 Available to backorder	O Ring 9 (Alt.)	£1.16 £0.97
38	MK233917-4 Available to backorder	Ring Spring 28	£0.48 £0.40
39	MK324214-0 Available to backorder	Striker	£2.46 £2.05
40	MK213227-5 Available to backorder	O Ring 16 (Alt.)	£1.32 £1.10
41	MK318132-2 Available to backorder	Piston Cylinder	£13.28 £11.07
42	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
43	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
44	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
45	MK211012-0 Available to backorder	Ball Bearing 606Zz	£12.86 £10.72
46	MK961003-8 Available to backorder	Retaining Ring S-7	£0.48 £0.40
47	MK233343-7 Available to backorder	Compression Spring 7	£0.48 £0.40
48	MK227179-4 Available to backorder	Spur Gear 10	£20.38 £16.98
49	MK325976-3 Available to backorder	Cam Shaft	£9.54 £7.95
50	MK331992-5 Available to backorder	Clutch Cam	£8.24 £6.87
51	MK219014-0 Available to backorder	Swash Bearing 10	£50.72 £42.27
51	MK219021-3 Available to backorder	Swash Bearing 10 (Alt.)	£17.20 £14.33
52	MK325640-6 Available to backorder	Sleeve 9	£1.32 £1.10
53	MK227549-7 Available to backorder	Spiral Bevel Gear 26	£7.80 £6.50
54	MK266273-7 Available to backorder	Hex. Socket Head Bolt M4x12	£0.58 £0.48
55	MK346038-4 Available to backorder	Bearing Retainer B	£0.74 £0.62
56	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
57	MK324212-4 Available to backorder	Ring 8	£5.48 £4.57
58	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
59	MK941102-2 Available to backorder	Flat Washer 5	£0.48 £0.40
60	MK233342-9 Available to backorder	Compression Spring 6	£0.48 £0.40
61	MK345220-2 Available to backorder	Change Plate	£0.86 £0.72
62	MK922148-7 Available to backorder	Hex. Socket Head Bolt M4x25	£0.74 £0.62
63	MK158944-9 Available to backorder	Inner Support Complete	£8.24 £6.87
64	MK213728-3 Available to backorder	O-Ring 68	£1.32 £1.10
65	MK318392-6 Available to backorder	Inner Housing	£23.68 £19.73
66	MK443143-9 Available to backorder	Filter	£0.86 £0.72
67	MK424185-2 Available to backorder	Cap	£0.74 £0.62
68	MK234097-9 Available to backorder	Compression Spring 10	£0.58 £0.48
70	MK213231-4 Available to backorder	Oil Seal 15	£7.08 £5.90
71	MK213437-4 Available to backorder	O Ring 28 (Alt.)	£0.58 £0.48
72	MK632828-4 Available to backorder	Yoke Unit	£25.28 £21.07
73	MK961082-6 Available to backorder	Retaining Ring Wr12	£1.60 £1.33
74	MK331596-3 Available to backorder	Sleeve 12	£5.06 £4.22
75	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
76	MK961016-9 Available to backorder	Stop Ring E-10	£0.48 £0.40
77	MK346037-6 Available to backorder	Bearing Retainer A	£1.74 £1.45
78	MK519235-7 Available to backorder	Armature Ass'y 36V (INC. 73-76 79 80)	£39.28 £32.73
79	MK240037-7 Available to backorder	Fan 44	£4.34 £3.62
80	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.34 £2.78
81	MK631850-8 Available to backorder	Light Circuit	£12.42 £10.35
82	MK688165-4 Available to backorder	Line Filter (C10)	£0.86 £0.72
82	MK688172-7 Available to backorder	Line Filter (C20)	£0.86 £0.72
82	MK638945-8 Available to backorder	Brush Holder Complete (INC. 86)	£13.58 £11.32
83	MK643829-7 In stock	Holder Cap	£0.58 £0.48
84	MK195023-2 Available to backorder	Carbon Brush Set Cb-442 (Alt.)	£5.88 £4.90
85	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 096 \| 101)	£0.48 £0.40
87	MK638978-3 Available to backorder	Terminal Unit	£7.08 £5.90
88	MK346039-2 Available to backorder	Support Plate	£1.32 £1.10
89	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
89	MK263025-7 Available to backorder	Rubber Pin 4 (C20)	£1.60 £1.33
89	MK187231-9 Available to backorder	Housing Set (INC. 99)	£31.78 £26.48
90	MK188639-0 Available to backorder	Handle Set (INC. 95)	£10.56 £8.80
91	MK450981-2 Available to backorder	Switch Lever	£1.16 £0.97
92	MK650619-1 Available to backorder	Switch C3Hz-2A-Pblm	£58.06 £48.38
93	MK450979-9 Available to backorder	F/R Change Lever	£0.86 £0.72
94	MK256261-2 Available to backorder	Pin 6	£1.02 £0.85
97	MK897473-4 Available to backorder	Bhr262 Serial No. Label	£0.70 £0.58
98	MK344903-1 Available to backorder	Vibration Isolator Plate	£1.60 £1.33
100	MK897459-8 Available to backorder	Bhr262 Name Plate	£0.48 £0.40
102	MK893038-0 Available to backorder	Clear Label	£0.48 £0.40
103	MK893072-0 Available to backorder	Clear Label	£0.48 £0.40
901	MK195189-8 Available to backorder	Hammer Service Kit (B01)	£21.72 £18.10
901	MK198993-4 In stock	Grease Vessel Set < (A01-1)	£8.74 £7.28
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
902	MK324219-0 Available to backorder	Depth Gauge (A02)	£0.74 £0.62
903	MK443122-7 Available to backorder	Cloth (A03)	£3.34 £2.78
905	MK451153-2 Available to backorder	Battery Cover (A05)	£2.02 £1.68
905	MK192349-3 Available to backorder	Joint 25 (F05)	£8.60 £7.17
906	MKDC36RA Available to backorder	Dc36Ra Fast Charger (A06)	£284.00 £236.67
907	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
907	MK821552-6 Available to backorder	Connector Plastic Case (A07)	£74.82 £62.35
908	MK837650-6 Available to backorder	Inner Tray (A08)	£11.16 £9.30
