Makita BHR261 - Cordless Combination Hammer - Power Tool Diagram

Name: Makita BHR261 - Cordless Combination Hammer - Power Tool Diagram
SKU: bhr261_cordless_combination_hammer_power_tool-group
Price: 0.36 GBP
Availability: InStock

Part No. bhr261_cordless_combination_hammer_power_tool-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita BHR261 - Cordless Combination Hammer - Power Tool Diagram

Description

Model No. BHR261

Cordless Combination Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£1.03 £0.86

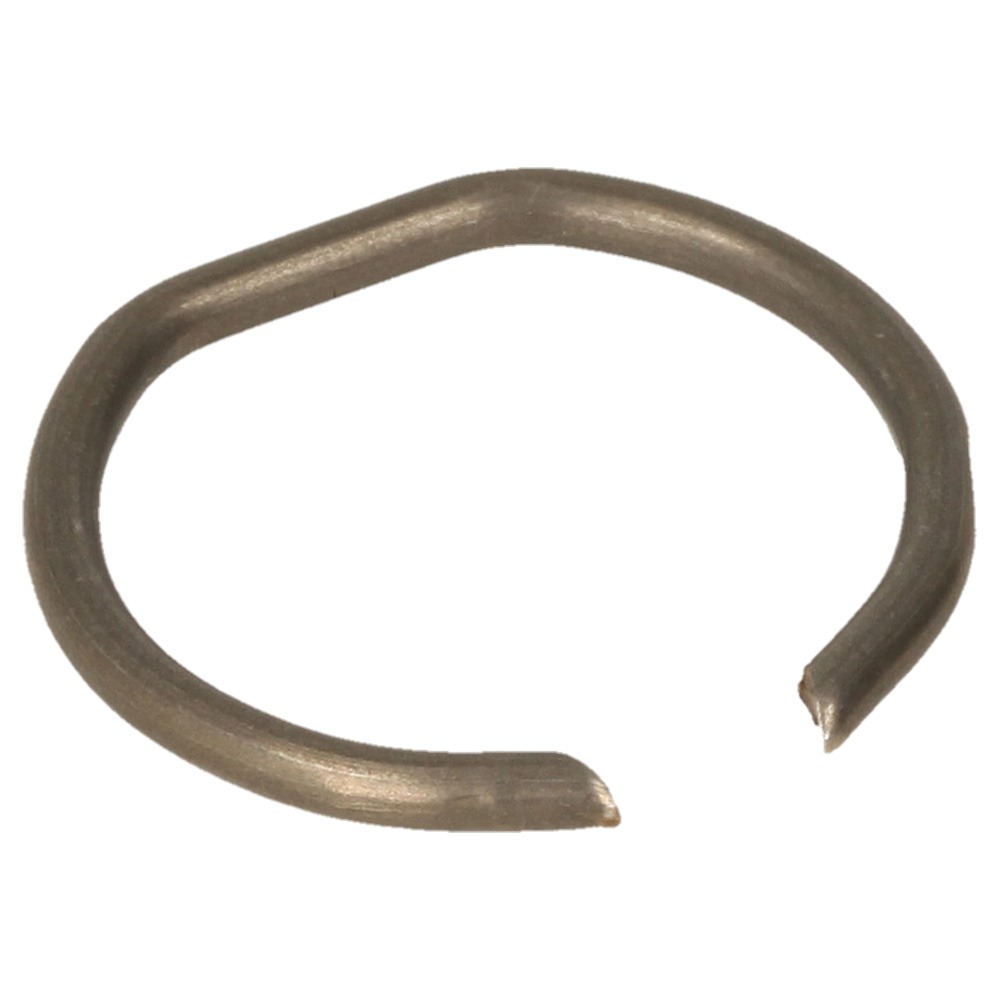

2	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
3	MK417629-9 Available to backorder	Chuck Cover	£0.89 £0.74
4	MK257241-1 Available to backorder	Ring 21	£1.58 £1.32
5	MK345187-4 Available to backorder	Guide Washer	£1.03 £0.86
6	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.32 £1.10
8	MK345280-4 Available to backorder	Hex. Washer	£0.70 £0.58
9	MK417630-4 Available to backorder	Grip Base	£1.90 £1.58
10	MK158057-6 Available to backorder	Grip 36 Complete	£6.60 £5.50
13	MK450980-4 Available to backorder	Change Lever	£4.68 £3.90
14	MK233279-0 Available to backorder	Compression Spring 4	£0.89 £0.74
15	MK450978-1 Available to backorder	Lock Button	£0.89 £0.74
16	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
17	MK213965-9 Available to backorder	Oil Seal 25 (C10)	£3.84 £3.20
17	MK213345-9 Available to backorder	Oil Seal 25 (Alt.) (C11)	£1.90 £1.58
17	MK158945-7 Available to backorder	Gear Housing Complete	£14.76 £12.30
18	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
19	MK153290-5 Available to backorder	Needle Bearing Complete	£4.80 £4.00
20	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
21	MK417796-0 Available to backorder	Guide Base	£0.89 £0.74
22	MK233344-5 Available to backorder	Compression Spring 4	£0.48 £0.40
23	MK163430-7 Available to backorder	Lock Plate Complete	£2.21 £1.84
24	MK266374-1 Available to backorder	Tapping Screw 4x25	£0.48 £0.40
25	MK233929-7 Available to backorder	Ring Spring 29	£0.48 £0.40
26	MK267460-1 Available to backorder	Washer 31 <	£1.73 £1.44
27	MK233401-9 Available to backorder	Compression Spring 32	£1.74 £1.45
28	MK227109-5 Available to backorder	Spur Gear 51	£11.76 £9.80
29	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
30	MK158574-6 Available to backorder	Tool Holder Complete	£38.88 £32.40
31	MK267229-3 Available to backorder	Flat Washer 28	£0.70 £0.58
32	MK331769-8 Available to backorder	Sleeve 9	£2.38 £1.98
33	MK324669-9 Available to backorder	Impact Bolt	£2.69 £2.24
34	MK324402-9 Available to backorder	Ring 10	£1.58 £1.32
35	MK421955-0 Available to backorder	Cushion Ring 13	£1.90 £1.58
36	MK324216-6 Available to backorder	O Ring Case (Alt.)	£6.24 £5.20
37	MK213073-6 In stock	O Ring 9 (Alt.)	£1.39 £1.16
38	MK233917-4 Available to backorder	Ring Spring 28	£0.48 £0.40
39	MK324214-0 Available to backorder	Striker	£2.69 £2.24
40	MK213227-5 Available to backorder	O Ring 16 (Alt.)	£1.58 £1.32
41	MK318132-2 Available to backorder	Piston Cylinder	£13.68 £11.40
42	MK346036-8 Available to backorder	Guide Plate	£0.89 £0.74
43	MK324215-8 Available to backorder	Piston Joint	£1.74 £1.45
44	MK234098-7 Available to backorder	Compression Spring 14	£0.70 £0.58
45	MK211012-0 Available to backorder	Ball Bearing 606Zz	£13.32 £11.10
46	MK961003-8 Available to backorder	Retaining Ring S-7	£0.48 £0.40
47	MK233343-7 Available to backorder	Compression Spring 7	£0.48 £0.40
48	MK227179-4 Available to backorder	Spur Gear 10	£21.12 £17.60
49	MK325622-8 Available to backorder	Cam Shaft	£9.72 £8.10
49	MK325976-3 Available to backorder	Cam Shaft <	£9.84 £8.20
50	MK331992-5 Available to backorder	Clutch Cam <	£8.52 £7.10
50	MK331768-0 Available to backorder	Clutch Cam	£7.32 £6.10
51	MK219014-0 Available to backorder	Swash Bearing 10	£52.44 £43.70
51	MK219021-3 Available to backorder	Swash Bearing 10 (Alt.)	£17.76 £14.80
52	MK325640-6 Available to backorder	Sleeve 9	£1.58 £1.32
53	MK227549-7 Available to backorder	Spiral Bevel Gear 26	£8.04 £6.70
54	MK266273-7 Available to backorder	Hex. Socket Head Bolt M4x12	£0.70 £0.58
55	MK346038-4 Available to backorder	Bearing Retainer B	£0.89 £0.74
56	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
57	MK324212-4 Available to backorder	Ring 8	£5.64 £4.70
58	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
59	MK941102-2 Available to backorder	Flat Washer 5	£0.48 £0.40
60	MK233342-9 Available to backorder	Compression Spring 6	£0.48 £0.40
61	MK345220-2 Available to backorder	Change Plate	£1.03 £0.86
62	MK922148-7 Available to backorder	Hex. Socket Head Bolt M4x25	£0.89 £0.74
63	MK158944-9 Available to backorder	Inner Support Complete	£8.52 £7.10
64	MK213728-3 Available to backorder	O-Ring 68	£1.58 £1.32
65	MK318392-6 Available to backorder	Inner Housing	£24.48 £20.40
66	MK443143-9 Available to backorder	Filter	£1.03 £0.86
67	MK424185-2 Available to backorder	Cap	£0.89 £0.74
68	MK234097-9 Available to backorder	Compression Spring 10	£0.70 £0.58
70	MK213231-4 Available to backorder	Oil Seal 15	£7.32 £6.10
71	MK213437-4 Available to backorder	O Ring 28 (Alt.)	£0.70 £0.58
72	MK632828-4 Available to backorder	Yoke Unit	£26.16 £21.80
73	MK961082-6 Available to backorder	Retaining Ring Wr12	£1.74 £1.45
74	MK331596-3 Available to backorder	Sleeve 12	£5.28 £4.40
75	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
76	MK961016-9 Available to backorder	Stop Ring E-10	£0.48 £0.40
77	MK346037-6 Available to backorder	Bearing Retainer A	£1.90 £1.58
78	MK519235-7 Available to backorder	Armature Ass'y 36V (INC. 73-76 79 80)	£40.68 £33.90
79	MK240037-7 Available to backorder	Fan 44	£4.44 £3.70
80	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.48 £2.90
81	MK631850-8 Available to backorder	Light Circuit	£12.84 £10.70
82	MK638945-8 Available to backorder	Brush Holder Complete S	£14.04 £11.70
82	MK638660-4 Available to backorder	Brush Holder	£6.24 £5.20
82	MK688172-7 Available to backorder	Line Filter (C20)	£1.03 £0.86
82	MK688165-4 Available to backorder	Line Filter (C10)	£1.03 £0.86
82	MK539214-9 Available to backorder	Brush Holder Ass'y <	£8.04 £6.70

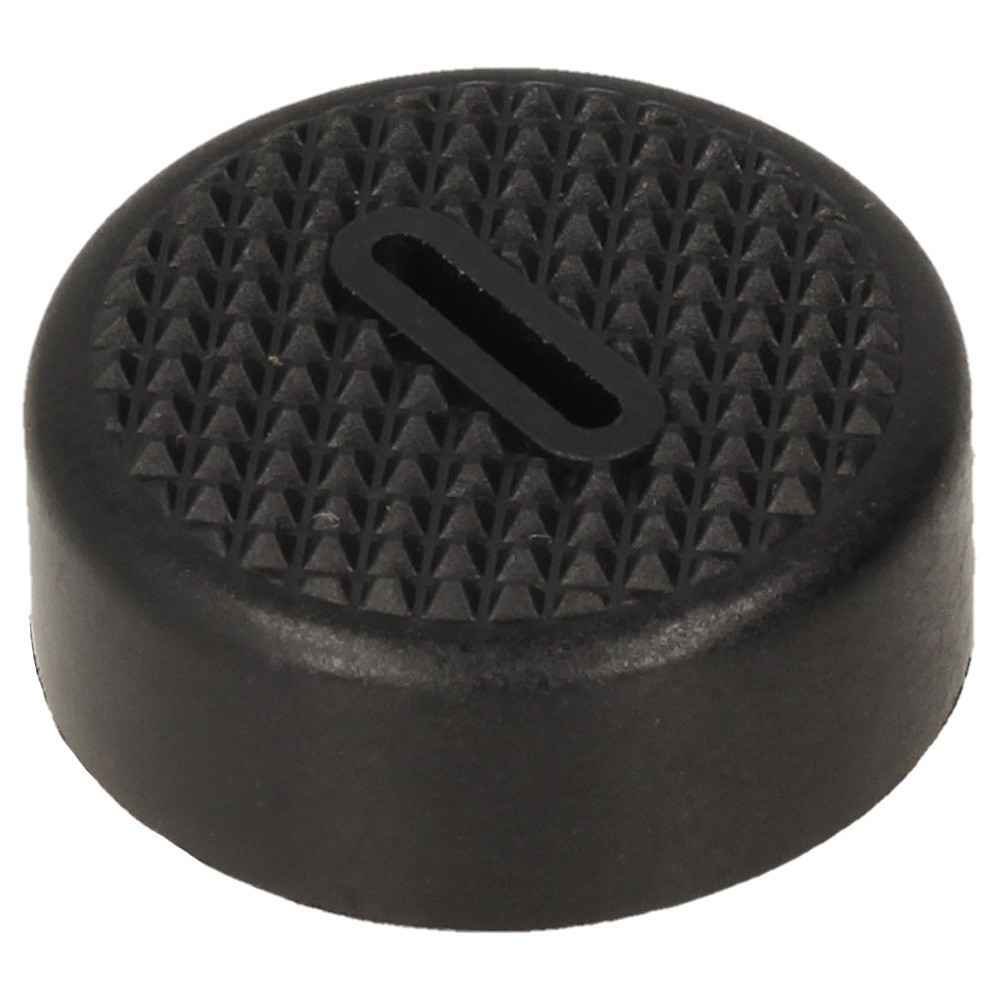

83	MK643829-7 In stock	Holder Cap	£0.70 £0.58
84	MK195023-2 Available to backorder	Carbon Brush Set Cb-442 (Alt.)	£6.12 £5.10
85	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 096 \| 101)	£0.48 £0.40
86	MK539215-7 Available to backorder	Brush Holder Ass'y <	£8.04 £6.70
86	MK638661-2 Available to backorder	Brush Holder	£6.24 £5.20
87	MK638978-3 Available to backorder	Terminal Unit	£7.32 £6.10
87	MK638657-3 Available to backorder	Terminal Unit	£14.76 £12.30
88	MK346039-2 Available to backorder	Support Plate	£1.58 £1.32
89	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
89	MK188665-9 Available to backorder	Housing Set (INC. 99 *)	£34.80 £29.00
89	MK263025-7 Available to backorder	Rubber Pin 4 (C20)	£1.74 £1.45
89	MK187231-9 Available to backorder	Housing Set (Alt.) (INC. 99)	£32.88 £27.40
90	MK188639-0 Available to backorder	Handle Set (INC. 95)	£10.92 £9.10
91	MK450981-2 Available to backorder	Switch Lever	£1.39 £1.16
92	MK650619-1 Available to backorder	Switch C3Hz-2A-Pblm	£60.12 £50.10
93	MK450979-9 Available to backorder	F/R Change Lever	£1.03 £0.86
94	MK256261-2 Available to backorder	Pin 6	£1.22 £1.02
98	MK344903-1 Available to backorder	Vibration Isolator Plate	£1.74 £1.45
100	MK866450-7 Available to backorder	Bhr261 Name Plate	£0.48 £0.40
102	MK819348-7 Available to backorder	Clear Label	£0.70 £0.58
102	MK893038-0 Available to backorder	Clear Label <	£0.48 £0.40
103	MK123100-0 Available to backorder	Tool Holder Ass'y < (INC. 25-28 30 32-38)	£54.24 £45.20
103	MK122881-3 Available to backorder	Tool Holder Ass'y (INC. 25-28 30 32-38 *)	£58.44 £48.70
901	MK893072-0 Available to backorder	Clear Label (E01)	£0.48 £0.40
901	MK194659-4 Available to backorder	Grease Vessel Set (A01)	£6.36 £5.30
902	MK324219-0 Available to backorder	Depth Gauge (A02)	£0.89 £0.74
903	MK443122-7 Available to backorder	Cloth (A03)	£3.48 £2.90
904	MK450990-1 Available to backorder	Handle (C30)	£2.53 £2.11
904	MK325636-7 Available to backorder	Shaft (C20)	£2.21 £1.84
904	MK824874-3 Available to backorder	Plastic Carrying Case (A04)	£95.52 £79.60
904	MK162271-8 In stock	Latch (C10)	£2.16 £1.80
905	MK808661-8 Available to backorder	Bhr261Rde Plastic Case Label (A05)	£0.43 £0.36
905	MK192349-3 Available to backorder	Joint 25 (F05)	£8.88 £7.40
906	MKDC36RA Available to backorder	Dc36Ra Fast Charger (A06)	£294.00 £245.00
908	MK451153-2 Available to backorder	Battery Cover (A08)	£2.21 £1.84
