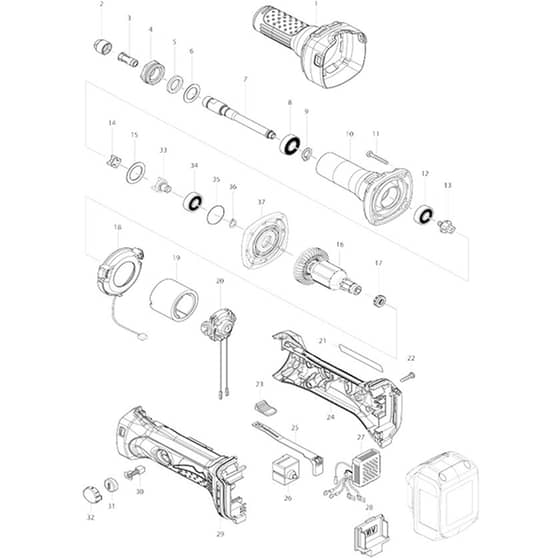

Makita BGD800 - Cordless Die Grinder - Power Tool Diagram

Name: Makita BGD800 - Cordless Die Grinder - Power Tool Diagram
SKU: bgd800_cordless_die_grinder_power_tool-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita BGD800 - Cordless Die Grinder - Power Tool Diagram

Description

Model No. BGD800

Cordless Die Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK424380-4 Available to backorder	Insulation Cover	£5.48 £4.57
2	MK763668-0 Available to backorder	Collet Nut	£1.84 £1.53
3	MK763670-3 Available to backorder	Collet Cone 6	£14.14 £11.78
4	MK317999-5 Available to backorder	Bearing Retainer	£1.74 £1.45
5	MK443124-3 Available to backorder	Felt Ring 17	£0.58 £0.48
6	MK267329-9 Available to backorder	Flat Washer 18	£0.48 £0.40
7	MK326010-2 Available to backorder	Spindle	£10.56 £8.80
8	MK210106-8 Available to backorder	Ball Bearing 6001Llb	£1.44 £1.20
9	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
10	MK318000-9 Available to backorder	Barrel	£8.38 £6.98
11	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
12	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.04 £2.53
13	MK324639-8 Available to backorder	Coupling	£3.04 £2.53
14	MK421942-9 Available to backorder	Spacer	£0.48 £0.40
15	MK267126-3 Available to backorder	Flat Washer 22	£0.86 £0.72
16	MK619284-5 Available to backorder	Armature (INC. 17)	£23.68 £19.73
17	MK421977-0 Available to backorder	Rubber Ring 13	£0.86 £0.72
18	MK631714-6 Available to backorder	Led Circuit	£9.54 £7.95
19	MK638627-2 Available to backorder	Yoke Unit	£26.16 £21.80
20	MK638921-2 In stock	Endbell Complete <	£4.34 £3.62
21	MK868960-0 Available to backorder	Bgd800 Name Plate	£0.74 £0.62
22	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
22	MK266326-2 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
23	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
24	MK187843-8 Available to backorder	Housing Set x (INC. 29)	£19.80 £16.50
24	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
24	MK188761-3 Available to backorder	Housing Set (INC. 29 *)	£23.68 £19.73
25	MK419519-2 Available to backorder	Switch Lever	£1.44 £1.20
26	MK650579-7 Available to backorder	Switch 1246.3223	£9.40 £7.83
27	MK620072-5 Available to backorder	Controller (Alt.)	£63.34 £52.78
27	MK620243-4 Available to backorder	Controller x	£49.98 £41.65
28	MK643838-6 Available to backorder	Terminal	£1.92 £1.60
28	MK644808-8 In stock	Terminal x	£3.76 £3.13
30	MK191971-3 In stock	Carbon Brush Cb-430	£5.57 £4.64
31	MK643929-3 Available to backorder	Brush Holder Cap	£0.74 £0.62
33	MK326009-7 Available to backorder	Coupling	£43.34 £36.12
35	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
35	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
36	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
37	MK317821-6 Available to backorder	Gear Housing Cover	£3.46 £2.88
901	MK781039-9 Available to backorder	Wrench 13 (A01)	£1.48 £1.23
902	MK450128-8 Available to backorder	Battery Cover (A02)	£0.64 £0.53
904	MK197600-6 Available to backorder	Battery Bl1830B Set < (A04-2)	£197.72 £164.77
905	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
905	MK821550-0 Available to backorder	Connector Plastic Case (Typ (A05)	£54.34 £45.28
905	MK824975-7 Available to backorder	Plastic Carrying Case (A05)	£26.44 £22.03
905	MK162315-4 Available to backorder	Latch (C10)	£2.34 £1.95
905	MK141482-8 Available to backorder	Plastic Case Complete < (A05-1)	£23.34 £19.45
906	MK892163-4 Available to backorder	Bgd800Rfe Plastic Case Label (A06)	£0.48 £0.40
906	MK837806-1 Available to backorder	Inner Tray (A06)	£11.16 £9.30
915	MK196235-0 Available to backorder	Battery Bl1815N Set (Alt.) (F15-2)	£187.42 £156.18
