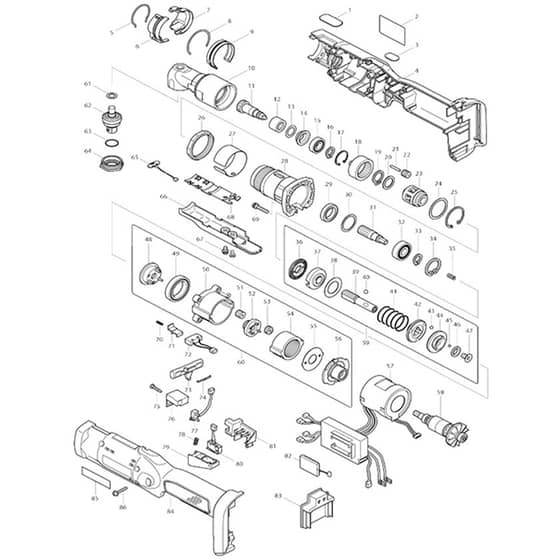

Makita BFL300F - Cordless Angle Screwdriver - Power Tool Diagram

Name: Makita BFL300F - Cordless Angle Screwdriver - Power Tool Diagram
SKU: bfl300f_cordless_angle_screwdriver_power_tool-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita BFL300F - Cordless Angle Screwdriver - Power Tool Diagram

Description

Model No. BFL300F

Cordless Angle Screwdriver

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK345445-8 Available to backorder	Plate	£3.92 £3.27
2	MK861337-8 Available to backorder	Name Plate	£0.72 £0.60
3	MK418001-8 Available to backorder	Lens	£1.16 £0.97
5	MK233932-8 Available to backorder	Ring Spring	£2.46 £2.05
7	MK183848-6 Available to backorder	Light Cover Set	£6.94 £5.78
8	MK233931-0 Available to backorder	Ring Spring	£1.60 £1.33
9	MK418687-8 Available to backorder	Lead Cover	£4.04 £3.37
11	MK227478-4 Available to backorder	Spiral Bevel Gear	£47.08 £39.23
12	MK212122-6 Available to backorder	Needle Bearing	£4.62 £3.85
13	MK253312-2 Available to backorder	Shim Washer	£0.58 £0.48
14	MK345281-2 Available to backorder	Spacer	£2.60 £2.17
15	MK210057-5 Available to backorder	Ball Bearing	£7.08 £5.90
17	MK962102-9 Available to backorder	Retaining Ring	£0.58 £0.48
18	MK227120-7 Available to backorder	Internal Gear	£8.38 £6.98
19	MK961054-1 Available to backorder	Circlip	£0.48 £0.40
20	MK253837-6 Available to backorder	Thin Narrow Blue Washer	£0.74 £0.62
21	MK256104-8 Available to backorder	Pin	£0.48 £0.40
22	MK227138-8 Available to backorder	Spur Gear	£25.00 £20.83
23	MK310148-3 Available to backorder	Carrier	£72.96 £60.80
24	MK267127-1 Available to backorder	Narrow Blue Washer	£0.86 £0.72
25	MK962161-3 Available to backorder	Retaining Ring	£1.60 £1.33
26	MK252187-6 Available to backorder	Hex Nut M36	£16.04 £13.37
27	MK345448-2 Available to backorder	Ring	£12.42 £10.35
28	MK317808-8 Available to backorder	Clutch Case	£59.66 £49.72
29	MK211283-9 Available to backorder	Ball Bearing	£12.58 £10.48
30	MK267283-7 Available to backorder	Flat Washer	£1.16 £0.97
31	MK227137-0 Available to backorder	Spur Gear	£53.02 £44.18
32	MK211088-7 Available to backorder	Ball Bearing	£5.48 £4.57
33	MK961026-6 Available to backorder	Retaining Ring	£0.58 £0.48
34	MK257988-7 Available to backorder	Internal Retaining Ring	£0.70 £0.58
35	MK233019-6 Available to backorder	Compression Spring	£0.74 £0.62
36	MK324834-0 Available to backorder	Lock Nut M12	£13.58 £11.32
37	MK158408-3 Available to backorder	Adjust Ring Comp	£9.40 £7.83
38	MK267276-4 Available to backorder	Flat Washer	£1.44 £1.20
39	MK324296-2 Available to backorder	Spindle	£32.94 £27.45
40	MK216018-3 Available to backorder	Steel Ball	£0.48 £0.40
41	MK233417-4 Available to backorder	Compression Spring	£7.96 £6.63
42	MK223146-7 Available to backorder	Cam	£25.28 £21.07
43	MK216024-8 Available to backorder	Steel Ball	£0.48 £0.40
44	MK223139-4 Available to backorder	Cam	£25.58 £21.32
45	MK216019-1 Available to backorder	Steel Ball	£0.47 £0.39
46	MK267247-1 Available to backorder	Flat Washer	£3.76 £3.13
47	MK266305-0 Available to backorder	Torx Cs Hd Screw M5x10	£1.16 £0.97
48	MK153443-6 Available to backorder	Carrier Comp	£12.28 £10.23
49	MK211375-4 Available to backorder	Ball Bearing	£19.64 £16.37
50	MK418004-2 Available to backorder	Gear Case	£5.78 £4.82
51	MK227050-2 Available to backorder	Spur Gear	£1.16 £0.97
52	MK153684-4 Available to backorder	Spur Gear	£8.54 £7.12
53	MK227104-5 Available to backorder	Spur Gear	£1.16 £0.97
54	MK227048-9 Available to backorder	Internal Gear	£5.94 £4.95
55	MK267774-8 Available to backorder	Lock Washer	£1.60 £1.33
56	MK418003-4 Available to backorder	Motor Bracket	£2.76 £2.30
57	MK631620-5 Available to backorder	Motorcontrol Unit	£373.38 £311.15
58	MK619143-3 Available to backorder	Rotor	£205.61 £171.34
59	MK125396-9 Available to backorder	Clutch Assy	£91.74 £76.45
60	MK125231-1 Available to backorder	Gear Assy	£76.14 £63.45
61	MK253777-8 Available to backorder	Hard Washer	£1.16 £0.97
62	MK154447-1 Available to backorder	Spindle	£111.80 £93.17
63	MK213222-5 Available to backorder	O Ring (Alt.)	£1.88 £1.57
64	MK285722-5 Available to backorder	Bearing Retainer	£20.96 £17.47
65	MK631622-1 Available to backorder	Led Circuit	£13.58 £11.32
66	MK418690-9 Available to backorder	Switch Cover	£6.06 £5.05
67	MK911108-4 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
67	MK265171-2 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
68	MK418686-0 Available to backorder	Lead Unit	£4.34 £3.62
69	MK265145-3 Available to backorder	P Hd Screw M4x22	£0.58 £0.48
70	MK233025-1 Available to backorder	Compression Spring	£0.58 £0.48
71	MK418002-6 Available to backorder	Switch Lever	£1.32 £1.10
72	MK638184-0 Available to backorder	Switch Unit	£8.54 £7.12
73	MK418201-0 Available to backorder	F/R Change Lever	£4.62 £3.85
74	MK232201-4 Available to backorder	Leaf Spring	£1.88 £1.57
75	MK266130-9 Available to backorder	Tapping Screw Bind 3x16	£0.48 £0.40
76	MK418204-4 Available to backorder	Cover	£4.62 £3.85
77	MK638276-5 Available to backorder	Switch Unit	£10.56 £8.80
78	MK231397-8 Available to backorder	Compression Spring	£0.48 £0.40
79	MK418203-6 Available to backorder	Switch Lever	£6.06 £5.05
80	MK638275-7 Available to backorder	Switch Unit	£15.18 £12.65
81	MK418202-8 Available to backorder	Switch Base	£6.06 £5.05
82	MK631514-4 Available to backorder	Buzzer Circuit	£11.72 £9.77
83	MK643983-7 Available to backorder	Terminal	£3.62 £3.02
84	MK183867-2 Available to backorder	Housing Set	£44.20 £36.83
85	MK819063-3 Available to backorder	Label	£1.16 £0.97
86	MK265095-2 Available to backorder	Pan Hd Screw M3x20	£0.54 £0.45
1001	MK418743-4 Available to backorder	Protector	£20.52 £17.10
1002	MK418746-8 Available to backorder	Protector	£10.68 £8.90
1023	MK197615-3 Available to backorder	Battery Set	£246.62 £205.52
