Makita BFL080F - Cordless Angle Screwdriver - Power Tool Diagram

Description

Model No. BFL080F

Cordless Angle Screwdriver

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK265145-3 Available to backorder	+ Pan Head Screw M4x22	£0.58 £0.48
3	MK227469-5 Available to backorder	Spiral Bevel Gear 9	£13.16 £10.97
4	MK212123-4 Available to backorder	Needle Bearing 1210	£3.46 £2.88
5	MK345281-2 Available to backorder	Spacer	£2.60 £2.17
6	MK210057-5 Available to backorder	Ball Bearing 6900Llb	£7.08 £5.90
7	MK961026-6 Available to backorder	Retaining Ring S-10	£0.58 £0.48
8	MK962112-6 Available to backorder	Retaining Ring R-22	£0.74 £0.62
9	MK345285-4 Available to backorder	Ring 38A	£5.20 £4.33
10	MK233019-6 Available to backorder	Compression Spring 5	£0.74 £0.62
10	MK232657-1 Available to backorder	Compression Spring 4 (Alt.)	£0.54 £0.45
11	MK324834-0 Available to backorder	Lock Nut M12 S	£13.58 £11.32
12	MK158408-3 Available to backorder	Adjust Ring Complete S	£9.40 £7.83
13	MK324296-2 Available to backorder	Spindle	£32.94 £27.45
14	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
15	MK233356-8 Available to backorder	Compression Spring 19A	£6.06 £5.05
16	MK223140-9 Available to backorder	Cam B	£11.26 £9.38
17	MK216024-8 Available to backorder	Steel Ball 4	£0.48 £0.40
18	MK223139-4 Available to backorder	Cam A	£25.58 £21.32

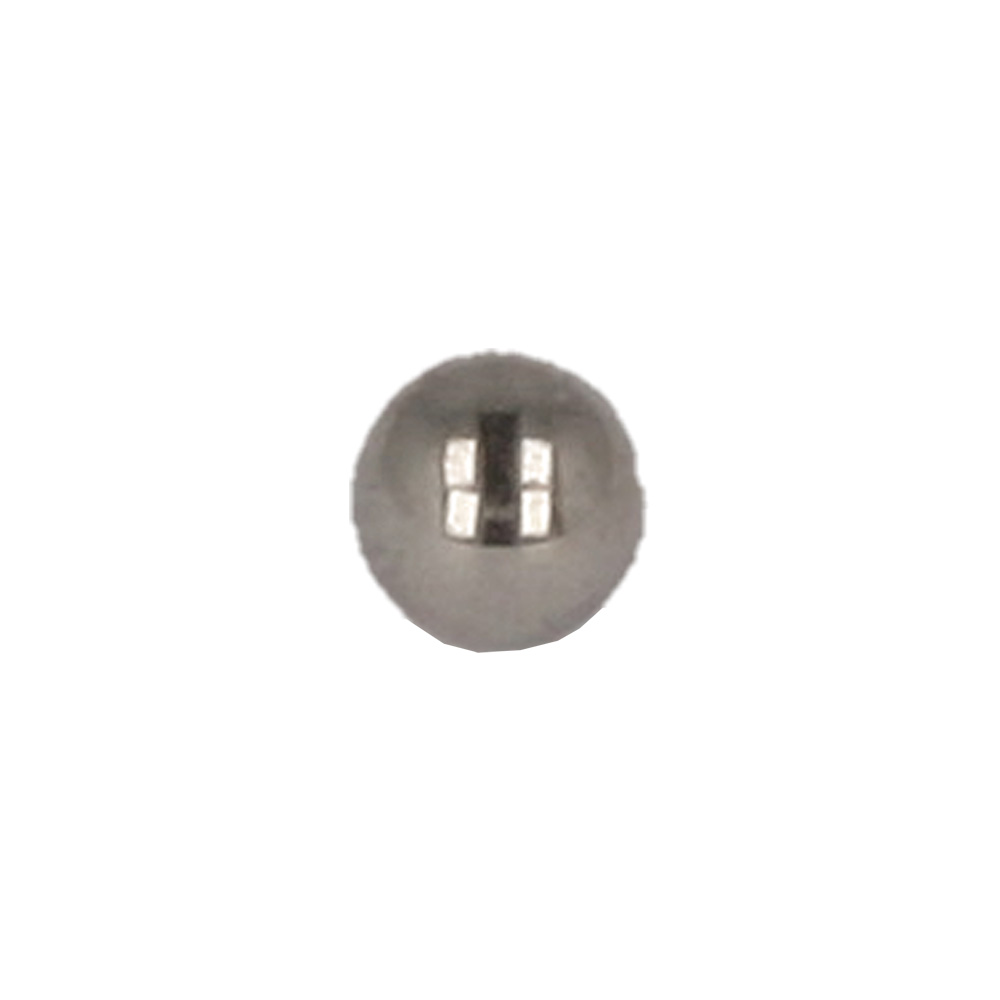

19	MK216019-1 Available to backorder	Steel Ball 3 (Refs 029 \| 070)	£0.47 £0.39
20	MK267247-1 Available to backorder	Flat Washer 7	£3.76 £3.13
21	MK266305-0 Available to backorder	Torx C.S Head Screw M5x10	£1.16 £0.97
22	MK418011-5 Available to backorder	Light Holder	£2.32 £1.93
23	MK631513-6 Available to backorder	Led Circuit	£13.16 £10.97
24	MK418005-0 Available to backorder	Light Cover	£2.32 £1.93
25	MK911108-4 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
25	MK265171-2 Available to backorder	Pan Head Screw M4x8 <	£0.48 £0.40
27	MK253726-5 Available to backorder	Flat Washer 6	£0.48 £0.40
28	MK154726-7 Available to backorder	Spindle B Complete	£34.38 £28.65
28	MK154725-9 Available to backorder	Spindle A Complete (Alt.)	£35.98 £29.98
30	MK162218-2 Available to backorder	Sleeve	£6.06 £5.05
31	MK233005-7 Available to backorder	Compression Spring 13	£0.48 £0.40
32	MK267143-3 Available to backorder	Flat Washer 11	£0.74 £0.62
33	MK231965-7 Available to backorder	Ring Spring 10	£0.58 £0.48
34	MK253842-3 Available to backorder	Flat Washer 14	£0.48 £0.40
35	MK213162-7 Available to backorder	O Ring 14 (Alt.)	£0.74 £0.62
36	MK285707-1 Available to backorder	Bearing Retainer 14-23	£7.22 £6.02
36	MK285026-5 Available to backorder	Bearing Retainer 14-23 S	£12.28 £10.23
36	MK285030-4 Available to backorder	Bearing Retainer 14-23 <	£14.02 £11.68
37	MK153443-6 Available to backorder	Carrier Complete A	£12.28 £10.23
38	MK211375-4 Available to backorder	Ball Bearing 6805Llb	£19.64 £16.37
39	MK418004-2 Available to backorder	Gear Case	£5.78 £4.82
40	MK227050-2 Available to backorder	Spur Gear 13	£1.16 £0.97
41	MK153445-2 Available to backorder	Spur Gear 20 Complete A	£6.64 £5.53
42	MK227049-7 Available to backorder	Spur Gear 18	£0.74 £0.62
43	MK227048-9 Available to backorder	Internal Gear 47	£5.94 £4.95
44	MK267774-8 Available to backorder	Lock Washer	£1.60 £1.33
45	MK418003-4 Available to backorder	Motor Bracket	£2.76 £2.30
46	MK638183-2 Available to backorder	Yoke Unit	£61.24 £51.03
47	MK619094-0 Available to backorder	Armature	£37.56 £31.30
48	MK687138-4 Available to backorder	Endbell Complete	£5.64 £4.70
48	MK638928-8 Available to backorder	Endbell Complete <	£11.72 £9.77
49	MK853877-0 Available to backorder	Bfl080F Name Plate	£0.74 £0.62
50	MK345402-6 Available to backorder	Plate A	£2.46 £2.05
51	MK418001-8 Available to backorder	Lens	£1.16 £0.97
52	MK183509-8 Available to backorder	Housing Set	£25.28 £21.07
53	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
54	MK418002-6 Available to backorder	Switch Lever	£1.32 £1.10
55	MK417511-2 Available to backorder	F/R Change Lever	£2.02 £1.68
56	MK650536-5 Available to backorder	Switch C3Z-5-01	£32.80 £27.33
57	MK638184-0 Available to backorder	Switch Unit	£8.54 £7.12
57	MK632T52-9 Available to backorder	Switch Unit (Alt.)	£9.56 £7.97
58	MK631514-4 Available to backorder	Buzzer Circuit	£11.72 £9.77
59	MK638960-2 Available to backorder	Controller Unit S	£177.54 £147.95
59	MK631511-0 Available to backorder	Controller	£104.86 £87.38
59	MK632M35-7 Available to backorder	Controller Unit <	£162.16 £135.13
60	MK643800-1 Available to backorder	Terminal	£6.06 £5.05
61	MK819003-1 Available to backorder	Makita Label	£0.58 £0.48
62	MK643933-2 Available to backorder	Brush Holder Cap	£0.86 £0.72
63	MK193466-2 Available to backorder	Carbon Brush Cb-434	£3.76 £3.13
63	MK195020-8 Available to backorder	Carbon Brush Cb-434 (Alt.)	£4.78 £3.98
64	MK265095-2 Available to backorder	Pan Head Screw M3x20	£0.54 £0.45
66	MK125189-4 Available to backorder	Gear Assembly A	£56.48 £47.07
67	MK267276-4 Available to backorder	Flat Washer 18 (C10)	£1.44 £1.20
67	MK125388-8 Available to backorder	Clutch Ass'y A (Alt.)	£83.48 £69.57
920	MK195621-2 Available to backorder	Anti Kick Back Head Set (F20)	£899.84 £749.87
