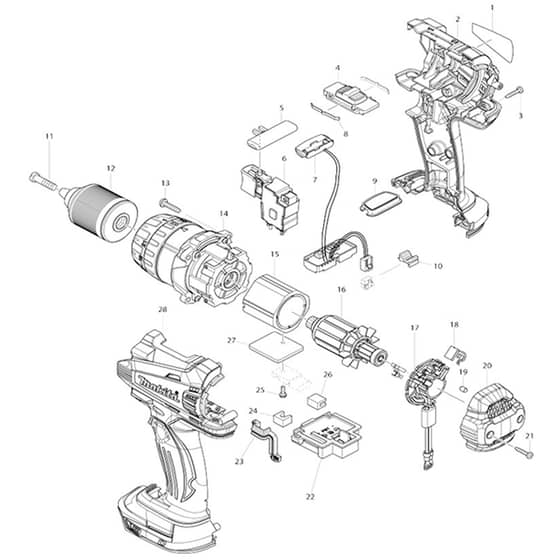

Makita BDF448 - Cordless Driver Drill - Power Tool Diagram

Description

Model No. BDF448

Cordless Driver Drill

Power Tool Parts Diagrams

	Part No.	Details
1	MK862095-9 Available to backorder	Name Plate Bdf450	£0.70 £0.58
2	MK187430-3 Available to backorder	Housing Set	£18.48 £15.40
3	MK266130-9 Available to backorder	Screw 3x16	£0.48 £0.40
4	MK125310-5 Available to backorder	Speed Change Lever Assy Ddf34	£1.39 £1.16
5	MK419041-9 Available to backorder	F/R Change Lever Btd043/063/1	£1.03 £0.86
6	MK650569-0 Available to backorder	Switch Tg553Fsb-3 Bhp440	£37.20 £31.00
7	MK631693-8 Available to backorder	Light Circuit	£18.48 £15.40
8	MK232220-0 Available to backorder	Leaf Spring	£0.48 £0.40
9	MK140963-9 Available to backorder	Switch Plate	£1.74 £1.45
11	MK251468-5 In stock	Screw M6x22	£0.70 £0.58
13	MK265995-6 Available to backorder	Screw 4x18	£0.48 £0.40
14	MK126098-0 Available to backorder	Gear Assy	£98.28 £81.90
15	MK638989-8 Available to backorder	Yoke Unit	£23.76 £19.80
16	MK619299-2 Available to backorder	Armature	£26.16 £21.80
19	MK263032-0 Available to backorder	Rubber Pin	£0.48 £0.40
20	MK453394-6 Available to backorder	Rear Cover	£2.38 £1.98
22	MK643866-1 Available to backorder	Terminal	£3.84 £3.20
23	MK424430-5 Available to backorder	Seal	£0.70 £0.58
24	MK423422-1 Available to backorder	Sponge	£0.48 £0.40
25	MK911013-5 Available to backorder	Screw M3x10	£0.48 £0.40
26	MK423423-9 Available to backorder	Sponge	£0.48 £0.40
27	MK689176-2 Available to backorder	Heat Sink	£3.84 £3.20
1001	MK263005-3 In stock	Rubber Pin	£0.52 £0.43
1002	MK252126-6 Available to backorder	Lock Nut	£1.03 £0.86
1004	MK251314-2 Available to backorder	Screw M4x12	£0.70 £0.58
1005	MK346317-0 Available to backorder	Hook	£2.00 £1.67
1006	MK452947-8 Available to backorder	Bit Holder	£0.98 £0.82
1007	MK784637-8 Available to backorder	Bit 2-45	£4.44 £3.70
1008	MK194065-3 Available to backorder	Battery Set	£177.00 £147.50
1009	MK450128-8 Available to backorder	Battery Cover	£0.77 £0.64
1010	MK821550-0 Available to backorder	Connector Plastic Case	£56.16 £46.80
1012	MK195797-5 Available to backorder	Battery Protector Set	£78.00 £65.00
