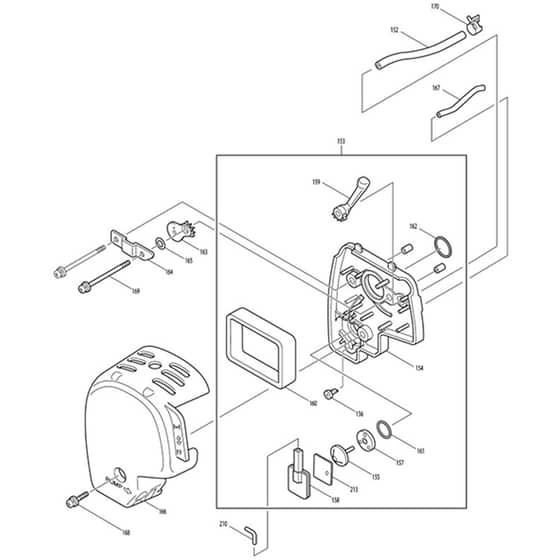

Makita BCX2500 - String Trimmer - Power Tool 06 Diagram

Description

Model No. BCX2500

String Trimmer

Power Tool 06 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
152	MK5921500900 Available to backorder	Breather Pipe	£2.76 £2.30
152	MK422041-0 Available to backorder	Breather Pipe (Alt.)	£1.44 £1.20
153	MK5933001000 Available to backorder	Cleaner Plate Ass'y S	£28.60 £23.83
153	MK125468-0 Available to backorder	Cleaner Plate Assembly (Alt.)	£16.34 £13.62
153	MK5923004003 Available to backorder	Cleaner Plate S	£30.04 £25.03
154	MK5933005000 Available to backorder	Air Cleaner Plate	£8.90 £7.42
155	MK5316500701 Available to backorder	Check Valve	£3.04 £2.53
156	MK424316-3 Available to backorder	Check Valve (Alt.)	£3.76 £3.13
157	MK451924-7 Available to backorder	Check Valve Plate (Alt.)	£1.16 £0.97
158	MK168576-4 Available to backorder	Separator Plate (Alt.)	£5.94 £4.95
158	MK5933501600 Available to backorder	Separator Plate S	£8.66 £7.22
159	MK451925-5 In stock	Choke Lever (Alt.)	£1.12 £0.93

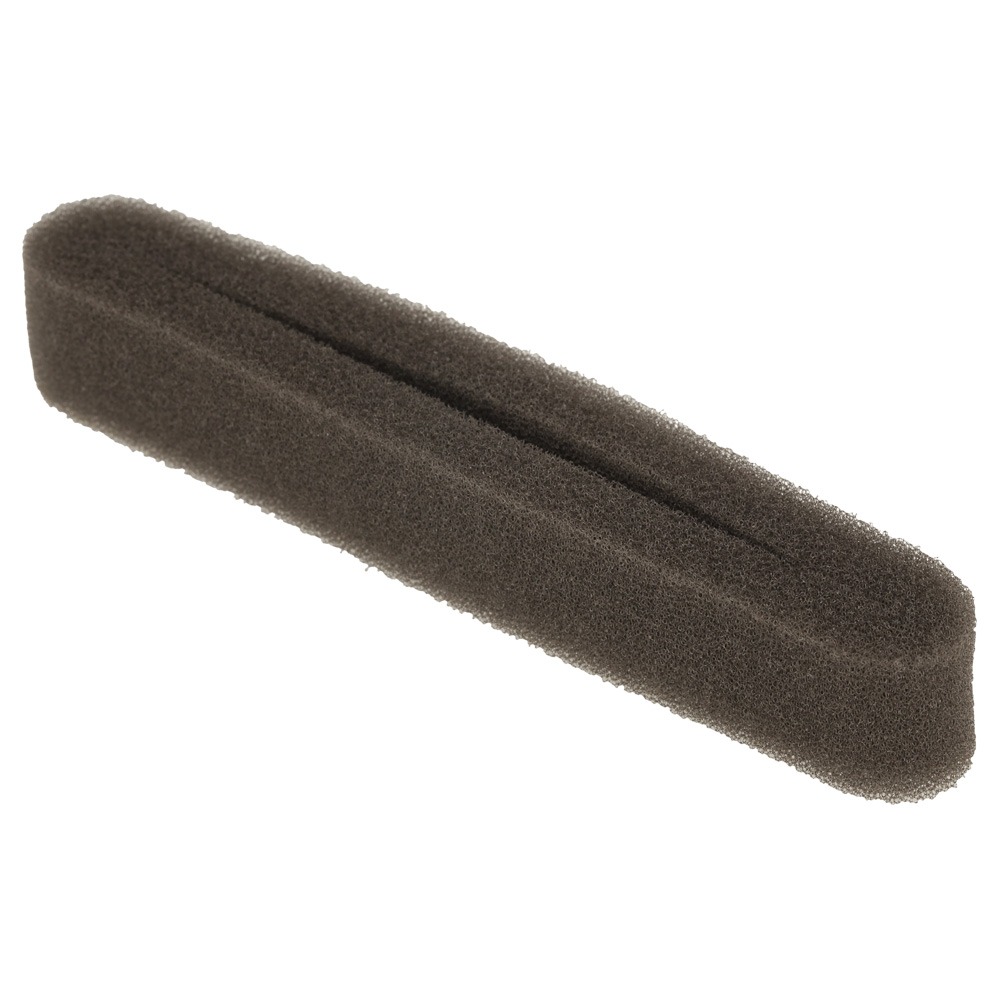

160	MK5923503200 Available to backorder	Air Cleaner Element	£1.90 £1.58
161	MK213539-6 Available to backorder	O Ring 14 (Alt.)	£0.86 £0.72
162	MK213540-1 Available to backorder	O Ring 15 (Alt.)	£0.86 £0.72
163	MK5923502301 Available to backorder	Choke Plate (Alt.)	£1.16 £0.97
163	MK450560-6 Available to backorder	Choke Plate (Alt.)	£0.74 £0.62
164	MK5923502600 Available to backorder	Plate	£2.02 £1.68
164	MK345919-9 Available to backorder	Plate (Alt.)	£0.58 £0.48
165	MK423376-2 Available to backorder	Gasket (Alt.)	£0.48 £0.40
166	MK450561-4 Available to backorder	Air Cleaner Cover (Alt.)	£1.88 £1.57
166	MK5923502700 Available to backorder	Air Cleaner Cover	£4.04 £3.37
167	MK422042-8 Available to backorder	Pipe (Alt.)	£0.86 £0.72
169	MK5923503100 Available to backorder	Screw M5x68 (W Sw Sus)	£1.74 £1.45
169	MK265188-5 Available to backorder	+Pan Head Screw M5x68 (Alt.)	£1.02 £0.85
170	MK345918-1 Available to backorder	Hose Clamp (Alt.)	£0.58 £0.48
171	MK168469-5 Available to backorder	Exhaust Muffler (Alt.)	£7.66 £6.38
171	MK5923001000 Available to backorder	Exhaust Muffler	£21.24 £17.70
172	MK345916-5 Available to backorder	Muffler Gasket (Alt.)	£1.88 £1.57
173	MK345915-7 Available to backorder	Muffler Cover (Alt.)	£2.46 £2.05
174	MK266440-4 Available to backorder	Hex Socket Head Bolt	£1.02 £0.85
176	MK450566-4 Available to backorder	Fuel Tank (Alt.)	£6.52 £5.43
176	MK5926500400 Available to backorder	Fuel Tank	£27.02 £22.52
177	MK5926003000 Available to backorder	Tube	£16.34 £13.62
177	MK168472-6 Available to backorder	Tube Complete (Alt.)	£5.06 £4.22
178	MK163447-0 In stock	Fuel Filter (Alt.)	£2.69 £2.24
179	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.58 £0.48
180	MK5926012000 Available to backorder	Fuel Tank Cap S	£8.24 £6.87
181	MK140436-2 Available to backorder	Strap Complete (Alt.)	£5.56 £4.63
181	MK5256067000 Available to backorder	Strap S	£6.64 £5.53
182	MK6249501501 Available to backorder	Strap	£7.22 £6.02
182	MK810455-9 Available to backorder	Caution Plate <	£1.16 £0.97
183	MK5036500200 Available to backorder	Plate	£0.74 £0.62
184	MK5036500300 Available to backorder	Plate	£2.02 £1.68
184	MK424103-0 Available to backorder	Plate (Alt.)	£0.74 £0.62
185	MK424104-8 Available to backorder	Damper (Alt.)	£1.88 £1.57
185	MK5196500302 Available to backorder	Damper (Alt.)	£2.18 £1.82
186	MK5927012011 Available to backorder	Ignition Coil (Alt.)	£27.02 £22.52
186	MK5927012010 Available to backorder	Ignition Coil (Alt.)	£122.78 £102.32
187	MK318343-9 Available to backorder	Flywheel (Alt.)	£13.74 £11.45
188	MK424105-6 Available to backorder	Plug Cap (Alt.)	£1.02 £0.85
188	MK5927500100 Available to backorder	Plug Cap	£1.44 £1.20
189	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.58 £0.48
190	MK638664-6 Available to backorder	Lead Unit (Alt.)	£1.16 £0.97
191	MK5257018001 Available to backorder	Wire Complete	£2.32 £1.93
191	MK638665-4 Available to backorder	Lead Unit (Alt.)	£1.16 £0.97
192	MK5257500300 Available to backorder	Grommet	£1.60 £1.33
196	MK5928500000 Available to backorder	Clutch Shoe	£20.38 £16.98
197	MK5928500100 Available to backorder	Spring	£3.76 £3.13
198	MK5928500200 Available to backorder	Clutch Bolt	£2.60 £2.17
199	MK5928500300 Available to backorder	Washer	£1.32 £1.10
199	MK267812-6 Available to backorder	Washer 6 (Alt.)	£0.58 £0.48
200	MK5925500800 Available to backorder	Cylinder Cover	£28.60 £23.83
201	MK911208-0 Available to backorder	Pan Head Screw M5x10 (Alt.)	£0.48 £0.40
203	MK5927500000 Available to backorder	Plug Cover	£4.34 £3.62
204	MK345963-6 Available to backorder	Clamp (Alt.)	£0.74 £0.62
205	MK5929501001 Available to backorder	Trade Mark Label	£4.04 £3.37
210	MK5923503900 Available to backorder	Pipe	£1.52 £1.27
