Makita BC300LD - 300mm Cordless String Trimmer - Power Tool 01 Diagram

Description

Model No. BC300LD

300mm Cordless String Trimmer

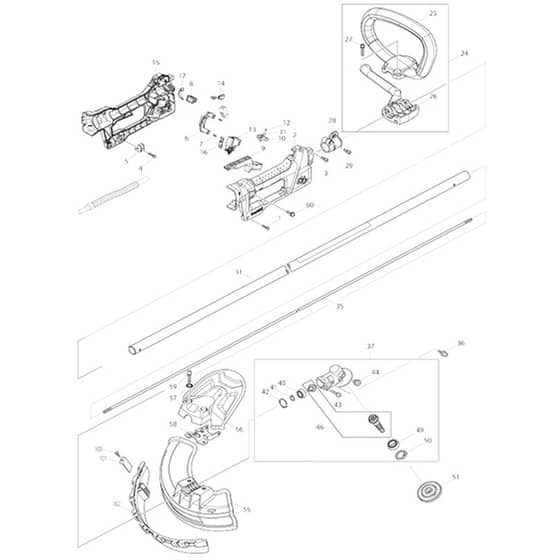

Power Tool 01 Parts Diagrams

	Part No.	Details
4	MK265995-6 Available to backorder	Screw 4x18	£0.48 £0.40
5	MK687261-5 Available to backorder	Strain Relief	£0.89 £0.74
6	MK451983-1 Available to backorder	Lock Off Button	£24.48 £20.40
8	MK651533-4 Available to backorder	Switch	£4.92 £4.10
9	MK451984-9 Available to backorder	Switch Lever	£33.96 £28.30
10	MK451986-5 Available to backorder	Indicator	£20.28 £16.90
11	MK216018-3 Available to backorder	Steel Ball	£0.48 £0.40
12	MK233211-4 Available to backorder	Compression Spring	£0.48 £0.40
13	MK650630-3 Available to backorder	Switch	£22.68 £18.90
14	MK686015-7 Available to backorder	Receptacle Sleeve	£0.48 £0.40
15	MK188841-5 Available to backorder	Grip Set	£125.76 £104.80
16	MK451982-3 Available to backorder	Link Plate	£12.36 £10.30
17	MK451985-7 Available to backorder	Lead Cover	£19.44 £16.20
24	MK195215-3 Available to backorder	Handle Assembly	£13.68 £11.40
25	MK451598-4 Available to backorder	Loop Handle	£10.20 £8.50
26	MK451599-2 Available to backorder	Handle Clamp	£3.60 £3.00
27	MK911253-5 Available to backorder	Pan Hdscrew M5x30	£0.70 £0.58
28	MK168478-4 Available to backorder	Hanger	£6.00 £5.00
29	MK922228-9 Available to backorder	Hex Bolt M5x18	£0.70 £0.58
31	MK141091-3 Available to backorder	Shaft Pipe	£71.16 £59.30
31	MK141889-8 Available to backorder	Shaft Pipe	£75.12 £62.60
35	MK325812-3 Available to backorder	Shaft	£42.24 £35.20
36	MK922218-2 Available to backorder	Hex Bolt M5x14	£0.70 £0.58
37	MK125791-3 Available to backorder	Gear Case Assembly	£114.36 £95.30
40	MK210049-4 Available to backorder	Ball Bearing	£4.08 £3.40
41	MK961005-4 Available to backorder	Circlip	£0.48 £0.40
42	MK962103-7 Available to backorder	Retaining Ring	£0.89 £0.74
43	MK922241-7 Available to backorder	Bolt M5x25	£0.89 £0.74
44	MK265590-2 Available to backorder	Hex Bolt M8x10	£0.70 £0.58
49	MK210115-7 Available to backorder	Ball Bearing	£8.88 £7.40
50	MK962106-1 Available to backorder	Internal Retaining Ring	£1.58 £1.32
51	MK331861-0 Available to backorder	Recieve Washer	£12.36 £10.30
55	MK451566-7 Available to backorder	Protector	£39.72 £33.10
56	MK451565-9 Available to backorder	Protector Cover	£25.44 £21.20
57	MK213105-9 Available to backorder	O Ring (Alt.)	£0.48 £0.40
58	MK346073-2 Available to backorder	Protector Clamp	£1.74 £1.45
59	MK922353-6 Available to backorder	Screw M6x30	£1.03 £0.86
60	MK911233-1 Available to backorder	Screw M5x20	£0.48 £0.40
101	MK346280-7 Available to backorder	Cutter	£6.72 £5.60
102	MK140583-9 Available to backorder	Protector Extension Complete	£20.16 £16.80
