Makita AS4030 - 300mm Cordless Chain Saw - Power Tool Diagram

Description

Model No. AS4030

300mm Cordless Chain Saw

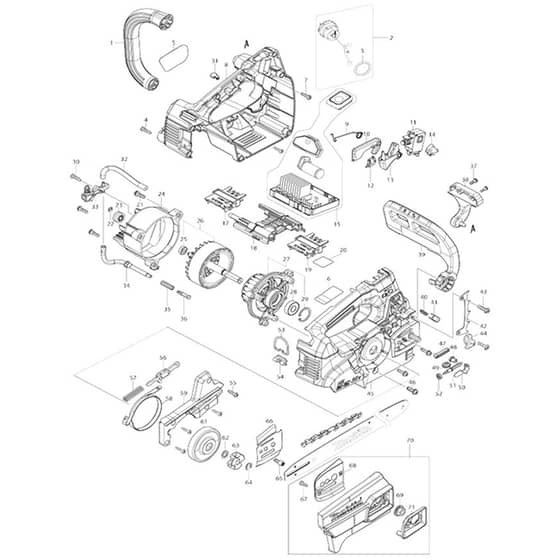

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK459275-2 Available to backorder	Front Handle	£7.24 £6.03
2	MK126832-8 Available to backorder	Tank Cap Assembly (INC. 3)	£21.84 £18.20
3	MK213894-6 Available to backorder	O-Ring 25 (Alt.)	£2.18 £1.82
3	MK213355-6 Available to backorder	O-Ring 25	£1.36 £1.13
3	MK213A11-4 Available to backorder	O-Ring 25 (Alt.)	£0.48 £0.40
4	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 007 \| 030 \| 055)	£0.48 £0.40
5	MK819S66-1 Available to backorder	Model No. Label As4030	£0.48 £0.40
6	MK856A59-9 Available to backorder	Name Plate As4030	£0.48 £0.40
8	MK424170-5 Available to backorder	Valve (C20)	£1.92 £1.60
8	MK454724-4 Available to backorder	Sinter Insert (C30)	£0.48 £0.40
8	MK183N17-3 Available to backorder	Housing Set (INC. 45)	£56.66 £47.22
8	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
9	MK232509-6 Available to backorder	Torsion Spring 10	£0.48 £0.40
10	MK459283-3 Available to backorder	Catch Lever	£1.10 £0.92
11	MK651365-9 Available to backorder	Switch C3Jw-6Bm-P	£20.90 £17.42
12	MK632L49-0 Available to backorder	Switch Unit	£13.66 £11.38
13	MK459282-5 Available to backorder	Switch Lever	£1.10 £0.92
14	MK632L48-2 Available to backorder	Switch Unit	£19.80 £16.50
15	MK819R38-0 Available to backorder	Indication Label (C10)	£1.36 £1.13
15	MK819S81-5 Available to backorder	Switch Label (C20)	£3.16 £2.63
15	MK141J62-0 Available to backorder	Controller Complete <	£194.52 £162.10
15	MK140K82-7 Available to backorder	Controller Complete	£238.39 £198.66
17	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
18	MK140K81-9 Available to backorder	Center Case Complete	£3.42 £2.85
18	MK140V36-0 Available to backorder	Center Case Complete <	£2.46 £2.05
20	MK856A60-4 Available to backorder	Serial No. Label As4030	£0.48 £0.40
21	MK911228-4 Available to backorder	Pan Head Screw M5x18 Wr	£1.64 £1.37
22	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
23	MK226884-0 Available to backorder	Worm Gear	£1.24 £1.03
24	MK459276-0 Available to backorder	Motor Housing	£6.98 £5.82
25	MK210026-6 Available to backorder	Ball Bearing 696Zz	£3.46 £2.88
26	MK519576-1 Available to backorder	Rotor Assembly (INC. 25)	£175.42 £146.18
27	MK520146-1 Available to backorder	Stator Assembly (Alt.) (INC. 28 29)	£77.68 £64.73
27	MK529420-4 Available to backorder	Stator Assembly (INC. 28 29 *)	£73.04 £60.87
28	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
28	MK210274-7 Available to backorder	Ball Bearing 6000Ddw (Alt.)	£1.92 £1.60
31	MK422467-6 Available to backorder	Cap	£0.82 £0.68
32	MK422451-1 Available to backorder	Oil Tube 3-100	£1.78 £1.48
33	MK142156-4 Available to backorder	Oil Pump Complete	£27.88 £23.23
34	MK422452-9 Available to backorder	Oil Tube 3-130	£2.18 £1.82
35	MK231975-4 Available to backorder	Spring	£0.48 £0.40
36	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
37	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
38	MK459270-2 Available to backorder	Front Hand Guard Retainer	£2.60 £2.17
39	MK140K79-6 Available to backorder	Front Hand Guard Complete	£8.62 £7.18
39	MK819S75-0 Available to backorder	Caution Label (C10)	£0.48 £0.40
40	MK234210-9 Available to backorder	Compression Spring 3	£0.48 £0.40
41	MK313212-9 Available to backorder	Hand Guard Guide	£0.58 £0.48
42	MK346809-9 Available to backorder	Spike Bumper	£1.10 £0.92
43	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x2	£0.48 £0.40
44	MK347516-7 Available to backorder	Chain Catcher	£1.10 £0.92
47	MK422466-8 Available to backorder	Grommet	£0.82 £0.68
48	MK227620-7 Available to backorder	Drive Gear	£1.44 £1.20
49	MK227634-6 Available to backorder	Straight Bevel Gear 14	£3.76 £3.13
50	MK347517-5 Available to backorder	Tension Slide	£2.08 £1.73
51	MK327317-9 Available to backorder	Adjust Screw	£2.90 £2.42
52	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.46 £2.88
53	MK281222-3 Available to backorder	Hook	£0.54 £0.45
54	MK347514-1 Available to backorder	Hook Support	£0.70 £0.58
56	MK140A74-6 Available to backorder	Link Plate Complete	£3.42 £2.85
57	MK232452-9 Available to backorder	Compression Spring 7	£0.74 £0.62
58	MK347515-9 Available to backorder	Brake Band Complete	£5.60 £4.67
59	MK459286-7 Available to backorder	Housing R Cover	£4.24 £3.53
61	MK162638-0 Available to backorder	Brake Drum Complete	£14.46 £12.05
62	MK213060-5 Available to backorder	O-Ring 10	£0.48 £0.40
63	MK221464-7 Available to backorder	Sprocket 6	£3.97 £3.31
64	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
65	MK266905-6 Available to backorder	Hexalobular Socket Head Bolt M5x12	£0.70 £0.58
66	MK347533-7 Available to backorder	Guide Plate L	£1.24 £1.03
67	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
68	MK347534-5 Available to backorder	Guide Plate R	£1.57 £1.31
69	MK162494-8 Available to backorder	Flange Nut Complete	£5.06 £4.22
70	MK136150-6 Available to backorder	Sprocket Cover Assembly (INC. 67-69 71)	£17.20 £14.33
71	MK459278-6 Available to backorder	Nut Cover	£1.36 £1.13
901	MK165426-4 Available to backorder	Guide Bar (A01)	£15.76 £13.13
901	MK817D83-5 Available to backorder	Caution Tag (E01)	£3.16 £2.63
902	MK419289-3 Available to backorder	Chain Cover (A02)	£3.82 £3.18
902	MK805011-8 Available to backorder	Sound 103Db Label (E02)	£0.48 £0.40
903	MK191H01-8 Available to backorder	Saw Chain 12 Set (Alt.) (A03-1)	£24.10 £20.08
903	MK196740-7 Available to backorder	Saw Chain Set (A03)	£20.42 £17.02
905	MK782023-7 Available to backorder	Wrench 13-16 (A05)	£4.54 £3.78
908	MK195092-3 Available to backorder	Chain Oil Set (F08)	£8.28 £6.90
909	MKD-70954 Available to backorder	File Holder Set 4.5mm(11/64") (Alt.) (F09-1)	£10.84 £9.03
910	MK196205-9 Available to backorder	Saw Chain Set (F10)	£29.46 £24.55
911	MK196206-7 Available to backorder	Saw Chain Set (F11)	£15.76 £13.13
923	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F23-1)	£10.84 £9.03
923	MK198457-8 Available to backorder	File Set (F23)	£19.38 £16.15
