Makita AR410HR - Air Screw Driver - Power Tool 02 Diagram

Name: Makita AR410HR - Air Screw Driver - Power Tool 02 Diagram
SKU: ar410hr_air_screw_driver_power_tool_02-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

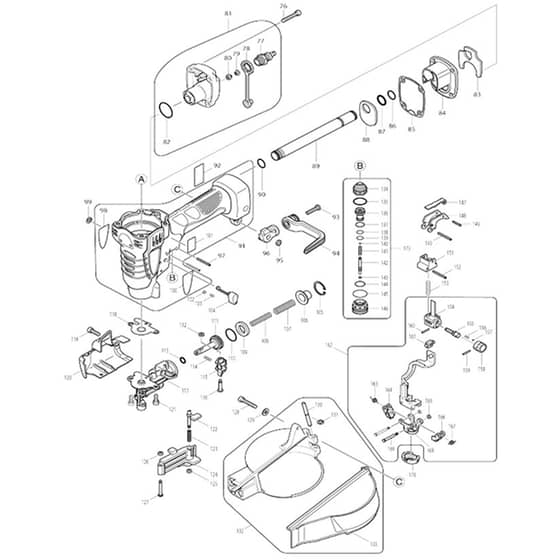

Makita AR410HR - Air Screw Driver - Power Tool 02 Diagram

Description

Model No. AR410HR

Air Screw Driver

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
76	MK922252-2 Available to backorder	Hex. Socket Head Bolt M5x30	£0.48 £0.40
78	MK286281-2 Available to backorder	Cap 9	£1.36 £1.13
82	MK213987-9 Available to backorder	O-Ring 25	£0.58 £0.48
86	MK213162-7 Available to backorder	O Ring 14 (Alt.)	£0.74 £0.62
87	MK213154-6 Available to backorder	O Ring 14 (Alt.)	£0.58 £0.48
93	MK265176-2 Available to backorder	Pan.Hd.Screw M5x22	£1.44 £1.20
94	MK419843-3 Available to backorder	Hook	£5.64 £4.70
95	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
96	MK162255-6 Available to backorder	Hook Base	£4.20 £3.50
97	MK951075-1 Available to backorder	Spring Pin 3-28 (Refs 150 \| 152)	£0.48 £0.40
99	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
102	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
103	MK231236-2 Available to backorder	Compression Spring 3	£0.48 £0.40
104	MK162189-3 Available to backorder	Lock Pin 6	£9.12 £7.60
105	MK962103-7 Available to backorder	Retaining Ring R-24	£0.74 £0.62
106	MK345781-2 Available to backorder	Cup Washer	£2.06 £1.72
107	MK234046-6 Available to backorder	Compression Spring 10	£1.24 £1.03
109	MK262123-4 Available to backorder	Rubber Ring 14	£2.06 £1.72
110	MK213971-4 Available to backorder	O-Ring 19	£1.52 £1.27
111	MK326115-8 Available to backorder	Feed Piston <	£11.20 £9.33
112	MK262130-7 Available to backorder	Urethane Ring 4	£1.16 £0.97
113	MK213007-9 Available to backorder	O Ring 8 (Alt.)	£0.48 £0.40
114	MK234042-4 Available to backorder	Compression Spring 3	£1.36 £1.13
115	MK310246-3 Available to backorder	Feeding Claw	£15.56 £12.97
116	MK268193-1 Available to backorder	Pin 4.5	£2.88 £2.40
119	MK266086-6 Available to backorder	Hex. Socket Head Bolt M5x16	£0.86 £0.72
121	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
122	MK310217-0 Available to backorder	Lock Pin	£9.98 £8.32
123	MK234003-4 Available to backorder	Compression Spring 5	£1.60 £1.33
125	MK262120-0 Available to backorder	Urethane Ring 3	£0.74 £0.62
129	MK267343-5 Available to backorder	Flat Washer 5	£0.58 £0.48
135	MK213275-4 Available to backorder	O Ring 18 (Alt.)	£0.58 £0.48
137	MK213134-2 Available to backorder	O-Ring 11	£0.48 £0.40
138	MK213984-5 Available to backorder	O-Ring 8	£0.48 £0.40
139	MK213985-3 Available to backorder	O-Ring 8	£2.06 £1.72
140	MK213986-1 Available to backorder	O-Ring 2	£0.48 £0.40
143	MK213034-6 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
145	MK213310-8 Available to backorder	O Ring 20 (Alt.)	£0.58 £0.48
147	MK344265-7 Available to backorder	Idler	£1.16 £0.97
149	MK258004-8 Available to backorder	Spring Pin 2.5-16	£0.48 £0.40
155	MK324745-9 Available to backorder	Adjuster Shaft	£2.46 £2.05
156	MK233491-2 Available to backorder	Compression Spring 2	£0.86 £0.72
157	MK216031-1 Available to backorder	Steel Ball 2.3	£0.48 £0.40
158	MK158747-1 Available to backorder	Adjuster Complete	£1.60 £1.33
159	MK951010-9 Available to backorder	Spring Pin 2-14	£0.48 £0.40
161	MK310201-5 Available to backorder	Adjuster Piece	£6.94 £5.78
165	MK261118-4 Available to backorder	Urethane Washer	£0.74 £0.62
901	MK195246-2 Available to backorder	Safety Goggle < (A01-1)	£4.18 £3.48
902	MK194381-3 Available to backorder	Oil Supply Set (A02)	£3.52 £2.93
904	MK783202-0 Available to backorder	Hex. Wrench 4 (A04)	£1.88 £1.57
905	MK163455-1 Available to backorder	Latch (C10)	£1.60 £1.33
