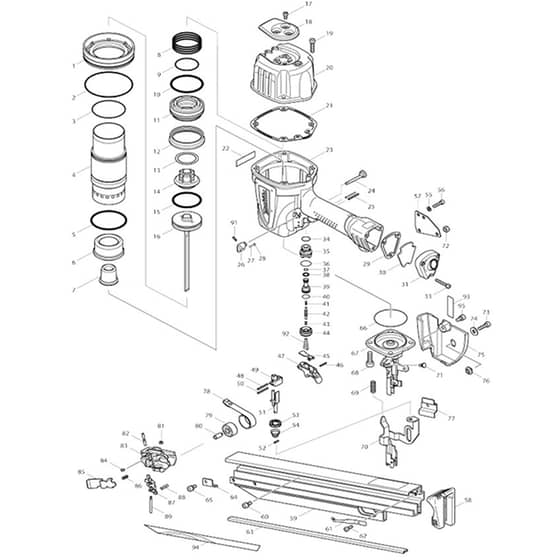

Makita AN923 - Framing Nailer (Round Head) - Power Tool Diagram

Description

Model No. AN923

Framing Nailer (Round Head)

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK419115-6 Available to backorder	Cylinder Separator	£6.64 £5.53
2	MK213809-3 Available to backorder	O Ring 87 (Alt.)	£2.46 £2.05
3	MK213668-5 Available to backorder	O Ring 60 (Alt.)	£1.16 £0.97
4	MK331700-4 Available to backorder	Cylinder	£47.38 £39.48
5	MK213667-7 Available to backorder	O Ring 60 (Alt.)	£13.74 £11.45
6	MK421680-3 Available to backorder	Cushion F	£20.38 £16.98
7	MK421687-9 Available to backorder	Cushion Guide	£6.64 £5.53
8	MK233243-1 Available to backorder	Compression Spring 50	£2.18 £1.82
9	MK213504-5 Available to backorder	O Ring 40 (Alt.)	£1.16 £0.97
10	MK213669-3 Available to backorder	O Ring 56 (Alt.)	£0.86 £0.72
11	MK419114-8 Available to backorder	Head Valve	£9.12 £7.60
12	MK421925-9 Available to backorder	Valve Seat	£3.46 £2.88
13	MK267742-1 Available to backorder	Washer 34	£0.86 £0.72
14	MK421924-1 Available to backorder	Cushion Rear	£7.66 £6.38
15	MK213619-8 Available to backorder	O Ring 49 (Alt.)	£0.86 £0.72
17	MK265499-8 Available to backorder	Hex.Socket Head Bolt M5x10	£0.86 £0.72
18	MK345618-3 Available to backorder	Exhaust Cover	£4.20 £3.50
19	MK922342-1 Available to backorder	Hex. Socket Head Bolt M6x25	£0.48 £0.40
21	MK162238-6 Available to backorder	Topcap Gasket	£12.42 £10.35
23	MK421921-7 Available to backorder	Grip (C10)	£5.94 £4.95
23	MK817592-0 Available to backorder	Caution Label (C40)	£3.76 £3.13
23	MK421922-5 Available to backorder	Housing Bumper R (C20)	£8.24 £6.87
23	MK154820-5 Available to backorder	Housing Complete	£134.34 £111.95
23	MK421923-3 Available to backorder	Housing Bumper L (C30)	£8.24 £6.87
24	MK324117-8 Available to backorder	Lock Pin 8	£11.72 £9.77
25	MK951075-1 Available to backorder	Spring Pin 3-28 (Refs 048 \| 050)	£0.48 £0.40
26	MK417824-1 Available to backorder	Lever 8	£6.22 £5.18
27	MK233368-1 Available to backorder	Compression Spring 3	£1.16 £0.97
28	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
29	MK162239-4 Available to backorder	Inletcap Gasket	£5.20 £4.33
30	MK419356-4 Available to backorder	Inlet Filter	£5.94 £4.95
31	MK318005-9 Available to backorder	Inlet Cap	£18.78 £15.65
33	MK922252-2 Available to backorder	Hex. Socket Head Bolt M5x30	£0.48 £0.40
34	MK213176-6 Available to backorder	O Ring 14 (Alt.)	£0.48 £0.40
35	MK417695-6 Available to backorder	Trigger Valve Guide	£2.32 £1.93
36	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.58 £0.48
37	MK213039-6 Available to backorder	O Ring 6 (Alt.)	£0.48 £0.40
38	MK213040-1 Available to backorder	O Ring 8 (Alt.)	£0.48 £0.40
39	MK317959-7 Available to backorder	Pilot Valve	£10.98 £9.15
40	MK213122-9 Available to backorder	O Ring 12 (Alt.)	£0.48 £0.40
41	MK233239-2 Available to backorder	Compression Spring 3	£1.32 £1.10
42	MK324591-0 Available to backorder	Trigger Valve Stem	£1.74 £1.45
43	MK213044-3 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
44	MK318010-6 Available to backorder	Trigger Valve Case	£9.98 £8.32
45	MK345687-4 Available to backorder	Idler	£1.74 £1.45
46	MK258004-8 Available to backorder	Spring Pin 2.5-16	£0.48 £0.40
47	MK419418-8 Available to backorder	Trigger	£1.74 £1.45
49	MK310165-3 Available to backorder	Holder	£14.32 £11.93
51	MK310166-1 Available to backorder	Stopper	£15.46 £12.88
52	MK951054-9 Available to backorder	Spring Pin 3-10	£0.48 £0.40
53	MK310163-7 Available to backorder	Adjuster	£6.22 £5.18
54	MK231978-8 Available to backorder	Conical Comp. Spring 9-16	£1.44 £1.20
55	MK267300-3 Available to backorder	Flat Washer 5	£0.74 £0.62
56	MK266369-4 Available to backorder	Hex Socket Head Bolt M5x20	£1.32 £1.10
59	MK810022-0 Available to backorder	Caution Label (C10)	£0.58 £0.48
60	MK266370-9 Available to backorder	Hex Socket Head Bolt M6x12 (Refs 065 \| 095)	£0.86 £0.72
61	MK345619-1 Available to backorder	Nail Stopper	£2.46 £2.05
62	MK922217-4 Available to backorder	Hex. Socket Head Bolt M5x14	£0.58 £0.48
64	MK344765-7 Available to backorder	Holder	£1.44 £1.20
66	MK213654-6 Available to backorder	O Ring 60 (Alt.)	£2.02 £1.68
68	MK266368-6 Available to backorder	Hex Socket Head Bolt M8x25	£2.32 £1.93
69	MK233463-7 Available to backorder	Compression Spring 10	£0.86 £0.72
71	MK421418-6 Available to backorder	Rubber Pin 9.5	£0.58 £0.48
72	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
73	MK265498-0 Available to backorder	Hex.Socket Head Bolt M6x20	£1.60 £1.33
74	MK267314-2 Available to backorder	Flat Washer 7	£1.32 £1.10
75	MK419118-0 Available to backorder	Cover	£4.34 £3.62
76	MK267743-9 Available to backorder	Sholder Washer 6	£2.02 £1.68
77	MK344766-5 Available to backorder	Holder	£2.60 £2.17
78	MK163456-9 Available to backorder	Spiral Spring Complete	£14.16 £11.80
79	MK419112-2 Available to backorder	Spring Guide	£1.16 £0.97
80	MK256428-2 Available to backorder	Pin 5-8	£1.74 £1.45
81	MK262054-7 Available to backorder	Urethane Ring 3	£1.32 £1.10
82	MK256770-1 Available to backorder	Pin 4	£2.32 £1.93
85	MK345673-5 Available to backorder	Lock Plate	£3.34 £2.78
86	MK231309-1 Available to backorder	Compression Spring 5	£0.48 £0.40
88	MK233038-2 Available to backorder	Compression Spring 5	£1.16 £0.97
92	MK233908-5 Available to backorder	Conical Compression Spring	£1.32 £1.10
93	MK810097-9 Available to backorder	Indication Label	£0.86 £0.72
901	MK122742-7 Available to backorder	Hook Assembly (A01)	£14.66 £12.22
901	MK313125-4 Available to backorder	Joint (C30)	£5.20 £4.33
901	MK233442-5 Available to backorder	Compression Spring 10 (C10)	£1.16 £0.97
901	MK243104-7 Available to backorder	Adapter R3/8 (E01)	£1.36 £1.13
901	MK257757-6 Available to backorder	Sleeve 10 (C20)	£1.74 £1.45
901	MK951063-8 Available to backorder	Spring Pin 3-16 (C40)	£0.48 £0.40
902	MK195246-2 Available to backorder	Safety Goggle < (A02-1)	£4.18 £3.48
903	MK181434-7 Available to backorder	Oil Supply 30Cc (A03)	£1.66 £1.38
904	MK421677-2 Available to backorder	Nose Adapter (A04)	£2.12 £1.77
905	MK824841-8 Available to backorder	Plastic Carrying Case (A05)	£56.80 £47.33
