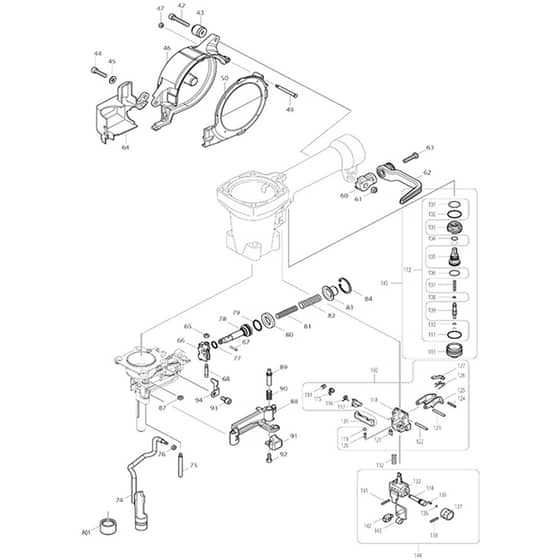

Makita AN250HC - Pneumatic Concrete Nailer - Power Tool 02 Diagram

Description

Model No. AN250HC

Pneumatic Concrete Nailer

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
42	MK265919-2 Available to backorder	Hex. Socket Head Bolt M5x30	£1.16 £0.97
44	MK266369-4 Available to backorder	Hex Socket Head Bolt M5x20	£1.32 £1.10
45	MK267343-5 Available to backorder	Flat Washer 5	£0.58 £0.48
47	MK262120-0 Available to backorder	Urethane Ring 3 (Refs 065 \| 076 \| 087)	£0.74 £0.62
49	MK256678-9 Available to backorder	Pin 4	£1.60 £1.33
60	MK162255-6 Available to backorder	Hook Base	£4.20 £3.50
61	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
62	MK168499-6 Available to backorder	Hook	£11.56 £9.63
63	MK265176-2 Available to backorder	Pan.Hd.Screw M5x22	£1.44 £1.20
68	MK256432-1 Available to backorder	Pin 4-4.5	£2.32 £1.93
77	MK213054-0 Available to backorder	O Ring 9 (Alt.)	£0.48 £0.40
79	MK213154-6 Available to backorder	O Ring 14 (Alt.)	£0.58 £0.48
80	MK262123-4 Available to backorder	Rubber Ring 14	£2.06 £1.72
82	MK234046-6 Available to backorder	Compression Spring 10	£1.24 £1.03
83	MK345781-2 Available to backorder	Cup Washer	£2.06 £1.72
84	MK962103-7 Available to backorder	Retaining Ring R-24	£0.74 £0.62
90	MK233201-7 Available to backorder	Compression Spring 6	£0.58 £0.48
91	MK310050-0 Available to backorder	Lock Lever	£13.58 £11.32
92	MK266167-6 Available to backorder	Hex. Socket Head Bolt M4x10	£0.58 £0.48
93	MK922211-6 Available to backorder	H.S.H.Bolt M5x12 With W	£0.58 £0.48
101	MK213233-0 Available to backorder	O-Ring 15	£0.74 £0.62
102	MK213275-4 Available to backorder	O Ring 18 (Alt.)	£0.58 £0.48
103	MK419841-7 Available to backorder	Trigger Valve Guide	£53.16 £44.30
104	MK213968-3 Available to backorder	O-Ring 7	£2.46 £2.05
105	MK456261-4 Available to backorder	Pilot Valve <	£32.76 £27.30
106	MK213185-5 Available to backorder	O-Ring 12.5	£0.86 £0.72
107	MK234187-8 Available to backorder	Compression Spring 3 <	£1.24 £1.03
108	MK213034-6 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
108	MK213A17-2 Available to backorder	O-Ring 3 (Alt.)	£1.36 £1.13
108	MK213044-3 Available to backorder	O Ring 3 S (Alt.)	£0.48 £0.40
109	MK326189-9 Available to backorder	Trigger Valve Stem S	£7.52 £6.27
110	MK213979-8 Available to backorder	O-Ring 3	£2.18 £1.82
110	MK213640-7 Available to backorder	O-Ring 3 S	£4.04 £3.37
111	MK213310-8 Available to backorder	O Ring 20 < (Alt.)	£0.58 £0.48
112	MK194737-0 Available to backorder	Air Leak Repair Set	£15.40 £12.83
113	MK331741-0 Available to backorder	Trigger Valve Case	£17.92 £14.93
114	MK233501-5 Available to backorder	Torsion Spring 5	£1.32 £1.10
115	MK310199-6 Available to backorder	Stopper Plate	£6.94 £5.78
116	MK233502-3 Available to backorder	Torsion Spring 6	£1.74 £1.45
117	MK310310-0 Available to backorder	Lever	£7.08 £5.90
118	MK419844-1 Available to backorder	Trigger Base	£6.06 £5.05
119	MK216024-8 Available to backorder	Steel Ball 4	£0.48 £0.40
119	MK326144-1 Available to backorder	Lock Pin <	£2.14 £1.78
120	MK233490-4 Available to backorder	Compression Spring 2	£0.86 £0.72
121	MK419743-7 Available to backorder	Spring Cover	£1.16 £0.97
122	MK268168-0 Available to backorder	Pin 3	£1.32 £1.10
124	MK951007-8 Available to backorder	Spring Pin 2-12	£0.48 £0.40
126	MK231699-2 Available to backorder	Torsion Spring 4	£1.16 £0.97
127	MK310196-2 Available to backorder	Trip Lever	£7.66 £6.38
132	MK233489-9 Available to backorder	Compression Spring 6	£1.16 £0.97
133	MK310227-7 Available to backorder	Upper Yoke	£27.74 £23.12
134	MK324767-9 Available to backorder	Adjuster Shaft	£2.60 £2.17
135	MK233491-2 Available to backorder	Compression Spring 2	£0.86 £0.72
136	MK216031-1 Available to backorder	Steel Ball 2.3	£0.48 £0.40
137	MK158747-1 Available to backorder	Adjuster Complete	£1.60 £1.33
139	MK951010-9 Available to backorder	Spring Pin 2-14	£0.48 £0.40
142	MK310201-5 Available to backorder	Adjuster Piece	£6.94 £5.78
143	MK345801-2 Available to backorder	Slide Plate	£3.62 £3.02
144	MK135228-2 Available to backorder	Adjuster Assy	£44.20 £36.83
145	MK135597-1 Available to backorder	Trigger Valve Ass'y	£159.62 £133.02
145	MK135682-0 Available to backorder	Trigger Valve Ass'y <	£103.46 £86.22
903	MK188610-4 Available to backorder	Slide Latch Rl Set (C10)	£3.46 £2.88
903	MK824792-5 Available to backorder	Plastic Carrying Case (A03)	£67.66 £56.38
904	MK195246-2 Available to backorder	Safety Goggle < (A04-1)	£4.18 £3.48
905	MK194381-3 Available to backorder	Oil Supply Set (A05)	£3.52 £2.93
