Makita AM3653 - 530mm Cordless Lawn Mower - Power Tool 02 Diagram

Name: Makita AM3653 - 530mm Cordless Lawn Mower - Power Tool 02 Diagram
SKU: am3653_530mm_cordless_lawn_mower_power_tool_02-group
Price: 0.4 GBP
Availability: InStock

Part No. am3653_530mm_cordless_lawn_mower_power_tool_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

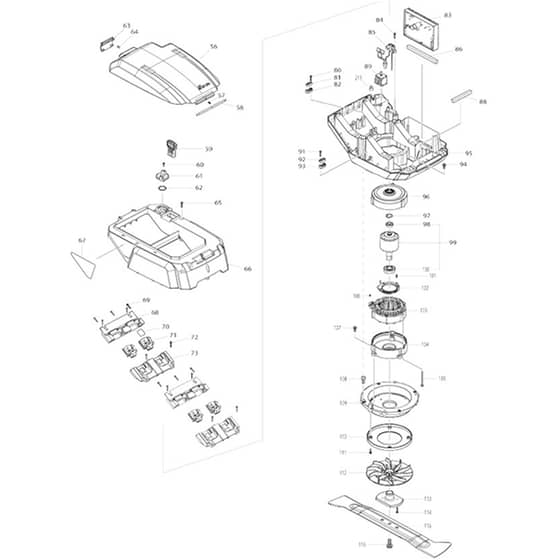

Makita AM3653 - 530mm Cordless Lawn Mower - Power Tool 02 Diagram

Description

Model No. AM3653

530mm Cordless Lawn Mower

Power Tool 02 Parts Diagrams

	Part No.	Details
13	MK266424-2 Available to backorder	Tapping Screw 4x20 (Refs 018 \| 027 \| 040 \| 042 \| 065 \| 069 \| 072 \| 080 \| 084 \| 091 \| 114 \| 121 \| 168 \| 213)	£0.48 £0.40
15	MK140F09-7 Available to backorder	Switch Circuit Complete	£14.40 £12.00
15	MK810D46-0 Available to backorder	Switch Label (C10)	£4.20 £3.50
16	MK818A74-1 Available to backorder	Switch Label (C10)	£3.24 £2.70
16	MK140F10-2 Available to backorder	Switch Circuit Complete	£13.56 £11.30
17	MK232575-3 Available to backorder	Torsion Spring 12	£0.65 £0.54
19	MK687124-5 Available to backorder	Strain Relief (Refs 039 \| 081 \| 092)	£0.48 £0.40
20	MK459908-9 Available to backorder	Switch Box	£3.24 £2.70
21	MK620C48-0 Available to backorder	Indication Circuit Complete	£23.04 £19.20
21	MK8007C8-5 Available to backorder	Indication Label (C10)	£1.79 £1.49
30	MK911138-5 Available to backorder	P.H.Screw M4x20 With Wr	£0.48 £0.40
31	MK459863-5 Available to backorder	Switch Lever Support L	£2.10 £1.75
31	MK931102-0 Available to backorder	Hex. Nut M4 (C10)	£0.70 £0.58
32	MK327424-8 Available to backorder	Switch Lever	£7.92 £6.60
33	MK459856-2 Available to backorder	Switch Lever Support R	£2.38 £1.98
35	MK8007C6-9 Available to backorder	Indication Label (C10)	£0.48 £0.40
36	MK459857-0 Available to backorder	Lock Off Button	£1.32 £1.10
37	MK231227-3 Available to backorder	Compression Spring 15	£0.84 £0.70
43	MK699144-7 Available to backorder	Power Supply Cord Unit	£22.44 £18.70
44	MK327421-4 Available to backorder	Handle Upper	£27.12 £22.60
45	MK252278-3 Available to backorder	Hex. Cap Nut M8	£0.65 £0.54
46	MK327422-2 Available to backorder	Handle Lower	£28.08 £23.40
47	MK265A62-3 Available to backorder	Flat Head Bolt M8x38	£0.84 £0.70
50	MK459905-5 Available to backorder	Clamp	£0.98 £0.82
51	MK921451-3 Available to backorder	Hex. Bolt M8x30	£1.58 £1.32
54	MK699142-1 Available to backorder	Power Supply Cord Unit	£5.88 £4.90
55	MK327866-6 Available to backorder	Grass Catcher Bracket (C20)	£16.44 £13.70
56	MK140S03-7 Available to backorder	Battery Cover Complete	£14.52 £12.10
56	MK890380-0 Available to backorder	Caution Label (C10)	£0.48 £0.40
57	MK961018-5 Available to backorder	Stop Ring E-5	£0.48 £0.40
58	MK327536-7 Available to backorder	Rod 6	£1.15 £0.96
59	MK643535-4 Available to backorder	Key	£3.48 £2.90
60	MK266404-8 Available to backorder	Tapping Screw Bind 3x14	£0.48 £0.40
61	MK459851-2 Available to backorder	Switch Lever	£1.32 £1.10
62	MK213896-2 Available to backorder	O-Ring 24	£1.49 £1.24
63	MK459852-0 Available to backorder	Lock Lever	£1.15 £0.96
64	MK231037-8 Available to backorder	Compression Spring 7	£0.48 £0.40
66	MK459900-5 Available to backorder	Cowling Upper	£24.00 £20.00
68	MK183N78-3 Available to backorder	Terminal Housing Set (INC. 73)	£8.52 £7.10
68	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
71	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
82	MK687051-6 Available to backorder	Strain Relief	£0.89 £0.74
83	MK620C46-4 Available to backorder	Controller	£345.95 £288.29
85	MK632P74-5 Available to backorder	Lead Unit	£12.24 £10.20
86	MK422529-0 Available to backorder	Sponge B	£0.84 £0.70
88	MK422528-2 Available to backorder	Sponge A	£0.65 £0.54
89	MK651444-3 Available to backorder	Switch 1703.4703	£15.36 £12.80
94	MK911233-1 Available to backorder	Pan Head Screw M5x20	£0.48 £0.40
95	MK459848-1 Available to backorder	Cowling Lower	£25.32 £21.10
96	MK319869-4 Available to backorder	Motor Housing Upper	£11.40 £9.50
97	MK253455-0 Available to backorder	Wave Washer 19	£0.65 £0.54
98	MK210141-6 Available to backorder	Ball Bearing 6000Ddw	£1.58 £1.32
99	MK519606-8 Available to backorder	Rotor Ass'y (INC. 98 100)	£120.12 £100.10
100	MK211387-7 Available to backorder	Ball Bearing 6004Llu	£7.32 £6.10
101	MK265B29-7 Available to backorder	Tapping Screw Pt 2x8	£0.48 £0.40
102	MK620B88-2 Available to backorder	Controller B	£29.28 £24.40
103	MK629465-3 Available to backorder	Stator	£162.60 £135.50
104	MK319870-9 Available to backorder	Motor Housing Lower	£13.44 £11.20
106	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
108	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25	£0.48 £0.40
109	MK319867-8 Available to backorder	Motor Bracket	£27.24 £22.70
110	MK459853-8 Available to backorder	Baffle Plate	£2.56 £2.13
111	MK911126-2 Available to backorder	Pan Head Screw M4x16	£0.48 £0.40
112	MK240205-2 Available to backorder	Fan 170	£6.84 £5.70
113	MK319868-6 Available to backorder	Blade Support	£7.20 £6.00
115	MK191D52-7 Available to backorder	Blade 530 Set	£38.76 £32.30
115	MK191W87-2 Available to backorder	Blade 530 Set (Alt.)	£53.64 £44.70
116	MK265A69-9 Available to backorder	Hex. Bolt M10x35 With Wg	£1.58 £1.32
117	MK127516-1 Available to backorder	Mulching Plug Assembly (INC. 118-121)	£15.96 £13.30
118	MK459884-7 Available to backorder	Lock Lever	£1.15 £0.96
119	MK231401-3 Available to backorder	Compression Spring 7	£0.48 £0.40
120	MK459885-5 Available to backorder	Lock Lever Support	£1.15 £0.96
123	MK8007P8-6 Available to backorder	Caution Label (C10)	£0.48 £0.40
124	MK265B20-5 Available to backorder	Hex.Socket Button Head Bol (Refs 134 \| 149)	£0.48 £0.40
125	MK347579-3 Available to backorder	Handle Bracket L	£9.84 £8.20
126	MK233597-6 Available to backorder	Torsion Spring 8	£0.89 £0.74
128	MK327418-3 Available to backorder	Rod 6	£2.10 £1.75
129	MK922213-2 Available to backorder	H.S.H.Bolt M5x12 With Wr	£0.70 £0.58
130	MK459877-4 Available to backorder	Rear Flap Holder Plate	£3.14 £2.62
131	MK162692-4 Available to backorder	Rear Grip	£11.28 £9.40
132	MK347578-5 Available to backorder	Handle Bracket R	£9.84 £8.20
133	MK451825-9 Available to backorder	Clamp	£0.70 £0.58
135	MK232628-8 Available to backorder	Tension Spring 16	£5.52 £4.60
136	MK347580-8 Available to backorder	Connecting Rod	£31.80 £26.50
137	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
138	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.89 £0.74
139	MK267216-2 Available to backorder	Flat Washer 8	£0.89 £0.74
142	MK253762-1 Available to backorder	Flat Washer 8	£1.73 £1.44
147	MK347591-3 Available to backorder	Deck	£191.04 £159.20
148	MK347582-4 Available to backorder	Height Adjust Plate	£5.64 £4.70
150	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12	£0.89 £0.74
151	MK313290-9 Available to backorder	Rear Shaft Holder Cover	£2.69 £2.24
159	MK232567-2 Available to backorder	Torsion Spring 9	£1.63 £1.36
160	MK347584-0 Available to backorder	Side Discharge Plate	£1.79 £1.49
161	MK327420-6 Available to backorder	Rod 8	£1.49 £1.24
162	MK961013-5 Available to backorder	Stop Ring E-7	£0.48 £0.40
163	MK459886-3 Available to backorder	Side Discharge Cover	£4.20 £3.50
165	MK459870-8 Available to backorder	Front Grip	£6.48 £5.40
167	MK459872-4 Available to backorder	Deck Under Cover	£17.76 £14.80
169	MK265324-3 Available to backorder	Hex. Flange Head Bolt M8x12 (Refs 198 \| 203 \| 211)	£1.73 £1.44
170	MK211247-3 Available to backorder	Ball Bearing 6002Ddw (Refs 172 \| 195 \| 197 \| 204 \| 206 \| 208 \| 210)	£2.05 £1.71
171	MK127513-7 Available to backorder	Rear Wheel Assembly	£32.28 £26.90
178	MK911213-7 Available to backorder	Pan Head Screw M5x12 (Refs 180 \| 188 \| 190)	£0.48 £0.40
179	MK459867-7 Available to backorder	Wheel Cap	£6.84 £5.70
181	MK327435-3 Available to backorder	Rear Shaft Holder	£9.00 £7.50
183	MK162689-3 Available to backorder	Rear Shaft	£38.04 £31.70
185	MK162694-0 Available to backorder	Height Adjust Lever Complet	£11.40 £9.50
186	MK313368-8 Available to backorder	Rear Shaft Holder R S	£7.32 £6.10
205	MK127514-5 Available to backorder	Front Wheel Assembly	£34.20 £28.50
207	MK162688-5 Available to backorder	Front Shaft	£28.80 £24.00
212	MK341462-6 Available to backorder	Plate	£0.89 £0.74
215	MK422533-9 Available to backorder	Grommet	£0.84 £0.70
216	MK459907-1 Available to backorder	Handle Cover	£0.84 £0.70
224	MK961059-1 Available to backorder	Retaining Ring (Ext) S-19 S	£0.48 £0.40
901	MK327589-6 Available to backorder	Rod 6 (A01)	£1.15 £0.96
901	MK800A17-7 Available to backorder	Sound 94Db Label < (E01-1)	£0.48 £0.40
901	MK8018P2-7 Available to backorder	Sound 93Db Label (E01)	£0.48 £0.40
901	MK819V88-9 Available to backorder	Sound 95Db Label < (E01-2)	£0.48 £0.40
902	MK782210-8 Available to backorder	Socket Wrench 17 (A02)	£6.12 £5.10
903	MK782212-4 Available to backorder	Socket Wrench 13 (A03)	£6.60 £5.50
904	MK459887-1 Available to backorder	Side Discharge Mouth (A04)	£6.84 £5.70
