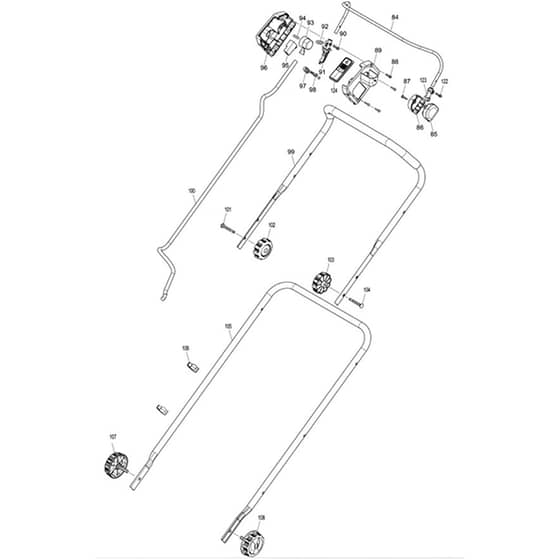

Makita AM-3743 - 430mm Cordless Lawn Mower - Power Tool 03 Diagram

Description

Model No. AM-3743

430mm Cordless Lawn Mower

Power Tool 03 Parts Diagrams

	Part No.	Details
84	MK326636-0 Available to backorder	Switch Lever	£5.76 £4.80
85	MK456351-3 Available to backorder	Switch Lever Case	£1.94 £1.62
86	MK456352-1 Available to backorder	Switch Lever Case Cover	£2.05 £1.71
87	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
89	MK890374-5 Available to backorder	Indication Label (C10)	£0.48 £0.40
89	MK143508-2 Available to backorder	Switch Box Cover	£5.28 £4.40
90	MK911138-5 Available to backorder	P.H.Screw M4x20 With Wr	£0.48 £0.40
91	MK455075-8 Available to backorder	Lever	£1.03 £0.86
92	MK231876-6 Available to backorder	Tension Spring 9	£0.48 £0.40
93	MK455074-0 Available to backorder	Switch Button	£1.22 £1.02
94	MK233068-3 Available to backorder	Compression Spring 6	£1.39 £1.16
95	MK650730-9 Available to backorder	Switch Tg72Bd-6	£20.04 £16.70
96	MK456349-0 Available to backorder	Switch Box	£5.04 £4.20
97	MK687149-9 Available to backorder	Strain Relief	£0.48 £0.40
98	MK265999-8 Available to backorder	Tapping Screw 4x25	£0.48 £0.40
99	MK143510-5 Available to backorder	Upper Pipe Complete	£18.72 £15.60
100	MK660330-7 Available to backorder	Power Supply Cord	£33.00 £27.50
101	MK265A14-4 In stock	Cup H. Square Neck Bolt	£0.94 £0.78
102	MK264070-5 Available to backorder	Thumb Nut M6	£2.53 £2.11
105	MK326635-2 Available to backorder	Lower Pipe	£17.28 £14.40
106	MK456354-7 Available to backorder	Holder	£1.32 £1.10
107	MK266729-0 Available to backorder	Thumb Screw M8x35	£3.60 £3.00
