Makita AM-3738 - 380mm Cordless Lawn Mower - Power Tool 01 Diagram

Name: Makita AM-3738 - 380mm Cordless Lawn Mower - Power Tool 01 Diagram
SKU: am_3738_380mm_cordless_lawn_mower_power_tool_01-group
Price: 0.4 GBP
Availability: InStock

Part No. am_3738_380mm_cordless_lawn_mower_power_tool_01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita AM-3738 - 380mm Cordless Lawn Mower - Power Tool 01 Diagram

Description

Model No. AM-3738

380mm Cordless Lawn Mower

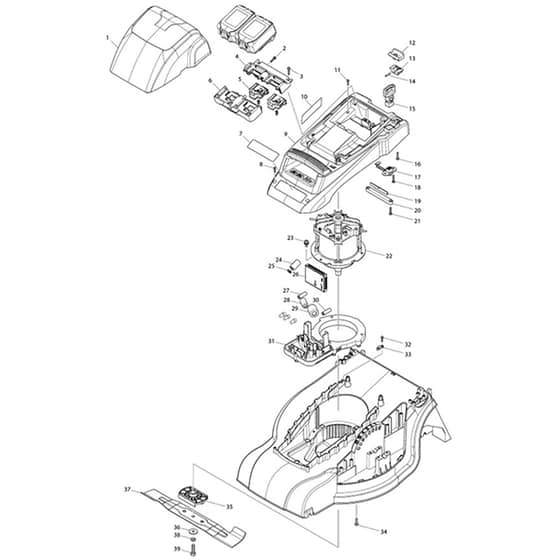

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
1	MK890380-0 Available to backorder	Caution Label (C20)	£0.48 £0.40
1	MK142585-1 Available to backorder	Battery Cover Complete	£13.56 £11.30
2	MK266424-2 Available to backorder	Tapping Screw 4x20 (Refs 003 \| 016 \| 018 \| 021 \| 032)	£0.48 £0.40
4	MK187926-4 Available to backorder	Terminal Housing Set	£12.24 £10.20
5	MK644808-8 In stock	Terminal	£3.98 £3.32
9	MK142591-6 Available to backorder	Cowling Complete	£26.28 £21.90
12	MK453250-0 Available to backorder	Lock Lever	£1.79 £1.49
13	MK453251-8 Available to backorder	Lock Lever Support	£1.63 £1.36
14	MK233173-6 Available to backorder	Compression Spring 4	£0.48 £0.40
15	MK643890-4 Available to backorder	Key	£2.53 £2.11
17	MK638946-6 Available to backorder	Lead Unit	£4.08 £3.40
19	MK620278-5 Available to backorder	Led Circuit	£6.24 £5.20
20	MK455070-8 Available to backorder	Led Cover	£1.15 £0.96
22	MK629118-4 Available to backorder	Dc Motor	£167.76 £139.80
22	MK629433-6 Available to backorder	Dc Motor S	£145.56 £121.30
23	MK266892-9 Available to backorder	Pan Head Screw M6x16	£0.65 £0.54
23	MK265A53-4 Available to backorder	Pan Head Screw M6x22	£0.65 £0.54
24	MK688162-0 Available to backorder	Line Filter	£1.73 £1.44
25	MK687010-0 Available to backorder	Band	£1.58 £1.32
26	MK620277-7 Available to backorder	Controller	£107.28 £89.40
27	MK688165-4 Available to backorder	Line Filter	£1.03 £0.86
29	MK688140-0 Available to backorder	Line Filter	£4.68 £3.90
31	MK455064-3 Available to backorder	Motor Bracket	£12.84 £10.70
33	MK687A88-9 Available to backorder	Cord Clamp	£0.65 £0.54
34	MK266420-0 Available to backorder	Tapping Screw 5x20	£0.48 £0.40
35	MK455130-6 Available to backorder	Blade Support	£2.53 £2.11
36	MK253852-0 Available to backorder	Flat Washer 8	£1.22 £1.02

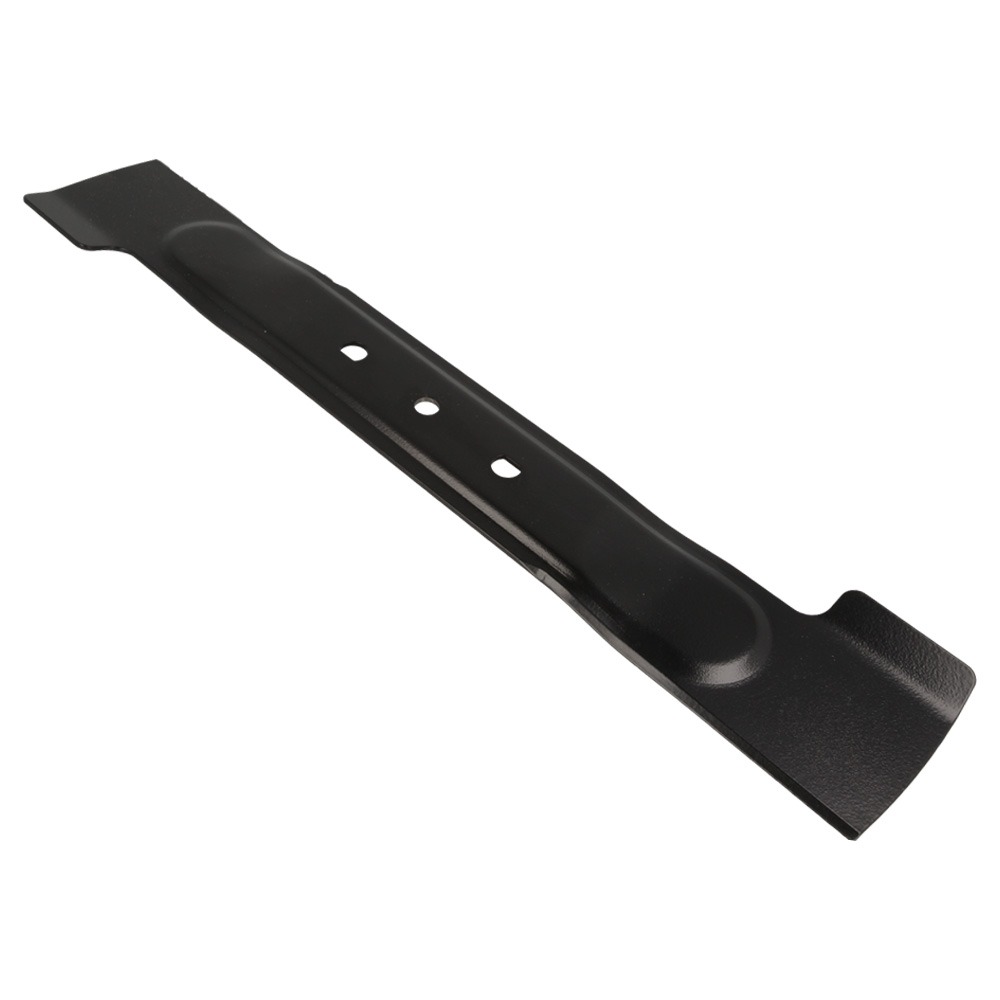

37	MK191D41-2 In stock	Blade 380 Set (Alt.)	£20.89 £17.41
38	MK942201-3 Available to backorder	Spring Washer 8	£0.48 £0.40
39	MK266889-8 Available to backorder	Hex Bolt M8x30	£1.74 £1.45
