Makita AH1875 - 750mm Cordless Hedge Trimmer - Power Tool 01 Diagram

Description

Model No. AH1875

750mm Cordless Hedge Trimmer

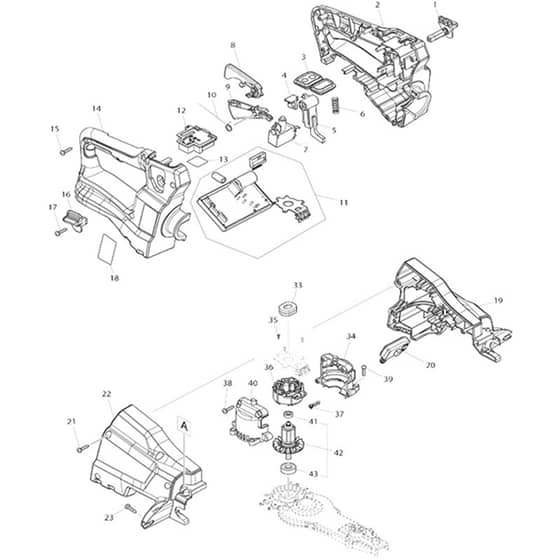

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK458406-0 Available to backorder	Lock Lever L	£1.15 £0.96
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK183J51-9 Available to backorder	Handle Set (INC. 14)	£22.68 £18.90
3	MK817C42-3 Available to backorder	Switch Label (C20)	£1.32 £1.10
3	MK140A04-7 Available to backorder	Sub Controller Complete	£39.48 £32.90
3	MK806G56-1 Available to backorder	Indication Label (C10)	£0.84 £0.70
4	MK458570-7 Available to backorder	Slider	£1.66 £1.38
5	MK458405-2 Available to backorder	Lock Arm	£1.49 £1.24
6	MK234204-4 Available to backorder	Compression Spring 8	£2.24 £1.87
7	MK650781-2 Available to backorder	Switch C3Jw-6B-P	£21.48 £17.90
8	MK458403-6 Available to backorder	Lock Off Lever	£1.49 £1.24
9	MK458404-4 Available to backorder	Switch Lever R	£1.63 £1.36
10	MK232454-5 Available to backorder	Torsion Spring 10	£6.96 £5.80
11	MK620K06-4 Available to backorder	Controller <	£132.24 £110.20
12	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
15	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 017 \| 021 \| 023 \| 038)	£0.48 £0.40
16	MK458407-8 Available to backorder	Lock Lever R	£1.15 £0.96
19	MK252143-6 Available to backorder	Collared Hex.Nut M5-8 (C10)	£0.48 £0.40
19	MK424344-8 Available to backorder	Damper (C20)	£0.89 £0.74
20	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
24	MK265182-7 Available to backorder	+ Pan Head Screw M5x25	£0.70 £0.58
25	MK458399-1 Available to backorder	Protector	£5.04 £4.20
26	MK458400-2 Available to backorder	Front Grip E	£10.92 £9.10
27	MK251476-6 Available to backorder	H.S.H.Bolt M5x35 With Wr	£7.68 £6.40
27	MK265D13-4 Available to backorder	H.S.H.Bolt M5x35 With Wrm (Alt.)	£0.84 £0.70
28	MK253416-0 Available to backorder	Dish Washer 5	£1.79 £1.49
29	MK257678-2 Available to backorder	Sleeve 6	£2.10 £1.75
30	MK422260-8 Available to backorder	Rubber Sleeve 8	£2.69 £2.24
31	MK233222-9 Available to backorder	Compression Spring 5	£3.14 £2.62
33	MK422261-6 Available to backorder	Rubber Sleeve	£2.56 £2.13
34	MK183L66-8 Available to backorder	Motor Housing Set (INC. 40 *)	£4.44 £3.70
35	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
36	MK629352-6 In stock	Stator	£32.88 £27.40
37	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
39	MK911128-8 In stock	P.H.Screw M4x16 With Wr (Alt.)	£0.54 £0.45
39	MK265178-8 Available to backorder	Pan Head Screw M4x16	£0.70 £0.58
41	MK211157-4 Available to backorder	Ball Bearing 695Zz	£2.21 £1.84
42	MK510450-6 Available to backorder	Rotor Assy < (INC. 41 43 *)	£26.76 £22.30
43	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
43	MK210005-4 Available to backorder	Ball Bearing 608Ddw <	£8.04 £6.70
