Model No. AC310H

Air Compressor

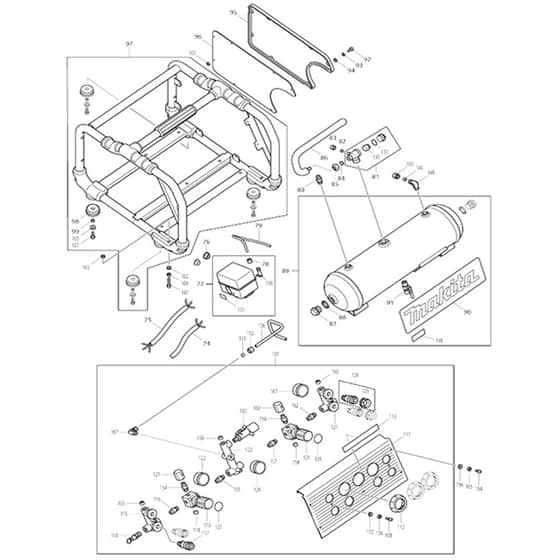

Power Tool 02 Parts Diagrams

	Part No.	Details
1	MKHY00000213 Available to backorder	Hex Socket Head Bolt M6x90	£1.03 £0.86
2	MKHY00000214 Available to backorder	Spring Washer 6 (Refs 104 \| 141)	£0.48 £0.40
3	MKHY00000215 Available to backorder	Flat Washer 6	£0.48 £0.40
4	MKHY00000216 Available to backorder	Cylinder Head L	£8.88 £7.40
5	MKHY00000217 Available to backorder	Head Gasket L	£1.58 £1.32
6	MKHY00000218 Available to backorder	Valve Plate L Complete	£11.76 £9.80
7	MKHY00000219 Available to backorder	Outlet Valve	£2.21 £1.84
8	MKHY00000220 Available to backorder	Inlet Valve	£2.38 £1.98
9	MKHY00000221 Available to backorder	Cylinder Gasket L	£1.58 £1.32
10	MKHY00000223 Available to backorder	Cylinder L (50Hz)	£13.32 £11.10
11	MKHY00000224 Available to backorder	Elbow 8-R1/4 (Refs 142 \| 148 \| 167)	£4.44 £3.70
12	MKHY00000225 Available to backorder	Ring 8 (Refs 143 \| 149 \| 151)	£1.03 £0.86
13	MKHY00000226 Available to backorder	Ring Nut 8 (Refs 144 \| 150 \| 152)	£1.39 £1.16
14	MKHY00000227 Available to backorder	Elbow 10-R3/8	£4.92 £4.10
15	MKHY00000228 Available to backorder	Ring 10	£1.03 £0.86
16	MKHY00000229 Available to backorder	Ring Nut 10	£1.22 £1.02
17	MKHY00000230 Available to backorder	Connecting Rod L Assembly	£136.68 £113.90
18	MKHY00000231 Available to backorder	Sheet Ring L	£38.88 £32.40
19	MKHY00000232 Available to backorder	Leaf Spring L	£1.22 £1.02
20	MKHY00000233 Available to backorder	Wearing L	£20.28 £16.90
21	MKHY00000234 Available to backorder	Hex Nut M18	£1.03 £0.86
22	MKHY00000235 Available to backorder	Coned Disc Spring 18	£0.48 £0.40
23	MKHY00000237 Available to backorder	Balancer (50Hz)	£11.40 £9.50
24	MKHY00000238 Available to backorder	Spacer (Refs 140 \| 145)	£1.39 £1.16
25	MKHY00000239 Available to backorder	Crank Spacer L	£2.38 £1.98
26	MKHY00000240 Available to backorder	Crank Spacer H	£1.39 £1.16
27	MKHY00000241 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
28	MKHY00000242 Available to backorder	Flat Washer 5 (Refs 065 \| 094 \| 110 \| 166)	£0.48 £0.40
29	MKHY00000243 Available to backorder	Tapping Screw 4x18 (Refs 134 \| 146)	£0.48 £0.40
30	MKHY00000244 Available to backorder	Filter Cover	£1.74 £1.45
31	MKHY00000245 Available to backorder	Filter	£1.74 £1.45
32	MKHY00000246 Available to backorder	Crank Case Cover	£4.68 £3.90
33	MKHY00000247 Available to backorder	O-Ring 147	£1.03 £0.86
34	MKHY00000248 Available to backorder	Connecting Rod H Assembly	£110.04 £91.70
35	MKHY00000249 Available to backorder	Sheet Ring H	£36.36 £30.30
36	MKHY00000250 Available to backorder	Leaf Spring H	£1.22 £1.02
37	MKHY00000251 Available to backorder	Wearing H	£20.28 £16.90
38	MKHY00000252 Available to backorder	Pipe 8	£5.40 £4.50
39	MKHY00000253 Available to backorder	Hex Socket Head Bolt M8x70	£1.73 £1.44
40	MKHY00000254 Available to backorder	Flat Washer 8	£0.48 £0.40
41	MKHY00000255 Available to backorder	Spring Washer 8	£0.48 £0.40
42	MKHY00000256 Available to backorder	Cylinder Head H	£8.04 £6.70
43	MKHY00000257 Available to backorder	Head Gasket H	£1.58 £1.32
44	MKHY00000258 Available to backorder	Valve Plate H Complete	£11.52 £9.60
45	MKHY00000259 Available to backorder	Cylinder Gasket H	£1.58 £1.32
46	MKHY00000261 Available to backorder	Cylinder H (50Hz)	£9.60 £8.00
47	MKHY00000262 Available to backorder	Staffing L	£1.39 £1.16
48	MKHY00000263 Available to backorder	Staffing H	£1.58 £1.32
49	MKHY00000264 Available to backorder	Hex Nut M8	£0.48 £0.40
50	MKHY00000266 Available to backorder	Capacitor Run Assembly	£14.28 £11.90
51	MKHY00000267 Available to backorder	Hex Socket Head Bolt M6x40	£0.48 £0.40
52	MKHY00000268 Available to backorder	Flat Washer 6	£0.48 £0.40
53	MKHY00000269 Available to backorder	Sleeve 6	£1.39 £1.16
54	MKHY00000270 Available to backorder	Cushion	£1.90 £1.58
55	MKHY00000271 Available to backorder	Crank Case	£59.16 £49.30
56	MKHY00000272 Available to backorder	Ball Bearing 6305Llb	£14.76 £12.30
57	MKHY00000273 Available to backorder	Bearing Retainer	£1.39 £1.16
58	MKHY00000274 Available to backorder	Countersunk Head Screw M5x12	£0.48 £0.40
59	MKHY00000276 Available to backorder	Stator	£192.00 £160.00
60	MKHY00000277 Available to backorder	Key 6	£1.03 £0.86
61	MKHY00000278 Available to backorder	Rotor	£119.52 £99.60
62	MKHY00000279 Available to backorder	Ball Bearing 6303Llb	£9.48 £7.90
63	MKHY00000280 Available to backorder	O-Ring 49	£1.03 £0.86
64	MKHY00000281 Available to backorder	Rear Bracket	£14.76 £12.30
66	MKHY00000282 Available to backorder	Spring Washer 5 (Refs 093 \| 109 \| 139 \| 165)	£0.48 £0.40
67	MKHY00000283 Available to backorder	Hex Bolt M5x146	£1.22 £1.02
68	MKHY00000284 Available to backorder	Fan 195	£3.72 £3.10
69	MKHY00000285 Available to backorder	Retaining Ring 14	£0.48 £0.40
70	MKHY00000286 Available to backorder	Motor Cover B	£20.28 £16.90
71	MKHY00000287 Available to backorder	Bushing	£0.70 £0.58
72	MKHY00000289 Available to backorder	Thermal Circuit Breaker	£3.84 £3.20
73	MKHY00000290 Available to backorder	Motor Cover C	£7.32 £6.10
75	MKHY00000295 Available to backorder	Cord	£2.83 £2.36
76	MKHY00000297 Available to backorder	Cord Cramp	£0.70 £0.58
77	MKHY00000299 Available to backorder	Switch Assembly	£163.56 £136.30
78	MKHY00000300 Available to backorder	Ring Nut 6	£1.03 £0.86
79	MKHY00000301 Available to backorder	Pipe 6	£4.08 £3.40
80	MKHY00000302 Available to backorder	Barrel Nipple R1/4-25	£1.03 £0.86
81	MKHY00000303 Available to backorder	Check Valve	£10.80 £9.00
82	MKHY00000304 Available to backorder	Ring 6	£1.03 £0.86
83	MKHY00000305 Available to backorder	Ring Nut 6	£1.03 £0.86
86	MKHY00000306 Available to backorder	Pipe 10	£12.24 £10.20
87	MKHY00000307 Available to backorder	Hex Flange Bolt G1/2(Pf1/2)	£1.58 £1.32
88	MKHY00000308 Available to backorder	Rubber Seal 20	£0.70 £0.58
89	MKHY00000310 Available to backorder	Tank Complete	£967.68 £806.40
90	MKHY00000311 Available to backorder	Indication Label	£0.70 £0.58
91	MKHY00000312 Available to backorder	Drain Valve R3/8	£5.64 £4.70
92	MKHY00000313 Available to backorder	Pan Head Screw M5x10	£0.48 £0.40
95	MKHY00000314 Available to backorder	Side Panel Cover	£3.60 £3.00
96	MKHY00000315 Available to backorder	Side Panel	£12.36 £10.30
97	MKHY00000316 Available to backorder	Frame Complete	£161.88 £134.90
172	MKHY00000369 Available to backorder	Caster (C10)	£35.52 £29.60
