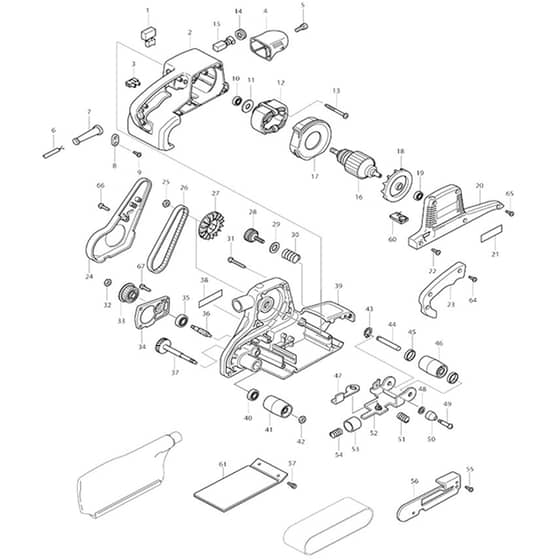

Makita 9920 - Belt Sander 76mm - Power Tool Diagram

Description

Model No. 9920

Belt Sander 76mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK651284-9 Available to backorder	Switch Sgel115Cdy-6	£7.52 £6.27
2	MK151743-8 Available to backorder	Motor Housing Complete	£40.16 £33.47
2	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
3	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
4	MK417049-7 Available to backorder	Front Grip	£5.06 £4.22
5	MK266173-1 Available to backorder	Tapping Screw 5x30	£0.74 £0.62
6	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
7	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
7	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
8	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
9	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 022 \| 064)	£0.48 £0.40
10	MK211088-7 Available to backorder	Ball Bearing 6000Ddw	£5.48 £4.57
11	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
11	MK681649-1 Available to backorder	Insulation Washer	£0.74 £0.62
11	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
11	MK654501-6 Available to backorder	Connector P-1.25 < (C21)	£0.48 £0.40
12	MK523404-4 Available to backorder	Field Ass'y 230-240V	£32.80 £27.33
13	MK266056-5 Available to backorder	Tapping Screw 5x45	£0.86 £0.72
14	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.32 £1.10
14	MK643515-0 Available to backorder	Holder Cap 7-11 (Alt.)	£1.02 £0.85
15	MK194996-6 Available to backorder	Carbon Brush Set Cb-303 (Alt.)	£3.92 £3.27
16	MK513339-7 Available to backorder	Armature Ass'y 230-240V	£80.18 £66.82
17	MK417050-2 Available to backorder	Baffle Plate	£1.74 £1.45
18	MK240026-2 Available to backorder	Fan 75	£2.18 £1.82
19	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.34 £2.78
20	MK417048-9 Available to backorder	Motor Cover	£10.26 £8.55
21	MK819001-5 Available to backorder	Makita Label	£0.58 £0.48
23	MK417051-0 Available to backorder	Handle Cover	£4.34 £3.62
24	MK417052-8 Available to backorder	Belt Cover	£3.34 £2.78
25	MK252153-3 Available to backorder	Hex. Nut M6-10	£0.48 £0.40
26	MK225084-9 Available to backorder	Synchro Belt 6-330	£4.34 £3.62
27	MK241663-5 Available to backorder	Fan 76	£13.28 £11.07
28	MK251815-0 Available to backorder	Screw M6x25	£0.74 £0.62
29	MK253707-9 Available to backorder	Flat Washer 16	£0.48 £0.40
30	MK232573-7 Available to backorder	Compression Spring 16 S	£0.82 £0.68
30	MK231225-7 Available to backorder	Compression Spring 16	£0.48 £0.40
31	MK266050-7 Available to backorder	Tapping Screw 4x30	£0.58 £0.48
32	MK931402-8 Available to backorder	Hex. Nut M8	£0.58 £0.48
33	MK222156-1 Available to backorder	Pulley 9.5-46.0	£8.38 £6.98
34	MK317273-1 Available to backorder	Gear Cover	£7.96 £6.63
35	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
36	MK226520-8 Available to backorder	Helical Gear 10	£8.08 £6.73
37	MK226519-3 Available to backorder	Helical Gear 39 (C10)	£7.92 £6.60
37	MK151755-1 Available to backorder	Helical Gear 39 Complete	£15.46 £12.88
38	MK852053-3 Available to backorder	Name Plate 9920	£0.74 £0.62
39	MK214116-7 Available to backorder	Plane Bearing 12 (C20)	£1.32 £1.10
39	MK212043-2 Available to backorder	Needle Bearing 810 (C10)	£1.74 £1.45
39	MK344828-9 Available to backorder	Plate (C30)	£0.48 £0.40
39	MK151747-0 Available to backorder	Frame Complete	£93.32 £77.77
39	MK214101-0 Available to backorder	Plane Bearing 12 < (C21)	£4.04 £3.37
41	MK162217-4 Available to backorder	Driving Roller	£17.20 £14.33
42	MK252154-1 Available to backorder	Hex. Nut M8-13	£0.48 £0.40
43	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
44	MK323931-9 Available to backorder	Tension Roller Shaft	£3.46 £2.88
45	MK253922-5 Available to backorder	Cup Washer 12	£0.86 £0.72
46	MK151753-5 Available to backorder	Tension Roller Complete	£19.64 £16.37
46	MK413012-8 Available to backorder	Sponge Sheet 30-47 (C20)	£0.48 £0.40
47	MK344823-9 Available to backorder	Lever	£2.32 £1.93
48	MK267731-6 Available to backorder	Cup Washer 4	£0.86 £0.72
49	MK265059-6 Available to backorder	Shoulder Screw M4	£1.16 £0.97
50	MK416417-1 Available to backorder	Roller	£6.02 £5.02
51	MK233249-9 Available to backorder	Compression Spring 7	£0.48 £0.40
52	MK151744-6 Available to backorder	Tension Roller Arm Complet	£11.14 £9.28
53	MK267746-3 Available to backorder	Cup Washer 17	£1.44 £1.20
54	MK233250-4 Available to backorder	Compression Spring 12	£0.74 £0.62
55	MK266034-5 Available to backorder	Tapping Screw Ct 4x16 (Refs 065 \| 066 \| 067)	£0.48 £0.40
56	MK344822-1 Available to backorder	Safety Cover	£6.64 £5.53
57	MK911116-5 Available to backorder	Pan Head Screw M4x12	£0.48 £0.40
60	MK631380-9 Available to backorder	Controller	£35.98 £29.98
61	MK193198-1 Available to backorder	Carbon Plate	£15.02 £12.52

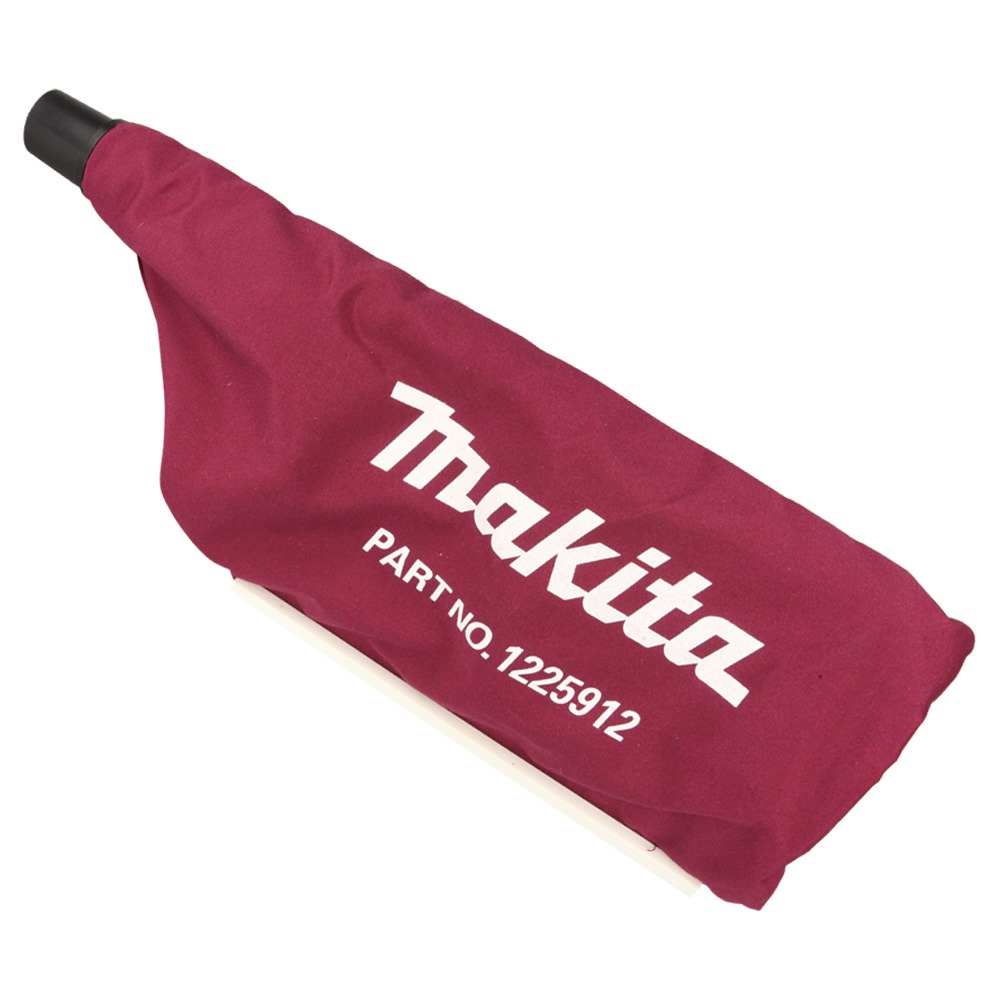

901	MK122591-2 In stock	Dust Bag Ass'y (A01)	£16.36 £13.63
901	MK410602-8 Available to backorder	Fastener (C10)	£0.58 £0.48
902	MK344848-3 Available to backorder	Strap Washer (E02)	£0.74 £0.62
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK645105-5 Available to backorder	Noise Suppressor (E03)	£2.18 £1.82
903	MK821551-8 Available to backorder	Connector Plastic Case (Typ (A03)	£62.48 £52.07
906	MK837877-8 Available to backorder	Inner Tray (A06)	£11.16 £9.30
917	MK193055-3 Available to backorder	Belt Sander Stand < (F17-1)	£110.76 £92.30
