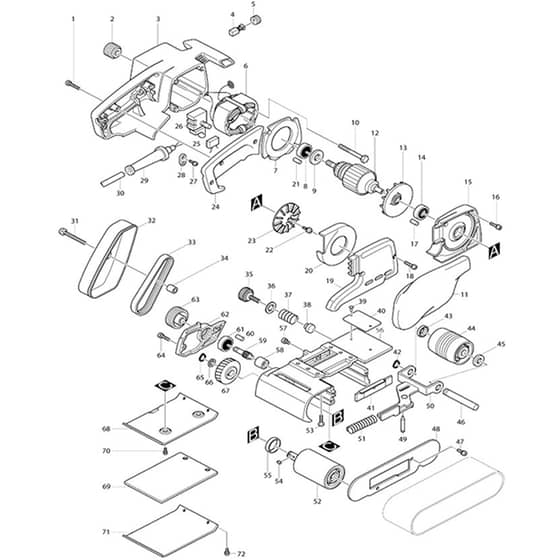

Makita 9900B - Belt Sander 76mm - Power Tool Diagram

Description

Model No. 9900B

Belt Sander 76mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK911158-9 Available to backorder	Pan Head Screw M4x30	£0.48 £0.40
2	MK222010-9 Available to backorder	V-Pulley 5-25L	£5.52 £4.60
3	MK643603-3 Available to backorder	Brush Holder 6-10 (C10)	£3.48 £2.90
3	MK156490-6 Available to backorder	Motor Housing Complete (INC. 21)	£48.96 £40.80
3	MK643609-1 Available to backorder	Brush Holder 6-10 (Alt.) (C11)	£3.96 £3.30
4	MK194974-6 Available to backorder	Carbon Brush Set Cb-100 (Alt.) (INC. 21)	£3.12 £2.60
5	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.70 £0.58
5	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.89 £0.74
5	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.70 £0.58
7	MK411322-7 Available to backorder	Baffle Plate	£2.21 £1.84
8	MK211066-7 Available to backorder	Ball Bearing 6200Llb	£5.64 £4.70
9	MK681623-9 Available to backorder	Insulation Washer	£0.89 £0.74
10	MK911270-5 Available to backorder	Pan Head Screw M5x45	£1.39 £1.16
11	MK410602-8 Available to backorder	Fastener (C10)	£0.70 £0.58
11	MK122296-4 Available to backorder	Dust Bag Ass'y	£20.52 £17.10
14	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£9.24 £7.70
15	MK312810-6 Available to backorder	Dust Collector Bracket (Alt.)	£15.36 £12.80
15	MK312E26-3 Available to backorder	Dust Collector Bracket (Alt.)	£40.32 £33.60
16	MK911241-2 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
17	MK263002-9 Available to backorder	Rubber Pin 4 (Refs 021 \| 060)	£0.48 £0.40
18	MK911131-9 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
19	MK312809-1 Available to backorder	Dust Collector Cover	£11.52 £9.60
19	MK312E27-1 Available to backorder	Dust Collector Cover (Alt.)	£14.64 £12.20
20	MK343271-9 Available to backorder	Separator	£2.21 £1.84
22	MK911211-1 Available to backorder	Pan Head Screw M5x12	£0.48 £0.40
23	MK241611-4 Available to backorder	Fan 74	£3.48 £2.90
24	MK411321-9 Available to backorder	Handle Cover	£5.28 £4.40
26	MK651225-5 Available to backorder	Switch Sgel215C S	£11.40 £9.50
27	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
28	MK687002-9 Available to backorder	Strain Relief	£0.48 £0.40
29	MK682504-0 Available to backorder	Cord Guard 10-85	£2.53 £2.11
31	MK911261-6 Available to backorder	Pan Head Screw M5x40	£0.70 £0.58
32	MK343270-1 Available to backorder	Belt Cover	£3.48 £2.90
32	MK347B53-3 Available to backorder	Belt Cover (Alt.)	£20.52 £17.10
33	MK225008-5 Available to backorder	Poly V-Belt 5-304	£14.64 £12.20
34	MK257504-5 Available to backorder	Sleeve 6	£0.70 £0.58
35	MK251815-0 Available to backorder	Screw M6x25	£0.89 £0.74
35	MK265B65-3 Available to backorder	Thumb Screw M6x27 S	£2.56 £2.13
36	MK253707-9 Available to backorder	Flat Washer 16	£0.48 £0.40
37	MK231225-7 Available to backorder	Compression Spring 16	£0.48 £0.40
38	MK411594-4 Available to backorder	Shoe	£0.70 £0.58
39	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
40	MK815002-1 Available to backorder	Name Plate 9900B	£2.10 £1.75
41	MK155326-6 Available to backorder	Edge Slider	£4.80 £4.00
42	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
43	MK253922-5 Available to backorder	Cup Washer 12 (Refs 045 \| 055)	£1.03 £0.86
44	MK413012-8 Available to backorder	Sponge Sheet 30-47 (C20)	£0.48 £0.40
44	MK214101-0 Available to backorder	Plane Bearing 12 (C10)	£4.20 £3.50
44	MK152104-5 Available to backorder	Tension Roller Complete	£18.36 £15.30
46	MK325458-5 Available to backorder	Tension Roller Shaft	£4.80 £4.00
47	MK911111-5 Available to backorder	Pan Head Screw M4x10 With	£0.48 £0.40
48	MK341359-9 Available to backorder	Safety Cover	£2.38 £1.98
49	MK323634-5 Available to backorder	Support Pin	£6.72 £5.60
50	MK163083-2 Available to backorder	Tension Roller Arm	£12.24 £10.20
51	MK231033-6 Available to backorder	Compression Spring 11	£0.89 £0.74
52	MK151113-1 Available to backorder	Driving Roller Complete	£44.04 £36.70
53	MK912227-9 Available to backorder	Countersunk Head Screw M5x18	£0.48 £0.40
54	MK254202-2 Available to backorder	Key 4	£1.03 £0.86
56	MK151187-2 Available to backorder	Frame Complete	£84.72 £70.60
58	MK212003-4 Available to backorder	Needle Bearing 810	£6.72 £5.60
59	MK221193-2 Available to backorder	Helical Gear 10	£14.88 £12.40
62	MK312E28-9 Available to backorder	Gear Cover (Alt.)	£19.92 £16.60
62	MK312808-3 Available to backorder	Gear Cover (Alt.)	£6.72 £5.60
63	MK222011-7 Available to backorder	V-Pulley 5-45	£8.40 £7.00
66	MK253312-2 Available to backorder	Thin Washer 12	£0.70 £0.58
67	MK221070-8 Available to backorder	Helical Gear 48	£15.36 £12.80
68	MK343269-6 Available to backorder	Base Plate	£7.20 £6.00
71	MK423027-7 Available to backorder	Carbon Plate 76mm	£6.24 £5.20
72	MK911114-9 Available to backorder	Pan Head Screw M4x10	£0.48 £0.40
904	MK819063-3 Available to backorder	Makita Label	£1.39 £1.16
