Makita 9557NBR - 115mm Angle Grinder - Power Tool Diagram

Description

Model No. 9557NBR

115mm Angle Grinder

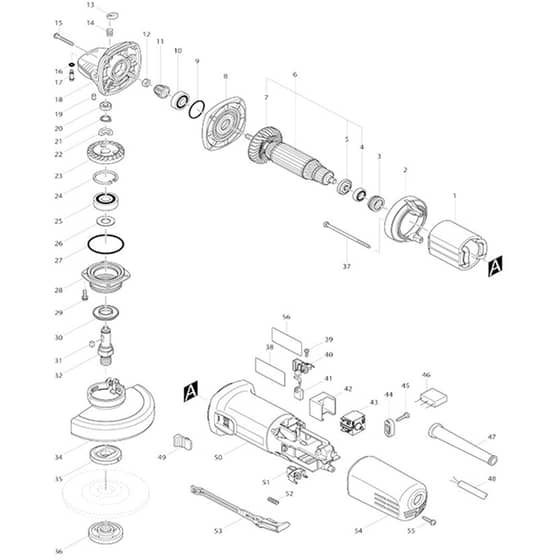

Power Tool Parts Diagrams

	Part No.	Details
1	MK621708-9 Available to backorder	Field 220-240V	£13.68 £11.40
2	MK457791-8 Available to backorder	Baffle Plate <	£0.70 £0.58
2	MK418770-1 Available to backorder	Baffle Plate	£0.70 £0.58
3	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.39 £1.16
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring19 <	£1.39 £1.16
4	MK210034-7 In stock	Ball Bearing 607Llb	£1.73 £1.44
5	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
6	MK515613-9 Available to backorder	Armature Ass'y 220-240V (INC. 4 5 7)	£33.96 £28.30
7	MK240076-7 Available to backorder	Fan 56	£1.39 £1.16
8	MK317821-6 Available to backorder	Gear Housing Cover	£3.60 £3.00
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
9	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£1.03 £0.86
10	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.12 £2.60
11	MK227464-5 Available to backorder	Spiral Bevel Gear 10	£3.84 £3.20
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.52 £0.43
14	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK265B70-0 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.48 £0.40
15	MK266050-7 Available to backorder	Tapping Screw 4x30	£0.70 £0.58
17	MK256486-8 Available to backorder	Shoulder Pin 4	£0.70 £0.58
18	MK318051-2 Available to backorder	Gear Housing (Alt.)	£6.84 £5.70
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
21	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
22	MK267794-2 Available to backorder	Wave Washer 12	£0.48 £0.40
23	MK227542-1 Available to backorder	Spiral Bevel Gear 37 S	£6.12 £5.10
23	MK227505-7 Available to backorder	Spiral Bevel Gear 37	£4.68 £3.90
24	MK962151-6 Available to backorder	Retaining Ring R-32	£0.70 £0.58
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
26	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
27	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
28	MK318331-6 Available to backorder	Bearing Box	£3.48 £2.90
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
31	MK254011-9 Available to backorder	Woodruff Key 4	£0.89 £0.74
32	MK324489-1 Available to backorder	Spindle	£3.12 £2.60
34	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
34	MK123098-1 Available to backorder	Wheel Cover 115Ak Ass'y	£7.80 £6.50
36	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
37	MK266623-6 Available to backorder	+Bind Tapping Screw 4x80	£0.48 £0.40
37	MK265B68-7 Available to backorder	Tapping Screw 4x80 (Alt.)	£0.48 £0.40
38	MK851S96-6 Available to backorder	9557Nbr Name Plate	£0.48 £0.40
39	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
40	MK643760-7 Available to backorder	Brush Holder	£3.12 £2.60
41	MK194074-2 In stock	Carbon Brush Cb-325	£2.80 £2.33
42	MK418729-8 Available to backorder	Spacer	£0.48 £0.40
43	MK650769-2 Available to backorder	Switch	£16.32 £13.60
44	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
45	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
45	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
46	MK638740-6 Available to backorder	Capacitor Unit	£2.83 £2.36
47	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
49	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
50	MK451125-7 Available to backorder	Motor Housing	£10.92 £9.10
52	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
53	MK418728-0 Available to backorder	Switch Lever B	£0.70 £0.58
54	MK413A32-8 Available to backorder	Rear Cover <	£3.14 £2.62
56	MK805W65-3 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.73 £1.44
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.94 £1.62
902	MK194514-0 Available to backorder	Vibration Proof Grip Set (F02)	£24.24 £20.20
904	MK195239-9 Available to backorder	115/125mm Dust Cover K Set < (F04-1)	£109.56 £91.30
915	MK192227-7 Available to backorder	Super Flange (F15)	£23.40 £19.50
926	MK743129-6 Available to backorder	Brush A (C10)	£26.28 £21.90
926	MK743130-1 Available to backorder	Brush B (C20)	£24.84 £20.70
