Makita 9556PB - 100mm Angle Grinder - Power Tool Diagram

Description

Model No. 9556PB

100mm Angle Grinder

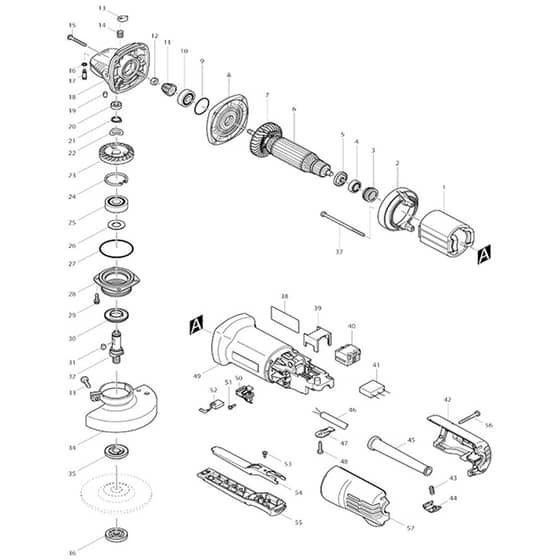

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK621708-9 Available to backorder	Field 220-240V	£13.28 £11.07
1	MK621706-3 Available to backorder	Field 115V	£13.28 £11.07
2	MK418770-1 Available to backorder	Baffle Plate	£0.58 £0.48
2	MK457791-8 Available to backorder	Baffle Plate <	£0.58 £0.48
3	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.16 £0.97
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring19 <	£1.10 £0.92
4	MK210034-7 In stock	Ball Bearing 607Llb	£1.44 £1.20
5	MK681636-0 Available to backorder	Insulation Washer (Alt.)	£2.02 £1.68
6	MK515613-9 Available to backorder	Armature Ass'y 220-240V	£32.80 £27.33
6	MK518869-3 Available to backorder	Armature Ass'y 115V	£32.80 £27.33
7	MK240076-7 Available to backorder	Fan 56	£1.16 £0.97
8	MK317821-6 Available to backorder	Gear Housing Cover	£3.46 £2.88
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
9	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
10	MK210042-8 Available to backorder	Ball Bearing 629Llb (Alt.)	£3.04 £2.53
11	MK227464-5 Available to backorder	Spiral Bevel Gear 10	£3.76 £3.13
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.48 £0.40
14	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
15	MK266050-7 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.58 £0.48
15	MK265B70-0 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.48 £0.40
17	MK256486-8 Available to backorder	Shoulder Pin 4	£0.58 £0.48
18	MK318051-2 Available to backorder	Gear Housing (Alt.)	£6.64 £5.53
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.44 £1.20
21	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
22	MK267794-2 Available to backorder	Wave Washer 12	£0.48 £0.40
23	MK227505-7 Available to backorder	Spiral Bevel Gear 37 <	£4.48 £3.73
23	MK227542-1 Available to backorder	Spiral Bevel Gear 37 S	£5.94 £4.95
24	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
26	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
27	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
28	MK318331-6 Available to backorder	Bearing Box S	£3.34 £2.78
28	MK317819-3 Available to backorder	Bearing Box	£2.60 £2.17
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.58 £0.48
31	MK254011-9 Available to backorder	Woodruff Key 4	£0.74 £0.62
32	MK324488-3 Available to backorder	Spindle	£3.34 £2.78
33	MK265103-9 Available to backorder	Pan Head Screw M5x14	£0.48 £0.40
34	MK125266-2 Available to backorder	Wheel Cover 100 Assembly	£2.18 £1.82
34	MK122885-5 Available to backorder	Wheel Cover 100K Ass'y S	£5.94 £4.95
34	MK122B50-8 Available to backorder	Wheel Cover 100Ak Assembly <	£5.88 £4.90
34	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
35	MK224314-5 Available to backorder	Inner Flange 30	£10.98 £9.15
36	MK224559-5 Available to backorder	Lock Nut 10-30	£5.36 £4.47
37	MK265B68-7 Available to backorder	Tapping Screw 4x80 (Alt.)	£0.48 £0.40
37	MK266345-8 Available to backorder	Tapping Screw 4x80	£0.48 £0.40
37	MK266623-6 Available to backorder	+Bind Tapping Screw 4x80 (Alt.)	£0.48 £0.40
38	MK861340-9 Available to backorder	9556Pb Name Plate	£0.58 £0.48
39	MK418729-8 Available to backorder	Spacer	£0.48 £0.40
40	MK650560-8 Available to backorder	Switch Dpx-2110-R	£2.18 £1.82
41	MK638740-6 Available to backorder	Capacitor Unit S	£2.60 £2.17
42	MK183943-2 Available to backorder	Rear Cover Set	£3.34 £2.78
42	MK183U00-2 Available to backorder	Rear Cover Set <	£1.92 £1.60
43	MK231252-4 Available to backorder	Compression Spring 6	£0.48 £0.40
44	MK418842-2 Available to backorder	Lock On Button	£0.58 £0.48
45	MK682566-8 Available to backorder	Cord Guard 10	£1.16 £0.97
46	MK665918-8 Available to backorder	Power Supply Cord 1.0-2-2.5	£11.14 £9.28
46	MK692527-0 Available to backorder	Power Supply Cord 1.0-2-2.5	£29.46 £24.55
47	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
48	MK265995-6 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
48	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
48	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
49	MK418838-3 Available to backorder	Motor Housing	£5.64 £4.70
50	MK643760-7 Available to backorder	Brush Holder	£3.04 £2.53
51	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
52	MK194074-2 In stock	Carbon Brush Cb-325	£2.46 £2.05
53	MK265954-0 Available to backorder	Tapping Screw Bind Pt3x8	£0.48 £0.40
54	MK345504-8 Available to backorder	Plate	£0.74 £0.62
55	MK154584-1 Available to backorder	Switch Lever B Complete	£1.44 £1.20
56	MK266351-3 Available to backorder	Tapping Screw 4x35 (Alt.)	£0.48 £0.40
56	MK265B69-5 Available to backorder	Tapping Screw 4x35 (Alt.)	£0.48 £0.40
56	MK266053-1 Available to backorder	Tapping Screw 4x35 (Alt.)	£0.58 £0.48
58	MK805W67-9 Available to backorder	Clear Label (Alt.)	£0.48 £0.40
58	MK892373-3 Available to backorder	Clear Label	£0.48 £0.40
58	MK819355-0 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.38 £1.15
902	MK654091-9 Available to backorder	Non-Insulated Terminal1.25- (E02)	£0.58 £0.48
902	MK782420-7 Available to backorder	Lock Nut Wrench 20 (A02)	£1.08 £0.90
