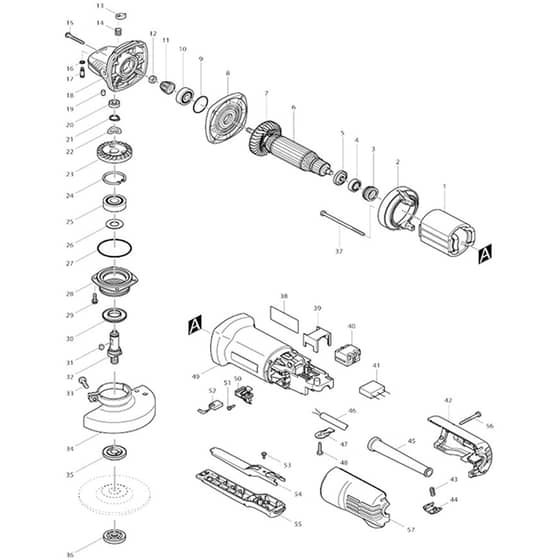

Makita 9556HP - 100mm Angle Grinder - Power Tool Diagram

Description

Model No. 9556HP

100mm Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK418770-1 Available to backorder	Baffle Plate	£0.58 £0.48
2	MK457791-8 Available to backorder	Baffle Plate <	£0.58 £0.48
3	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.16 £0.97
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring19 <	£1.10 £0.92
4	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
5	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
7	MK240076-7 Available to backorder	Fan 56	£1.16 £0.97
8	MK317821-6 Available to backorder	Gear Housing Cover	£3.46 £2.88
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
10	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.04 £2.53
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.48 £0.40
14	MK233376-2 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
17	MK256546-6 Available to backorder	Shoulder Pin 4	£0.58 £0.48
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
21	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
21	MK233950-6 Available to backorder	Ring Spring 11 S	£0.86 £0.72
22	MK267794-2 Available to backorder	Wave Washer 12	£0.48 £0.40
23	MK227542-1 Available to backorder	Spiral Bevel Gear 37	£5.94 £4.95
24	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
26	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
27	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
28	MK317819-3 Available to backorder	Bearing Box	£2.60 £2.17
28	MK318331-6 Available to backorder	Bearing Box	£3.34 £2.78
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.58 £0.48
31	MK254011-9 Available to backorder	Woodruff Key 4	£0.74 £0.62
32	MK324488-3 Available to backorder	Spindle	£3.34 £2.78
32	MK324956-6 Available to backorder	Spindle S	£3.34 £2.78
33	MK265103-9 Available to backorder	Pan Head Screw M5x14	£0.48 £0.40
34	MK122B50-8 Available to backorder	Wheel Cover 100Ak Assembly < (INC. 33)	£5.88 £4.90
34	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
34	MK125266-2 Available to backorder	Wheel Cover 100 Assembly (INC. 33 *)	£2.18 £1.82
34	MK8050A1-8 Available to backorder	Caution Label (C20)	£1.24 £1.03
35	MK224314-5 Available to backorder	Inner Flange 30	£10.98 £9.15
36	MK224559-5 Available to backorder	Lock Nut 10-30	£5.36 £4.47
37	MK266345-8 Available to backorder	Tapping Screw 4x80	£0.48 £0.40
39	MK418729-8 Available to backorder	Spacer	£0.48 £0.40
40	MK651947-7 Available to backorder	Switch 1247.0302	£7.22 £6.02
42	MK183943-2 Available to backorder	Rear Cover Set (INC. 57 *)	£3.34 £2.78
42	MK183U00-2 Available to backorder	Rear Cover Set < (INC. 57)	£1.92 £1.60
43	MK231252-4 Available to backorder	Compression Spring 6	£0.48 £0.40
44	MK418842-2 Available to backorder	Lock On Button	£0.58 £0.48
45	MK682559-5 Available to backorder	Cord Guard 8	£0.86 £0.72
46	MK692021-2 Available to backorder	Power Supply Cord 1.0-2-2.5	£8.38 £6.98
47	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
48	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
49	MK418838-3 Available to backorder	Motor Housing	£5.64 £4.70
50	MK643760-7 Available to backorder	Brush Holder	£3.04 £2.53
51	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
52	MK194074-2 In stock	Carbon Brush Cb-325	£2.46 £2.05
53	MK266492-5 Available to backorder	Tapping Screw 3x8	£0.48 £0.40
54	MK345504-8 Available to backorder	Plate	£0.74 £0.62
55	MK154584-1 Available to backorder	Switch Lever B Complete	£1.44 £1.20
56	MK266351-3 Available to backorder	Tapping Screw 4x35	£0.48 £0.40
58	MK892373-3 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.38 £1.15
902	MK782420-7 Available to backorder	Lock Nut Wrench 20 (A02)	£1.08 £0.90
