Model No. 8406C

Diamond Core Hammer Drill

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK323842-8 Available to backorder	Spindle S	£35.98 £29.98
3	MK285827-1 Available to backorder	Bearing Retainer 22-23	£2.60 £2.17
4	MK253316-4 Available to backorder	Thin Washer 16	£0.48 £0.40
5	MK262525-4 Available to backorder	Felt Ring 15	£0.58 £0.48
6	MK211236-8 Available to backorder	Ball Bearing 6002Ddw (Alt.)	£7.80 £6.50
7	MK223091-6 Available to backorder	Cam (A)	£27.74 £23.12
8	MK223092-4 Available to backorder	Cam (B)	£31.06 £25.88
9	MK316453-6 Available to backorder	Grip Base	£27.74 £23.12
10	MK251896-4 Available to backorder	Screw M5x20	£2.18 £1.82
11	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
12	MK159993-9 Available to backorder	Gear Housing Complete (Alt.)	£14.02 £11.68
13	MK316451-0 Available to backorder	Inner Gear Housing	£80.18 £66.82
14	MK343974-5 Available to backorder	Space Plate	£3.46 £2.88
15	MK256220-6 Available to backorder	Pin 5	£1.32 £1.10
16	MK343973-7 Available to backorder	Change Plate	£3.62 £3.02
17	MK253052-2 Available to backorder	Flat Washer 12	£0.58 £0.48
18	MK150388-9 Available to backorder	Torque Limiter Complete	£181.72 £151.43
19	MK223093-2 Available to backorder	Clutch	£32.80 £27.33
20	MK226408-2 Available to backorder	Helical Gear 43	£37.56 £31.30
21	MK253835-0 Available to backorder	Flat Washer 8	£0.58 £0.48
22	MK216001-0 Available to backorder	Steel Ball 3.5 x	£0.48 £0.40
22	MK216002-8 Available to backorder	Steel Ball 4.8	£0.48 £0.40
23	MK211031-6 Available to backorder	Ball Bearing 608Llb (Refs 025 \| 038)	£3.62 £3.02
24	MK226116-5 Available to backorder	Gear Complete 16-26-29	£117.86 £98.22
26	MK256680-2 Available to backorder	Pin 3	£5.06 £4.22
27	MK213154-6 Available to backorder	O Ring 14 (Alt.)	£0.58 £0.48
28	MK415161-7 Available to backorder	Change Lever A	£2.60 £2.17
29	MK273472-4 Available to backorder	Grip 32	£16.76 £13.97
30	MK442117-7 Available to backorder	Gear Housing Packing	£2.02 £1.68
31	MK214001-4 Available to backorder	Plane Bearing 8 (C10)	£0.86 £0.72
31	MK159547-2 Available to backorder	Gear Housing Cover (INC. 48)	£25.28 £21.07
32	MK331417-9 Available to backorder	Seal	£6.22 £5.18
33	MK267108-5 Available to backorder	Flat Washer 22	£1.32 £1.10
34	MK211101-1 Available to backorder	Ball Bearing 6001Llb	£10.98 £9.15
35	MK232127-0 Available to backorder	Leaf Spring	£3.62 £3.02
37	MK681625-5 Available to backorder	Insulation Washer	£0.58 £0.48
39	MK253707-9 Available to backorder	Flat Washer 16	£0.48 £0.40
40	MK415157-8 Available to backorder	Baffle Plate	£3.62 £3.02
42	MK632462-0 Available to backorder	Support Complete	£7.22 £6.02
43	MK266029-8 Available to backorder	Tapping Screw 5x65	£1.16 £0.97
44	MK819711-4 Available to backorder	Label	£0.86 £0.72
45	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
46	MK194994-0 Available to backorder	Carbon Brush Set Cb-253 (Alt.)	£5.88 £4.90
47	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.32 £1.10
47	MK643515-0 Available to backorder	Holder Cap 7-11 (Alt.)	£1.02 £0.85
49	MK256092-9 Available to backorder	Pin 4	£0.86 £0.72
51	MK415162-5 Available to backorder	Change Laver B	£2.60 £2.17
53	MK322583-3 Available to backorder	Change Shaft	£14.02 £11.68
54	MK857299-6 Available to backorder	Name Plate 8406C	£1.16 £0.97
55	MK816265-2 Available to backorder	Indication Label	£0.86 £0.72
56	MK911293-3 Available to backorder	Pan Head Screw M5x70	£1.10 £0.92
57	MK421447-9 Available to backorder	Rubber Block (B)	£0.74 £0.62
58	MK183S48-2 Available to backorder	Handle Set S (INC. 72)	£16.92 £14.10
58	MK182806-9 Available to backorder	Handle Set S (INC. 72 *)	£23.68 £19.73
59	MK421446-1 Available to backorder	Rubber Block (A)	£1.16 £0.97
60	MK415158-6 Available to backorder	Switch Lever	£3.62 £3.02
61	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
62	MK159840-4 Available to backorder	Motor Housing Complete (INC. 45)	£54.76 £45.63
62	MK643751-8 Available to backorder	Brush Holder (C10)	£5.20 £4.33
63	MK688105-2 Available to backorder	Magnet Sleeve	£14.88 £12.40
64	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
65	MK256221-4 Available to backorder	Pin 3	£0.48 £0.40
66	MK233024-3 Available to backorder	Compression Spring 4	£0.48 £0.40
67	MK415160-9 Available to backorder	Lock Button	£2.18 £1.82
69	MK415159-4 Available to backorder	Spacer	£2.02 £1.68
70	MK421448-7 Available to backorder	Rubber Band	£1.32 £1.10
71	MK650677-7 Available to backorder	Switch C3Pa-1112 <	£11.56 £9.63

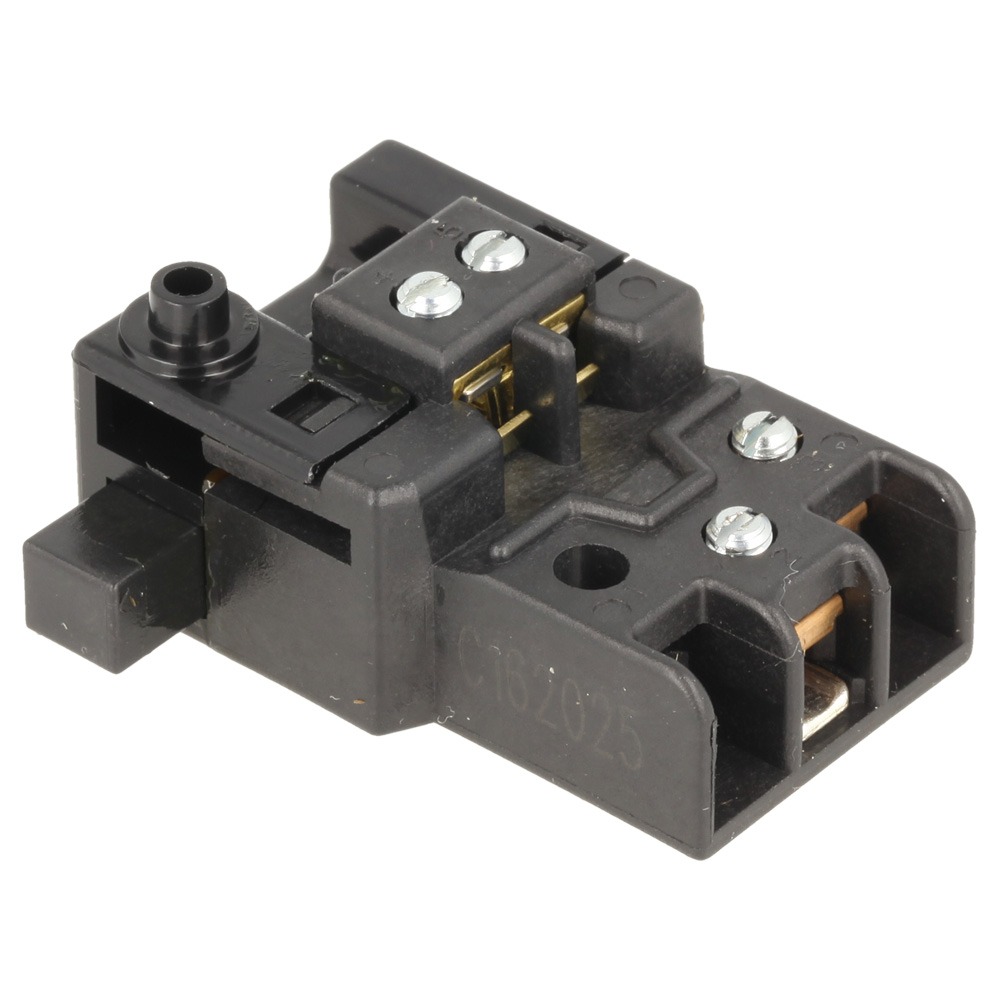

71	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
73	MK418905-4 Available to backorder	Dial (Alt.)	£0.86 £0.72
73	MK271413-4 Available to backorder	Knob 28	£5.94 £4.95
75	MK687052-4 Available to backorder	Strain Relief x	£0.74 £0.62
75	MK687063-9 Available to backorder	Cord Clamp	£0.48 £0.40
76	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
76	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
79	MK415156-0 Available to backorder	Controller Case	£4.36 £3.63
80	MK631207-3 Available to backorder	Controller 200/220/240V x	£263.08 £219.23
81	MK265999-8 Available to backorder	Tapping Screw 4x25 x	£0.48 £0.40
81	MK911158-9 Available to backorder	Pan Head Screw M4x30	£0.48 £0.40
82	MK241863-7 Available to backorder	Fan 70	£2.02 £1.68
83	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
84	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
85	MK256251-5 Available to backorder	Pin 4	£0.58 £0.48
902	MK321059-7 Available to backorder	Depth Gauge (A02)	£5.20 £4.33
903	MK410102-8 Available to backorder	Key Holder (A03)	£0.86 £0.72
904	MK763432-9 Available to backorder	Chuck Key S13 (A04)	£4.54 £3.78
905	MK416401-6 Available to backorder	Latch (C10)	£2.12 £1.77
905	MK819033-2 Available to backorder	Makita Label (C10)	£0.58 £0.48
905	MK824522-4 Available to backorder	Plastic Carrying Case (Alt.) (A05-1)	£52.52 £43.77
905	MK163455-1 Available to backorder	Latch x (C11)	£1.60 £1.33
