Model No. 7104L

Chain Mortiser

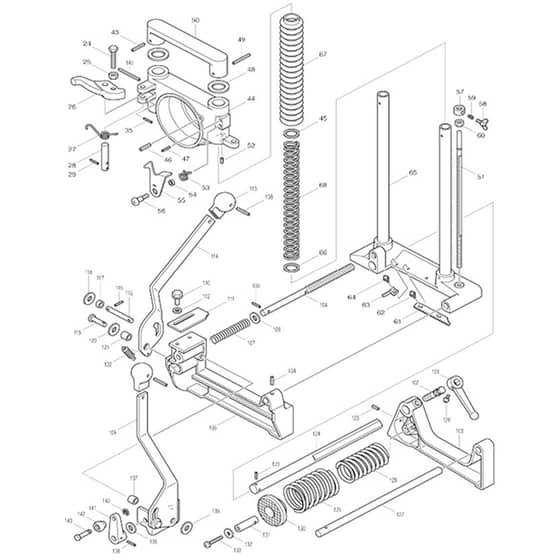

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK682573-1 Available to backorder	Cord Guard 10	£0.74 £0.62
5	MK687053-2 Available to backorder	Strain Relief	£0.86 £0.72
6	MK652014-1 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
7	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 152 \| E01)	£0.48 £0.40
9	MK911226-8 Available to backorder	Pan Head Screw M5x18	£0.48 £0.40
12	MK651057-0 Available to backorder	Switch Tg71Cl-2	£25.28 £21.07
13	MK645261-1 Available to backorder	Noise Suppressor	£5.20 £4.33
14	MK157044-2 Available to backorder	Gear Housing (INC. 90)	£40.16 £33.47
14	MK643653-8 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.46 £2.88
14	MK913206-0 Available to backorder	Set Screw M5x8 (C20)	£0.48 £0.40
15	MK142200-7 Available to backorder	Motor Housing Complete < (INC. 90)	£104.86 £87.38
15	MK154627-9 Available to backorder	Motor Housing Complete (INC. 90)	£95.04 £79.20
16	MK681002-1 Available to backorder	Insulation Washer	£0.58 £0.48
17	MK194985-1 Available to backorder	Carbon Brush Set Cb-153 (Alt.)	£4.24 £3.53
18	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
20	MK183V03-2 Available to backorder	Handle Set S	£61.30 £51.08
20	MK273416-4 Available to backorder	Grip 25	£5.20 £4.33
21	MK141H49-0 Available to backorder	Handle Stay S	£31.00 £25.83
21	MK341571-1 Available to backorder	Grip Holder L	£7.22 £6.02
22	MK911206-4 Available to backorder	Pan Head Screw M5x10	£0.48 £0.40
23	MK231747-7 Available to backorder	Tension Spring 20	£11.26 £9.38
24	MK265254-8 Available to backorder	Hex. Bolt M8x44	£1.44 £1.20
25	MK931402-8 Available to backorder	Hex. Nut M8 (Refs 037 \| 060)	£0.58 £0.48
26	MK331162-6 Available to backorder	Lever C	£14.32 £11.93
27	MK231551-4 Available to backorder	Torsion Spring 12	£0.74 £0.62
28	MK256114-5 Available to backorder	Pin 10	£2.18 £1.82
29	MK951116-3 Available to backorder	Spring Pin 4-20 (Refs 035 \| 047 \| 105 \| 116 \| 138)	£0.48 £0.40
30	MK154397-0 Available to backorder	Chain Cover Complete	£187.84 £156.53
31	MK265253-0 Available to backorder	Hex. Bolt M10	£1.74 £1.45
32	MK942253-4 Available to backorder	Spring Washer 10	£0.48 £0.40
33	MK941252-3 Available to backorder	Flat Washer 10	£0.48 £0.40
34	MK251852-4 Available to backorder	Screw M8x28	£3.46 £2.88
38	MK232068-0 Available to backorder	Leaf Spring	£1.32 £1.10
39	MK911109-2 Available to backorder	Pan Head Screw M4x8 (Refs 062 \| 064)	£0.48 £0.40
40	MK911908-2 Available to backorder	Pan Head Screw M5x80	£0.86 £0.72
41	MK921222-8 Available to backorder	Hex. Bolt M5x16	£0.58 £0.48
42	MK931202-6 Available to backorder	Hex. Nut M5	£0.48 £0.40
43	MK951172-3 Available to backorder	Spring Pin 5-32 (Refs 108 \| C10)	£0.48 £0.40
44	MK310172-6 Available to backorder	Rotor Holder	£162.44 £135.37
44	MK310546-1 Available to backorder	Rotor Holder <	£200.09 £166.74
45	MK253042-5 Available to backorder	Flat Washer 24	£0.74 £0.62
46	MK951213-5 Available to backorder	Spring Pin 6-24	£0.58 £0.48
48	MK261022-7 Available to backorder	Rubber Washer 24	£1.16 £0.97
49	MK951181-2 Available to backorder	Spring Pin 5-45	£0.74 £0.62
50	MK319052-3 Available to backorder	Carry Handle <	£43.78 £36.48
51	MK325057-3 Available to backorder	Depth Gauge	£6.94 £5.78
52	MK951151-1 Available to backorder	Spring Pin 5-12	£0.48 £0.40
53	MK231543-3 Available to backorder	Torsion Spring 13	£1.32 £1.10
54	MK257005-3 Available to backorder	Ring 8	£2.32 £1.93
55	MK341585-0 Available to backorder	Hook	£3.62 £3.02
56	MK251215-4 Available to backorder	+ Pan Head Screw M6	£1.16 £0.97
57	MK252409-4 Available to backorder	Nut M10-20	£3.46 £2.88
58	MK924316-8 Available to backorder	Wing Bolt M6x15	£1.60 £1.33
59	MK231005-1 Available to backorder	Compression Spring 7	£0.48 £0.40
61	MK816045-6 Available to backorder	Indication Plate	£2.46 £2.05
63	MK341588-4 Available to backorder	Indicator Plate	£2.02 £1.68
65	MK142198-8 Available to backorder	Base Complete <	£241.07 £200.89
67	MK411723-9 Available to backorder	Bellows	£1.74 £1.45
68	MK231289-1 Available to backorder	Compression Spring 25	£3.34 £2.78
69	MK341745-4 Available to backorder	Disc	£2.18 £1.82
71	MK310569-9 Available to backorder	Chain Bar Holder <	£226.82 £189.02
72	MK951178-1 Available to backorder	Spring Pin 5-40	£0.74 £0.62
73	MKA-16570 Available to backorder	Cutter Chain 16.5	£441.02 £367.52
74	MK325330-1 Available to backorder	Head Shaft	£2.46 £2.05
75	MK133571-3 Available to backorder	Chain Bar Ass'y F/15-24mm (INC. 74 76-78)	£226.30 £188.58
76	MK211076-4 Available to backorder	Ball Bearing 1008Ll	£7.96 £6.63
77	MK943152-3 Available to backorder	Toothed Lock Washer 6	£0.48 £0.40
78	MK251258-6 Available to backorder	+ Countersunk Head Screw	£0.58 £0.48
79	MK211106-1 Available to backorder	Ball Bearing 6201Llb	£8.66 £7.22
80	MK213102-5 Available to backorder	Dust Seal 12	£0.74 £0.62
81	MK241513-4 Available to backorder	Fan 92	£2.46 £2.05
82	MK516939-2 Available to backorder	Armature Ass'y 240V	£81.92 £68.27
83	MK213051-6 Available to backorder	Dust Seal 10	£0.86 £0.72
84	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
84	MK211066-7 Available to backorder	Ball Bearing 6200Llb	£5.48 £4.57
84	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
86	MK524569-5 Available to backorder	Field Ass'y 240V	£50.72 £42.27
87	MK254001-2 Available to backorder	Woodruff Key 4	£0.74 £0.62
88	MK911300-2 Available to backorder	Pan Head Screw M5x75	£1.32 £1.10
89	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
90	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
91	MK931502-4 Available to backorder	Hex. Nut M10	£1.16 £0.97
94	MK257017-6 Available to backorder	Ring 15	£1.74 £1.45
95	MK221501-7 Available to backorder	Sprocket 4	£21.78 £18.15
96	MK211311-0 Available to backorder	Ball Bearing 6304Llb	£10.40 £8.67
97	MK321373-1 Available to backorder	Spindle	£21.96 £18.30
98	MK221671-2 Available to backorder	Helical Gear 47	£16.34 £13.62
99	MK253197-6 Available to backorder	Flat Washer 10	£0.48 £0.40
100	MK212066-0 Available to backorder	Needle Bearing 1015	£11.42 £9.52
101	MK133014-5 Available to backorder	Lever 98 Ass'y (INC. 126)	£6.52 £5.43
102	MK265235-2 Available to backorder	Hex. Bolt M12x34	£3.62 £3.02
103	MK319050-7 Available to backorder	Vise Element <	£69.48 £57.90
104	MK321380-4 Available to backorder	Screw M14	£18.78 £15.65
106	MK253180-3 Available to backorder	Flat Washer 10	£0.58 £0.48
107	MK231287-5 Available to backorder	Compression Spring 10	£2.18 £1.82
109	MK253808-3 Available to backorder	Flat Washer 9 (C10) (Refs 118 \| 120 \| 135)	£0.86 £0.72
109	MK257075-2 Available to backorder	Ring 9 (C20)	£2.32 £1.93
109	MK154282-7 Available to backorder	Lever B Complete	£34.38 £28.65
110	MK921421-2 Available to backorder	Hex. Bolt M8x16	£1.32 £1.10
111	MK341587-6 Available to backorder	Stopper	£1.74 £1.45
112	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
113	MK271610-2 Available to backorder	Knob 40	£2.02 £1.68
114	MK341569-8 Available to backorder	Clamp Lever	£13.74 £11.45
115	MK256106-4 Available to backorder	Pin 9	£3.34 £2.78
119	MK256623-4 Available to backorder	Pin 9	£3.34 £2.78
121	MK257561-3 Available to backorder	Sleeve 9	£3.62 £3.02
122	MK231746-9 Available to backorder	Tension Spring 9	£1.60 £1.33
123	MK951110-5 Available to backorder	Spring Pin 4-16	£0.48 £0.40
124	MK321381-2 Available to backorder	Slide Bar	£31.06 £25.88
125	MK951163-4 Available to backorder	Spring Pin 5-20	£0.48 £0.40
126	MK911207-2 Available to backorder	Pan Head Screw M5x10	£0.58 £0.48
127	MK321382-0 Available to backorder	Guide Pole	£11.26 £9.38
128	MK231286-7 Available to backorder	Compression Spring 36	£5.20 £4.33
129	MK231285-9 Available to backorder	Compression Spring 48	£8.08 £6.73
130	MK319049-2 Available to backorder	Vise Shoe <	£16.76 £13.97
131	MK321232-9 Available to backorder	Vise Shaft	£3.04 £2.53
132	MK253011-6 Available to backorder	Flat Washer 6	£0.48 £0.40
133	MK911356-5 Available to backorder	Pan Head Screw M6x35	£0.58 £0.48
134	MK951166-8 Available to backorder	Spring Pin 5-24	£0.48 £0.40
136	MK319053-1 Available to backorder	Front Vice <	£117.86 £98.22
137	MK257562-1 Available to backorder	Sleeve 9	£3.62 £3.02
140	MK961012-7 Available to backorder	Stop Ring E-6	£0.48 £0.40
141	MK133201-6 Available to backorder	Handle Ass'y	£9.24 £7.70
142	MK271607-1 Available to backorder	Knob 20	£0.58 £0.48
143	MK256614-5 Available to backorder	Pin 8	£0.58 £0.48
145	MK951184-6 Available to backorder	Spring Pin 5-50	£0.74 £0.62
146	MK345600-2 Available to backorder	Handle Stay	£14.88 £12.40
147	MK419064-7 Available to backorder	Handle	£29.46 £24.55
148	MK419065-5 Available to backorder	Handle Cover	£29.46 £24.55
149	MK646353-9 Available to backorder	Line Coil (Alt.)	£11.56 £9.63
149	MK646346-6 Available to backorder	Line Coil	£31.06 £25.88
150	MK654571-5 Available to backorder	Terminal Block	£1.32 £1.10
151	MK266192-7 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
153	MK911218-7 In stock	Pan Head Screw M5x14	£0.48 £0.40
404	MK199897-3 Available to backorder	Oil Vessel Set (Alt.) (INC. 405)	£6.12 £5.10
405	MK242012-9 Available to backorder	Oil Supply Nozzle	£0.48 £0.40
406	MK781204-0 Available to backorder	Wrench 13-17	£4.42 £3.68
708	MK689055-4 Available to backorder	Ring Terminal Retainer 15.5	£0.54 £0.45
