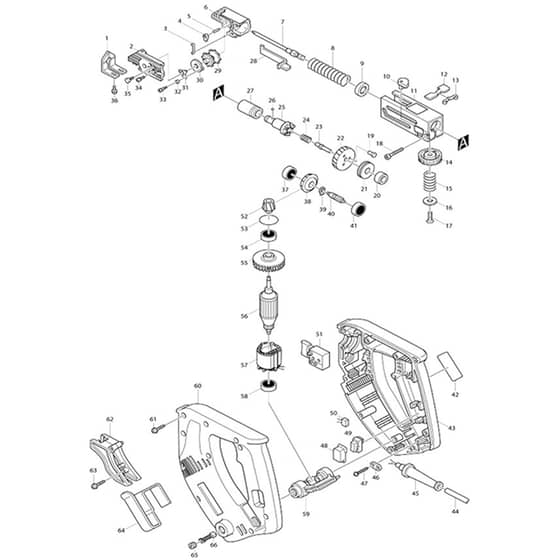

Makita 6832 - Auto Feed Screwdriver - Power Tool Diagram

Description

Model No. 6832

Auto Feed Screwdriver

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK344237-2 Available to backorder	Stopper Base	£9.12 £7.60
2	MK256254-9 Available to backorder	Pin 3 (C11) (Refs 005 \| C10)	£0.48 £0.40
2	MK152502-3 Available to backorder	Box Cover Complete S	£8.66 £7.22
3	MK232132-7 Available to backorder	Leaf Spring	£2.32 £1.93
4	MK311923-0 Available to backorder	Stopper	£9.40 £7.83
6	MK152501-5 Available to backorder	Feeder Box Complete S	£6.22 £5.18
8	MK233141-9 Available to backorder	Compression Spring 21	£1.60 £1.33
9	MK421467-3 Available to backorder	Dust Cover	£1.16 £0.97
10	MK310008-9 Available to backorder	Shifter Pin	£18.78 £15.65
11	MK150564-5 Available to backorder	Casing Complete	£109.64 £91.37
11	MK816282-2 Available to backorder	Indication Label (C10)	£0.58 £0.48
12	MK344306-9 Available to backorder	Slide Plate	£2.60 £2.17
13	MK232152-1 Available to backorder	Leaf Spring	£2.02 £1.68
14	MK415829-5 Available to backorder	Knob 40	£3.34 £2.78
15	MK233089-5 Available to backorder	Compression Spring 12	£0.54 £0.45
16	MK267117-4 Available to backorder	Flat Washer 6	£1.44 £1.20
17	MK912117-6 Available to backorder	Countersunk Head Screw M4x12	£0.48 £0.40
18	MK922146-1 Available to backorder	Hex. Socket Head Bolt M4x25	£0.58 £0.48
19	MK256467-2 Available to backorder	Shoulder Pin 4 (Alt.)	£1.44 £1.20
20	MK214028-4 Available to backorder	Plane Bearing 8	£1.32 £1.10
21	MK212042-4 Available to backorder	Thrust Needle Bearing 821	£8.54 £7.12
22	MK226454-5 Available to backorder	Helical Gear 59	£42.62 £35.52
23	MK256699-1 Available to backorder	Pin 8	£6.52 £5.43
24	MK233126-5 Available to backorder	Compression Spring 6	£0.74 £0.62
25	MK223109-3 Available to backorder	Spindle	£34.38 £28.65
26	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
27	MK214164-6 Available to backorder	Plane Bearing 14	£11.14 £9.28
28	MK165154-1 Available to backorder	Plate	£6.52 £5.43
29	MK311921-4 Available to backorder	Ratchet Wheel	£53.16 £44.30
30	MK311976-9 Available to backorder	Ratchet Disc	£31.06 £25.88
31	MK232133-5 Available to backorder	Leaf Spring	£2.60 £2.17
32	MK257664-3 Available to backorder	Sleeve 4	£3.04 £2.53
33	MK265036-8 Available to backorder	+ Flat Head Screw M3x5	£5.94 £4.95
34	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
35	MK922132-2 Available to backorder	Hex. Socket Head Bolt M4x18 (Alt.)	£0.48 £0.40
35	MK922107-1 Available to backorder	Hex. Socket Head Bolt M4x8 (Refs 036 \| A02)	£0.48 £0.40
37	MK211014-6 Available to backorder	Ball Bearing 606	£8.08 £6.73
38	MK226705-6 Available to backorder	Spiral Bevel Gear 22	£40.16 £33.47
39	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
40	MK226455-3 Available to backorder	Helical Gear 9	£15.44 £12.87
43	MK182601-7 Available to backorder	Housing Set (INC. 60 67)	£56.48 £47.07
45	MK682502-4 Available to backorder	Cord Guard 8-85 (INC. 60 67)	£1.32 £1.10
46	MK687052-4 Available to backorder	Strain Relief (INC. 60 67)	£0.74 £0.62
47	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
48	MK421460-7 Available to backorder	Dust Cover	£1.74 £1.45
48	MK421621-9 Available to backorder	Dust Cover (Alt.)	£1.32 £1.10
49	MK651556-2 Available to backorder	Switch Vlx11	£10.56 £8.80
50	MK645173-8 Available to backorder	Noise Suppressor	£5.94 £4.95
51	MK651272-6 Available to backorder	Switch Sgel106Cv-1	£32.80 £27.33
52	MK226704-8 Available to backorder	Spiral Bevel Gear 15	£34.38 £28.65
53	MK213008-7 Available to backorder	O Ring 22.4 (Alt.)	£0.74 £0.62
53	MK213380-7 Available to backorder	O Ring 24 < (Alt.)	£0.74 £0.62
54	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
55	MK241869-5 Available to backorder	Fan 55	£4.20 £3.50
58	MK210025-8 Available to backorder	Ball Bearing 627Llb (Alt.)	£2.46 £2.05
59	MK643917-0 Available to backorder	Brush Holder (C10)	£3.54 £2.95
59	MK643932-4 Available to backorder	Brush Holder 6x9 (Alt.) (C11)	£2.02 £1.68
59	MK152433-6 Available to backorder	Holder Arm Cpmplete	£17.92 £14.93
61	MK266045-0 Available to backorder	Tapping Screw 4x20	£0.48 £0.40
62	MK415352-0 Available to backorder	Screw Guide	£7.08 £5.90
64	MK344056-6 Available to backorder	Hook	£15.18 £12.65
65	MK643550-8 Available to backorder	Brush Holder Cap 5-8	£0.58 £0.48
66	MK195010-1 Available to backorder	Carbon Brush Set Cb-411 (Alt.)	£3.16 £2.63
67	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
901	MK344054-0 Available to backorder	Stopper Plate (A01)	£7.80 £6.50
901	MK188319-8 Available to backorder	Casing Set S (B01A)	£196.54 £163.78
902	MK182858-0 Available to backorder	Feeder Box Set (B02A)	£70.36 £58.63
904	MK783201-2 Available to backorder	Hex. Wrench 3 (A04)	£1.24 £1.03
905	MK410048-8 Available to backorder	Wrench Holder 3.4 (A05)	£1.84 £1.53
906	MK182935-8 Available to backorder	Slide Latch (R.L) Set (C10)	£1.54 £1.28
