Makita 6821 - Drywall Screwdriver - Power Tool Diagram

Description

Model No. 6821

Drywall Screwdriver

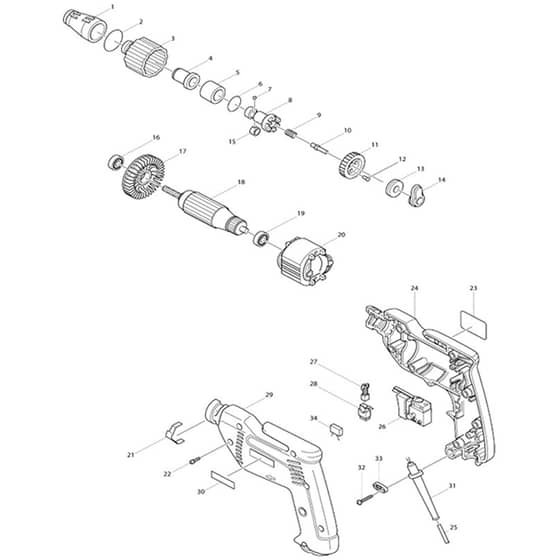

Power Tool Parts Diagrams

	Part No.	Details
1	MK152483-1 Available to backorder	Locator Complete 1/4"	£3.12 £2.60
2	MK213373-4 Available to backorder	O Ring 22 (Alt.)	£1.58 £1.32
5	MK214154-9 Available to backorder	Plane Bearing 14	£2.83 £2.36
6	MK421392-8 Available to backorder	Ring 20	£1.58 £1.32
7	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
8	MK223107-7 Available to backorder	Spindle	£23.76 £19.80
9	MK233126-5 Available to backorder	Compression Spring 6	£0.89 £0.74
10	MK256699-1 Available to backorder	Pin 8	£6.72 £5.60
11	MK226444-8 Available to backorder	Helical Gear 46	£24.48 £20.40
12	MK256467-2 Available to backorder	Shoulder Pin 4 (Alt.)	£1.73 £1.44
13	MK212047-4 Available to backorder	Thrust Needle Bearing 821	£5.64 £4.70
15	MK232050-9 Available to backorder	Leaf Spring	£0.70 £0.58
16	MK211031-6 Available to backorder	Ball Bearing 608Llb	£3.72 £3.10
17	MK241881-5 Available to backorder	Fan 52	£8.40 £7.00
19	MK211028-5 Available to backorder	Ball Bearing 627Lb	£10.92 £9.10
22	MK911138-5 Available to backorder	P.H.Screw M4x20 With Wr	£0.48 £0.40
24	MK931102-0 Available to backorder	Hex. Nut M4 (C10)	£0.70 £0.58
25	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0 (INC. 16 17 19)	£17.76 £14.80
26	MK651987-5 Available to backorder	Switch x (INC. 16 17 19) (Refs 026A2 \| 026A3)	£20.76 £17.30
26	MK651986-7 Available to backorder	Switch Tg803Tlb-1 (Alt.) (INC. 16 17 19)	£24.48 £20.40
27	MK191962-4 Available to backorder	Carbon Brush Cb-419 (INC. 16 17 19)	£5.40 £4.50
27	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.) (INC. 16 17 19)	£5.04 £4.20
28	MK643923-5 Available to backorder	Brush Holder	£1.73 £1.44
28	MK643936-6 Available to backorder	Brush Holder (Alt.)	£1.39 £1.16
30	MK819063-3 Available to backorder	Makita Label	£1.39 £1.16
31	MK682502-4 Available to backorder	Cord Guard 8-85	£1.58 £1.32
32	MK265A48-7 Available to backorder	Tapping Screw 4x18 <	£0.48 £0.40
32	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
33	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
34	MK645253-0 Available to backorder	Noise Suppressor	£4.80 £4.00
901	MK784811-8 Available to backorder	Magnetic Connect Bit 6.35-6 (A01-1)	£5.52 £4.60
902	MK784211-2 Available to backorder	Phillips Insert Bit 2-25 (A02)	£1.46 £1.22
903	MK654015-5 Available to backorder	Earth Terminal (E03)	£0.48 £0.40
904	MK654501-6 Available to backorder	Connector P-1.25 (E04)	£0.48 £0.40
904	MK654555-3 Available to backorder	Connector 34130 (Alt.) (E04-1)	£0.48 £0.40
905	MK646068-8 Available to backorder	Choke Coil (E05)	£2.83 £2.36
906	MK646090-5 Available to backorder	Choke Coil (E06)	£1.63 £1.36
