Makita 6807 - 2-Speed Screw Driver - Power Tool Diagram

Description

Model No. 6807

2-Speed Screw Driver

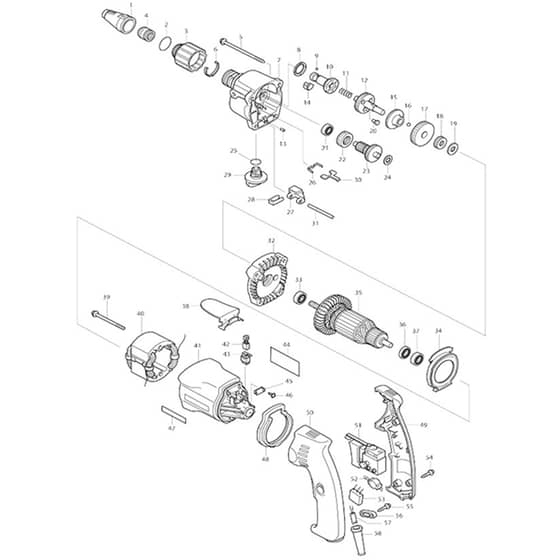

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK152483-1 Available to backorder	Locator Complete 1/4"	£3.00 £2.50
2	MK213373-4 Available to backorder	O Ring 22 (Alt.)	£1.32 £1.10
3	MK416670-9 Available to backorder	Lock Ring	£5.06 £4.22
4	MK421631-6 Available to backorder	Dust Seal Ring	£1.44 £1.20
5	MK266056-5 Available to backorder	Tapping Screw 5x45	£0.86 £0.72
6	MK232154-7 Available to backorder	Leaf Spring	£3.04 £2.53
7	MK213154-6 Available to backorder	O Ring 14 (Alt.) (C10)	£0.58 £0.48
7	MK263002-9 Available to backorder	Rubber Pin 4 (C20)	£0.48 £0.40
7	MK150944-5 Available to backorder	Gear Housing Complete	£56.48 £47.07
8	MK421392-8 Available to backorder	Ring 20	£1.32 £1.10
9	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
10	MK223126-3 Available to backorder	Spindle A	£21.96 £18.30
11	MK233232-6 Available to backorder	Compression Spring 6	£1.32 £1.10
12	MK153261-2 Available to backorder	Gear Complete	£34.38 £28.65
13	MK256226-4 Available to backorder	Pin 4	£0.58 £0.48
14	MK232050-9 Available to backorder	Leaf Spring	£0.58 £0.48
15	MK226375-1 Available to backorder	Spur Gear 34	£13.58 £11.32
16	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
17	MK226374-3 Available to backorder	Spur Gear 44	£12.86 £10.72
18	MK212042-4 Available to backorder	Thrust Needle Bearing 821	£8.54 £7.12
19	MK261111-8 Available to backorder	Urethane Washer 8	£0.74 £0.62
20	MK256467-2 Available to backorder	Shoulder Pin 4 (Alt.)	£1.44 £1.20
21	MK211014-6 Available to backorder	Ball Bearing 606	£8.08 £6.73
22	MK226372-7 Available to backorder	Spur Gear 23	£7.96 £6.63
23	MK153262-0 Available to backorder	Gear Complete 13-36	£34.38 £28.65
24	MK253865-1 Available to backorder	Flat Washer 8	£0.74 £0.62
25	MK213162-7 Available to backorder	O Ring 14 (Alt.)	£0.74 £0.62
26	MK232143-2 Available to backorder	Leaf Spring	£0.86 £0.72
27	MK416671-7 Available to backorder	Rack 7	£2.46 £2.05
28	MK344668-5 Available to backorder	Change Palte	£1.60 £1.33
29	MK416669-4 Available to backorder	Change Lever	£3.46 £2.88
30	MK344178-2 Available to backorder	Lock Plate	£0.86 £0.72
31	MK256268-8 Available to backorder	Pin 4	£1.44 £1.20
32	MK150945-3 Available to backorder	Gear Housing Cover Comple	£34.38 £28.65
33	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
34	MK413073-8 Available to backorder	Baffle Plate	£2.18 £1.82
34	MK241850-6 Available to backorder	Fan 60 (C10)	£2.32 £1.93
36	MK681614-0 Available to backorder	Insulation Washer	£0.58 £0.48
37	MK210025-8 Available to backorder	Ball Bearing 627Llb	£2.46 £2.05
38	MK344669-3 Available to backorder	Hook	£6.52 £5.43
39	MK266052-3 Available to backorder	Tapping Screw 4x60	£0.86 £0.72
41	MK415601-5 Available to backorder	Motor Housing	£21.96 £18.30
42	MK191962-4 Available to backorder	Carbon Brush Cb-419	£5.68 £4.73
42	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£4.92 £4.10
43	MK643923-5 Available to backorder	Brush Holder	£1.44 £1.20
44	MK851461-5 Available to backorder	Name Plate 6807	£1.44 £1.20
45	MK415622-7 Available to backorder	Brush Holder Plate	£0.58 £0.48
46	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
47	MK819063-3 Available to backorder	Makita Label	£1.16 £0.97
48	MK421630-8 Available to backorder	Cushion Rubber	£2.02 £1.68
49	MK183047-0 Available to backorder	Handle Set	£16.34 £13.62
51	MK651986-7 Available to backorder	Switch Tg803Tlb-1 (Alt.)	£23.68 £19.73
51	MK651987-5 Available to backorder	Switch x	£20.08 £16.73
53	MK645253-0 Available to backorder	Noise Suppressor	£4.62 £3.85
54	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
56	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
58	MK682502-4 Available to backorder	Cord Guard 8-85	£1.32 £1.10
902	MK784261-7 Available to backorder	+Bit 2-25 (Alt.) (A02-1)	£0.48 £0.40
902	MK784211-2 Available to backorder	Phillips Insert Bit 2-25 (A02)	£1.22 £1.02
903	MK784638-6 Available to backorder	Hex. Bit 5-75 (A03)	£2.00 £1.67
903	MK784804-5 Available to backorder	Magnetic Socket Bit 5/16-65 (E03)	£22.62 £18.85
904	MK784811-8 Available to backorder	Magnetic Connect Bit 6.35-6 (A04-1)	£5.32 £4.43
905	MK182935-8 Available to backorder	Slide Latch (R.L) Set (C10)	£1.54 £1.28
905	MK417496-2 Available to backorder	Latch (C10)	£2.76 £2.30
905	MK824608-4 Available to backorder	Plastic Carrying Case (Alt.) (A05-1)	£37.08 £30.90
905	MK417497-0 Available to backorder	Handle (C20)	£4.20 £3.50
905	MK819143-5 Available to backorder	Makita Label (C30)	£0.74 £0.62
