Makita 6013BR - Drill 13mm - Power Tool Diagram

Description

Model No. 6013BR

Drill 13mm

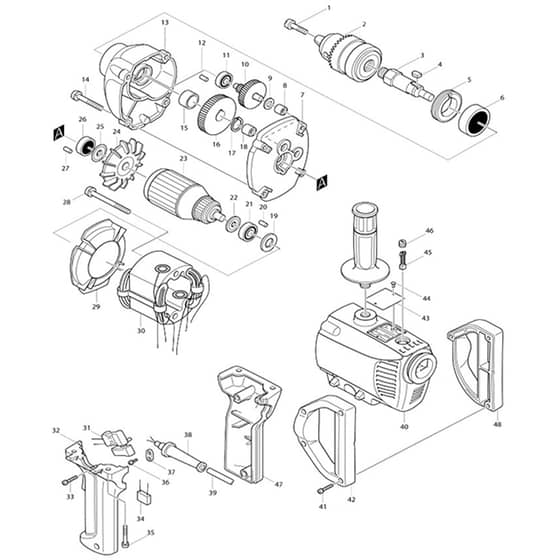

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK251425-3 Available to backorder	- Flat Head Screw M6x22	£0.58 £0.48
3	MK325494-1 Available to backorder	Spindle	£20.38 £16.98
4	MK254211-1 Available to backorder	Key 5	£1.02 £0.85
5	MK285808-5 Available to backorder	Bearing Retainer 25-36	£3.34 £2.78
6	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.62 £3.02
7	MK156972-8 Available to backorder	Gear Housing Cover	£18.78 £15.65
8	MK212012-3 Available to backorder	Needle Bearing 609	£6.52 £5.43
9	MK261008-1 Available to backorder	Fiber Washer 6	£0.48 £0.40
10	MK226028-2 Available to backorder	Gear Complete 7-41	£18.78 £15.65
11	MK211016-2 Available to backorder	Ball Bearing 626Llb	£5.64 £4.70
12	MK263002-9 Available to backorder	Rubber Pin 4 (Refs 020 \| 027)	£0.48 £0.40
13	MK156971-0 Available to backorder	Gear Housing	£25.28 £21.07
14	MK911256-9 Available to backorder	Pan Head Screw M5x35	£0.48 £0.40
15	MK257018-4 Available to backorder	Ring 15	£0.74 £0.62
16	MK221261-1 Available to backorder	Spur Gear 47	£11.72 £9.77
17	MK961054-1 Available to backorder	Retaining Ring S-14	£0.48 £0.40
18	MK212003-4 Available to backorder	Needle Bearing 810	£6.52 £5.43
19	MK253192-6 Available to backorder	Flat Washer 14	£0.48 £0.40
21	MK211033-2 Available to backorder	Ball Bearing 608Lb	£5.36 £4.47
22	MK681613-2 Available to backorder	Insulation Washer	£0.58 £0.48
24	MK241622-9 Available to backorder	Fan 62	£2.18 £1.82
25	MK213002-9 Available to backorder	Dust Seal 8	£0.74 £0.62
26	MK211031-6 Available to backorder	Ball Bearing 608Llb	£3.62 £3.02
28	MK911280-2 Available to backorder	Pan Head Screw M5x55	£1.02 £0.85
29	MK411487-5 Available to backorder	Fan Guide	£0.74 £0.62
29	MK654018-9 Available to backorder	Ring Terminal (C10)	£0.58 £0.48
29	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
31	MK651564-3 Available to backorder	Switch Sl220Sd-4	£34.38 £28.65
32	MK181163-2 Available to backorder	Switch Handle Cover Set	£11.46 £9.55
33	MK911153-9 Available to backorder	Pan Head Screw M4x28	£0.48 £0.40
34	MK645105-5 Available to backorder	Noise Suppressor	£2.18 £1.82
34	MK645206-9 Available to backorder	Noise Suppressor	£4.04 £3.37
35	MK911248-8 Available to backorder	Pan Head Screw M5x28	£0.58 £0.48
36	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
37	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
38	MK682502-4 Available to backorder	Cord Guard 8-85	£1.32 £1.10
40	MK913206-0 Available to backorder	Set Screw M5x8 (C20)	£0.48 £0.40
40	MK643556-6 Available to backorder	Brush Holder 5-8 (C10)	£3.34 £2.78
40	MK156443-5 Available to backorder	Motor Housing	£44.20 £36.83
42	MK181162-4 Available to backorder	Handle Set	£16.34 £13.62
43	MK850143-6 Available to backorder	Name Plate 6013Br <	£0.74 £0.62
44	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
45	MK194963-1 Available to backorder	Carbon Brush Set Cb-51 (Alt.)	£3.00 £2.50
46	MK643550-8 Available to backorder	Brush Holder Cap 5-8	£0.58 £0.48
50	MK819003-1 Available to backorder	Makita Label	£0.58 £0.48
400	MK763432-9 Available to backorder	Chuck Key S13	£4.54 £3.78
401	MK152492-0 Available to backorder	Grip 36 Complete	£4.38 £3.65
901	MK681625-5 Available to backorder	Insulation Washer	£0.58 £0.48
903	MK646325-4 Available to backorder	Line Coil	£12.58 £10.48
