Makita 5704R - Circular Saw 190mm - Power Tool Diagram

Description

Model No. 5704R

Circular Saw 190mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK266024-8 Available to backorder	Hex. Socket Head Bolt M6x20	£1.74 £1.45
2	MK224275-9 Available to backorder	Outer Flange 40	£10.56 £8.80
3	MK224370-5 Available to backorder	Inner Flange 40	£5.28 £4.40
4	MK961156-3 Available to backorder	Retaining Ring (Ext) S-40	£1.90 £1.58
5	MK317461-0 Available to backorder	Safety Cover	£10.32 £8.60
6	MK232468-4 Available to backorder	Tension Spring 4 <	£2.05 £1.71
6	MK231818-0 Available to backorder	Tension Spring 4	£2.05 £1.71

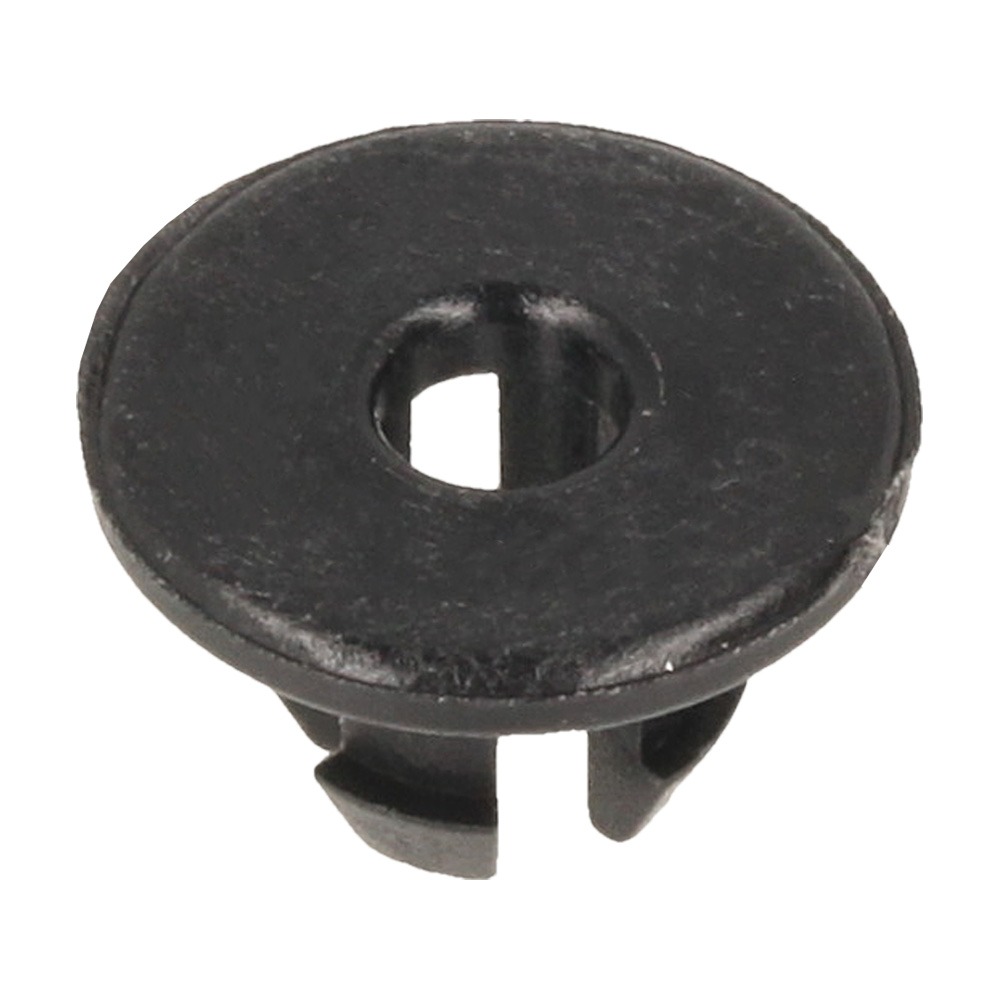

7	MK415437-2 In stock	Roller Pin 6	£0.70 £0.58

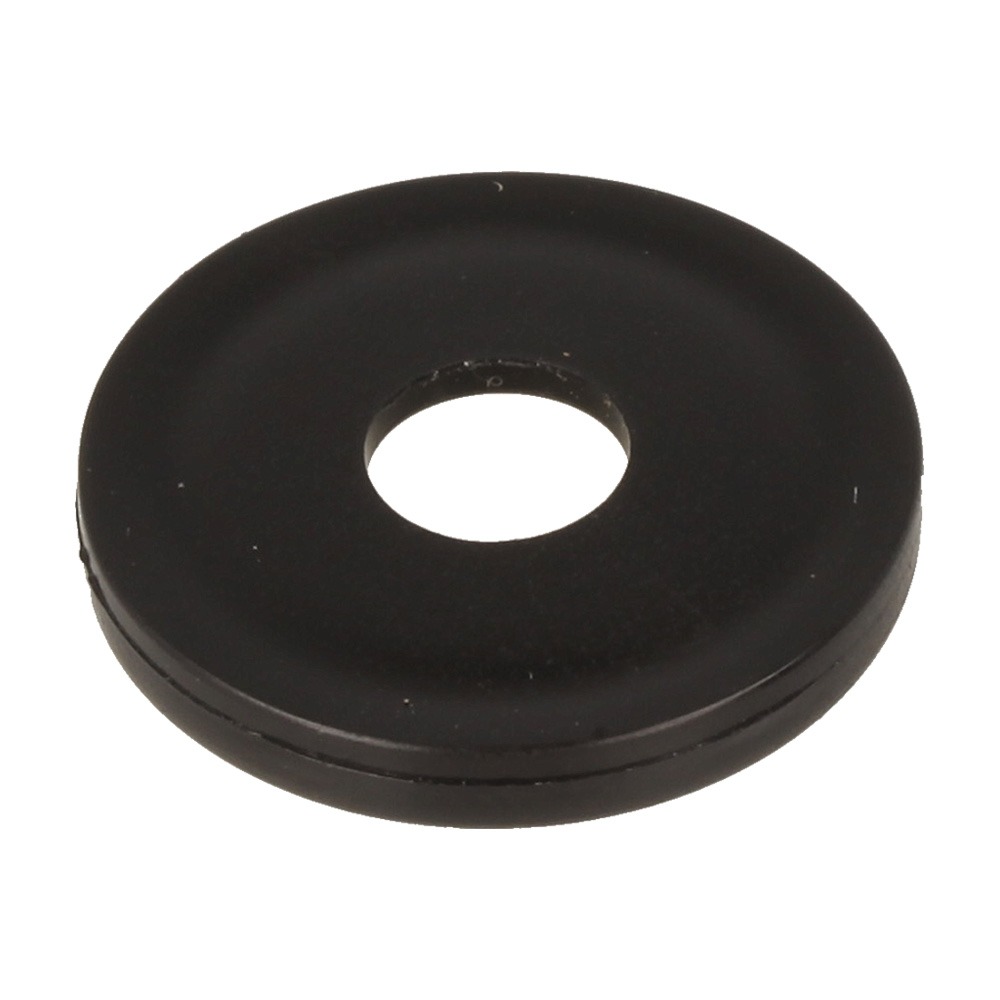

8	MK415438-0 In stock	Roller 20	£0.73 £0.61
9	MK922312-0 Available to backorder	Hex. Socket Head Bolt M6x12	£0.48 £0.40
10	MK253783-3 Available to backorder	Flat Washer 6	£0.70 £0.58
11	MK165094-3 Available to backorder	Riving Knife	£10.20 £8.50
12	MK344988-7 Available to backorder	Riving Knife Holder	£3.12 £2.60
12	MK345734-1 Available to backorder	Riving Knife Holder <	£4.20 £3.50
13	MK324110-2 Available to backorder	Spindle	£5.40 £4.50
14	MK162220-5 Available to backorder	Bearing Box Complete	£8.88 £7.40
15	MK257513-4 Available to backorder	Sleeve 12	£0.70 £0.58
16	MK911526-6 Available to backorder	Pan Head Screw M4x16 Wrm	£0.70 £0.58
17	MK226540-2 Available to backorder	Helical Gear 49	£9.00 £7.50
18	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
19	MK213620-3 Available to backorder	O-Ring 46	£0.89 £0.74
20	MK819064-1 Available to backorder	Makita Logo Label	£1.90 £1.58
21	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
23	MK317460-2 Available to backorder	Blade Case Cover (Alt.)	£22.68 £18.90
23	MK183357-5 Available to backorder	Blade Case Cover Set (INC. 20 *)	£13.92 £11.60
24	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
24	MK152810-2 Available to backorder	Blade Case Complete	£24.48 £20.40
25	MK262511-5 Available to backorder	Rubber Sleeve 6	£0.70 £0.58
26	MK233092-6 Available to backorder	Compression Spring 5	£0.48 £0.40
27	MK344990-0 Available to backorder	Shaft Lock	£1.73 £1.44
28	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.40 £7.00
29	MK241858-0 Available to backorder	Fan 70	£1.74 £1.45
30	MK516489-7 Available to backorder	Armature Assembly 220V (INC. 28 29 31 32)	£56.64 £47.20
31	MK681654-8 Available to backorder	Insulation Washer	£0.89 £0.74
33	MK421720-7 Available to backorder	Rubber Ring 22	£9.48 £7.90
34	MK417580-3 Available to backorder	Baffle Plate	£1.03 £0.86
35	MK266044-2 Available to backorder	Binding Head Tapping Screw 5x6	£2.38 £1.98
36	MK634449-8 Available to backorder	Field 220-240V	£16.92 £14.10
37	MK638070-5 Available to backorder	Support Complete	£4.80 £4.00
38	MK417579-8 Available to backorder	Handle Cover	£8.04 £6.70
39	MK645190-8 Available to backorder	Noise Suppressor (Alt.)	£0.89 £0.74
40	MK654575-7 Available to backorder	Terminal Block	£2.53 £2.11
41	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x1	£0.48 £0.40
42	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
42	MK687124-5 Available to backorder	Strain Relief (Alt.)	£0.48 £0.40
44	MK682574-9 Available to backorder	Cord Guard 10 (Alt.)	£1.39 £1.16
44	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.58 £1.32
45	MK651291-2 Available to backorder	Switch	£10.56 £8.80
46	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.38 £1.98
46	MK152811-0 Available to backorder	Motor Housing Complete	£24.48 £20.40
48	MK853170-2 Available to backorder	Name Plate 5704R	£0.89 £0.74
49	MK194996-6 In stock	Carbon Brush Set (Alt.)	£4.24 £3.53
50	MK643750-0 Available to backorder	Holder Cap 7-11	£1.58 £1.32
51	MK911268-2 Available to backorder	Pan Head Screw M5x45 Wr	£0.89 £0.74
52	MK168353-4 Available to backorder	Base	£26.16 £21.80
53	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
54	MK265075-8 Available to backorder	Pan Head Shoulder Screw M5	£2.38 £1.98
55	MK265965-5 Available to backorder	Flat Head Square Neck Bolt M8x24	£0.89 £0.74
56	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
57	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
58	MK265701-9 In stock	Thumb Screw M6x14 (Refs 060 \| 063)	£2.21 £1.84
59	MK231316-4 Available to backorder	Compression Spring 7	£0.70 £0.58
64	MK941201-0 Available to backorder	Flat Washer 8	£0.48 £0.40
66	MK421746-9 Available to backorder	Rubber Cap	£0.89 £0.74
67	MK344989-5 Available to backorder	Lever Plate	£1.03 £0.86
68	MK341415-5 Available to backorder	Lock Plate	£0.70 £0.58
69	MK911108-4 Available to backorder	Pan Head Screw M4x8 Wr	£0.48 £0.40
70	MK931402-8 Available to backorder	Hex. Nut M8	£0.70 £0.58
71	MK257243-7 Available to backorder	Ring 12	£1.73 £1.44
72	MK261115-0 Available to backorder	Rubber Washer 13	£1.39 £1.16
901	MK417059-4 Available to backorder	Latch (C10)	£0.82 £0.68
901	MK824651-3 Available to backorder	Plastic Case x (E01-1B)	£43.80 £36.50
901	MK824606-8 Available to backorder	Plastic Case (E01B)	£33.72 £28.10
902	MK164095-8 In stock	Guide Rule (A02)	£4.61 £3.84
903	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x1 (C10)	£0.48 £0.40
903	MK192420-3 Available to backorder	Joint Set (A03)	£4.68 £3.90
904	MK783203-8 Available to backorder	Hex. Wrench 5 (A04)	£0.86 £0.72
904	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A04-1)	£0.67 £0.56
907	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A07C)	£77.40 £64.50
907	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
908	MK837807-9 Available to backorder	Inner Tray (A08C)	£11.52 £9.60
